RWT Thermal Fuse Incorporated Cement Resistors
Application
● Able to prevent inrush current for power supply circuit
● Protect circuit from overload and overheat
Features
● Reliable and prompt current breaking ability with thermal fuse integrated wirewound structure
● Standard is low smoke type with safety design
● Industry-leading anti-surge ability
● RoHS、REACH compliant

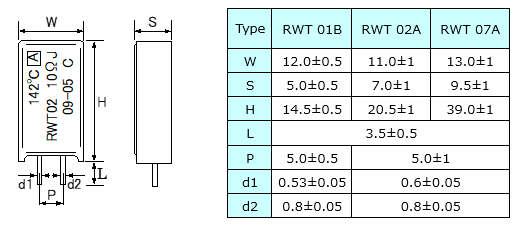

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/07/スクリーンショット-2021-11-19-094247-rwt.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/11/スクリーンショット-2021-11-19-095715-rwt4.png)

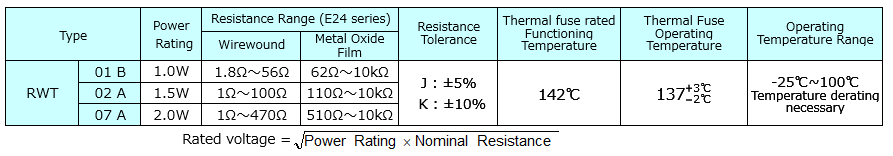

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094349-rwt2.png)

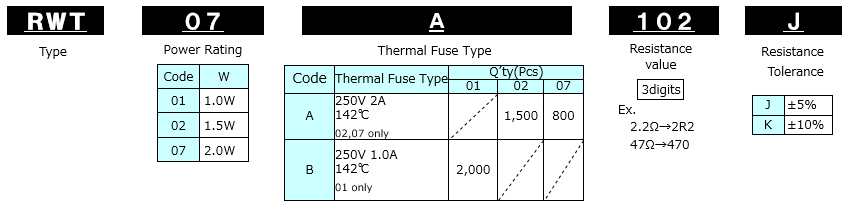

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094626-rwt3.png)

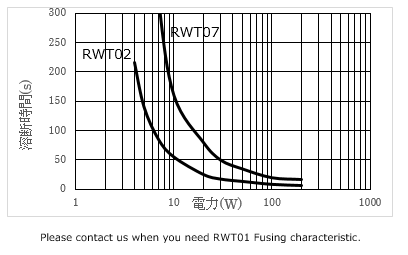

Fusing Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094803-rwt4.png)
