CFD Over Current Limiting Resistors
Application
● Circuit protection
● Toys
● LED circuit
● Adapter
Features
● Constant-current fuse resistors that open the circuit at the two-times larger than the rated current
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant

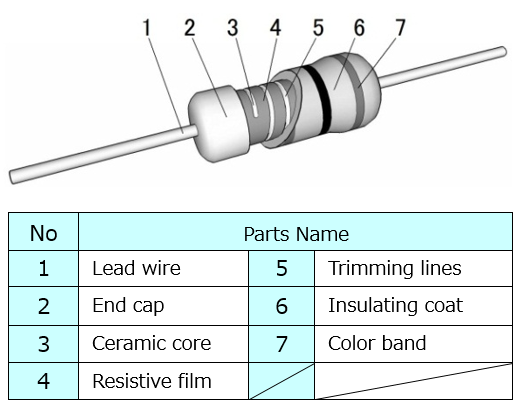

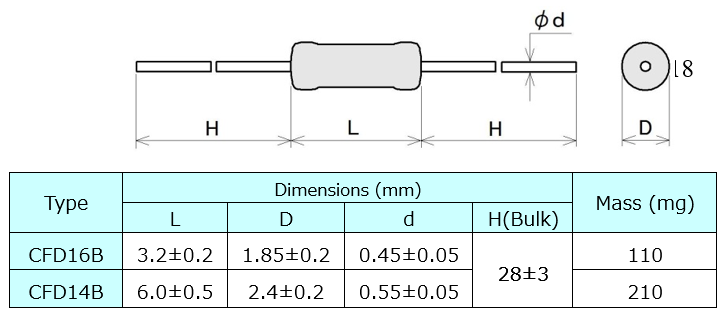

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/12/CFD-03-220120.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/12/CFD-04-220120.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CFD3.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CFD4.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CFD5.png)

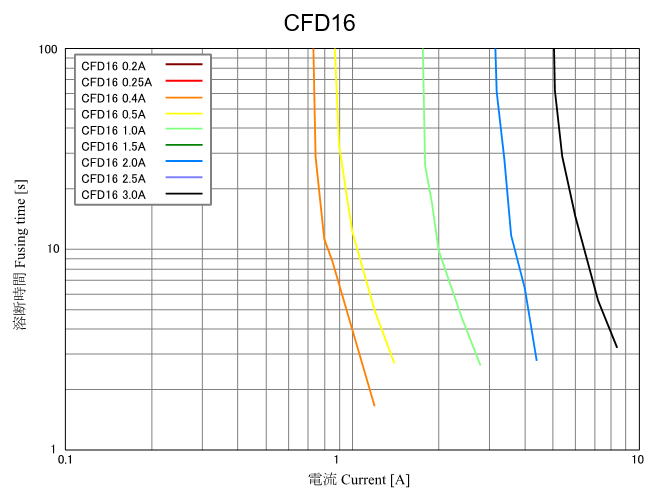

Fusing Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/12/CFD16-Fusing-chsrscteristics-example-May.2024.svg)
![](https://www.akaneohm.com/wp-content/uploads/2014/12/CFD14-Fusing-chsrscteristics-example-May.2024.svg.png)
