FRN Fixed Fusing Resistors

Application

● Circuit protection

Features

● Function as resistors under normal conditions
● Stable fusing characteristic makes it possible to open the circuit quickly at abnormal conditions.
● Coating is flame retardant grade “UL94 V-0”
● RoHS, REACH compliant

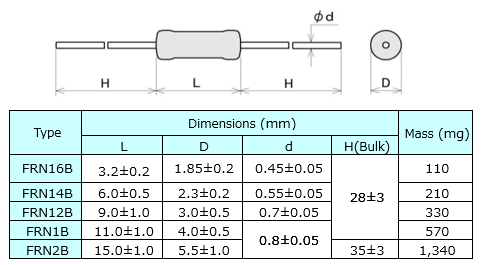

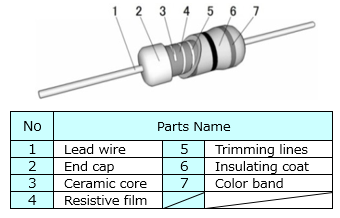

Construction・Dimensions



Specifications

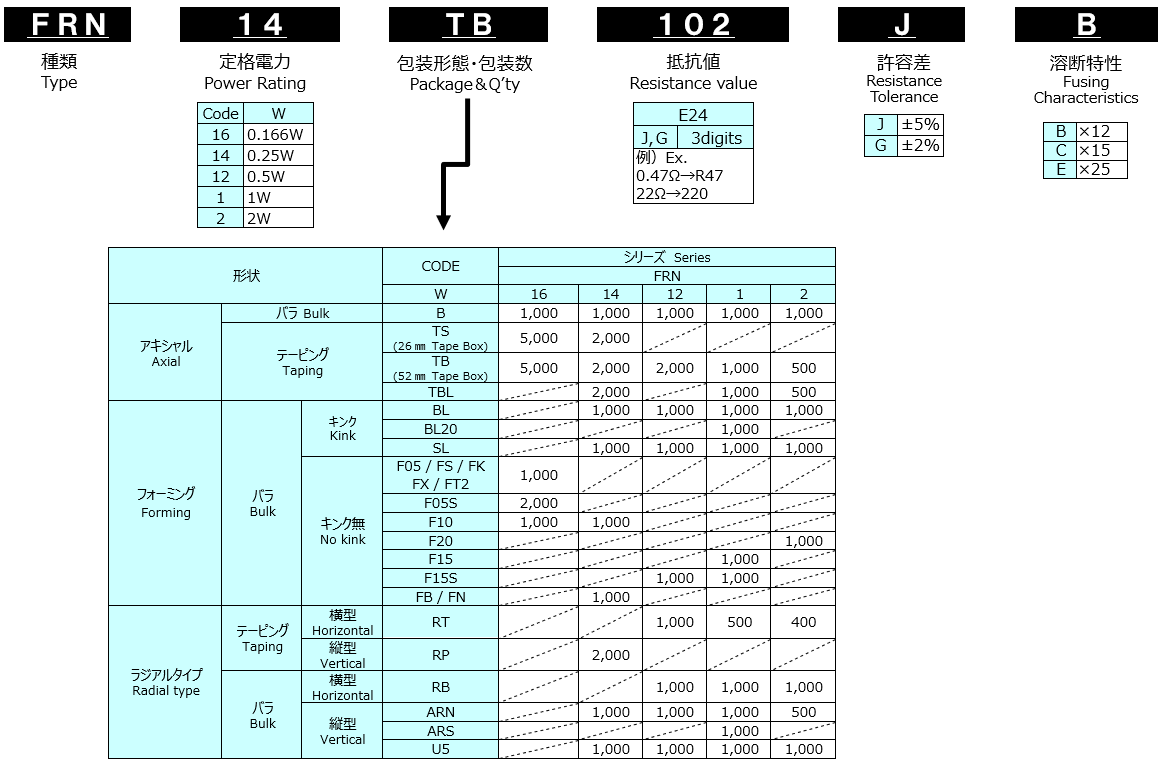

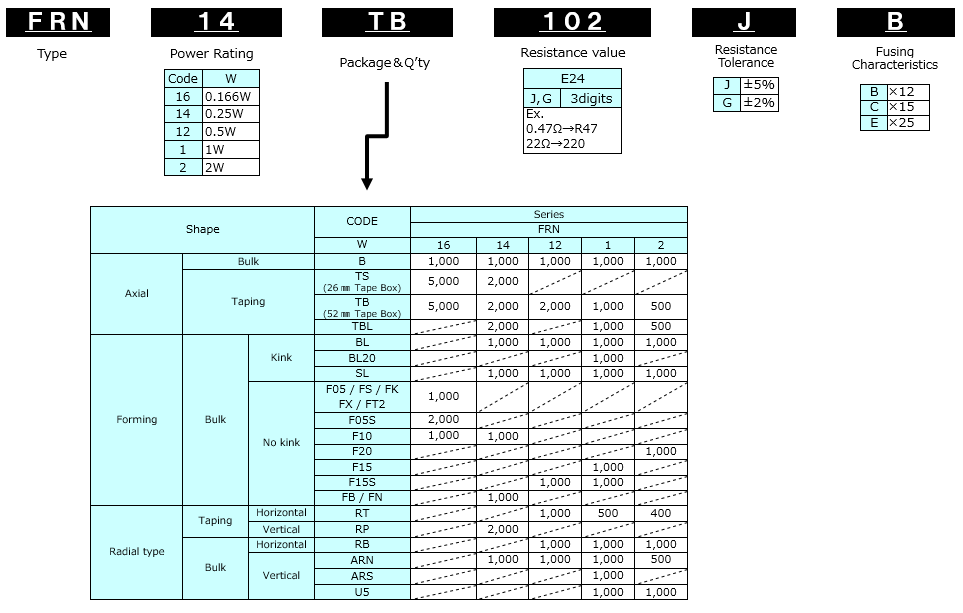

How to Code

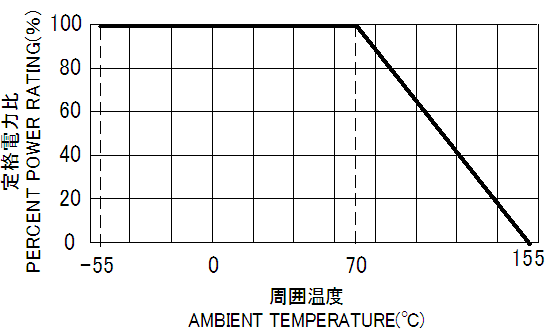

Power Derating Curve

20150721 22

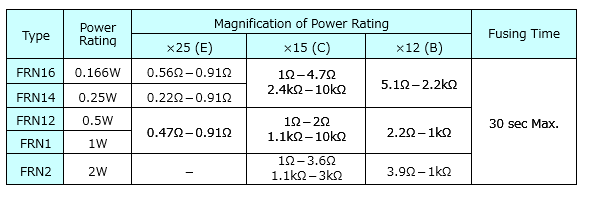

Characteristics

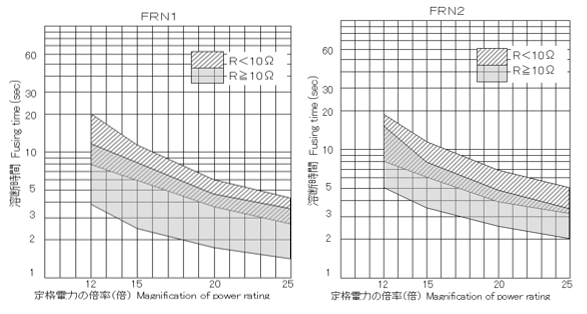

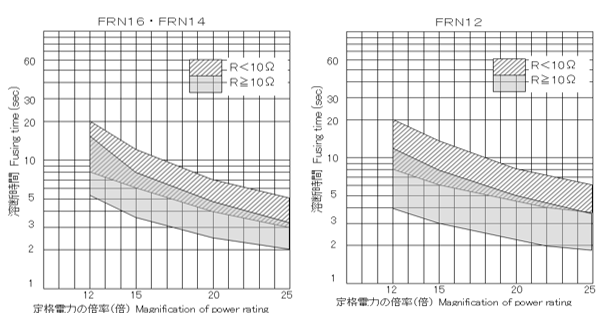

Fusing Characteristics







20150721 27
