RWF/RWFN Flameproof Miniature Type Wirewound Resistors
Application
● Current sensing
● Prevention of inrush current
Features
● Excellent ability of anti-surge and pulse resistance
● Correspond to lead forming
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant

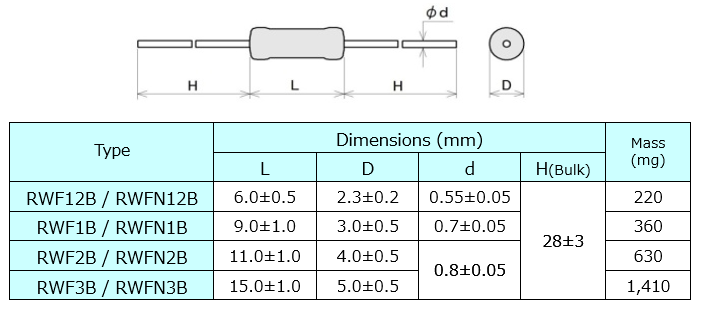

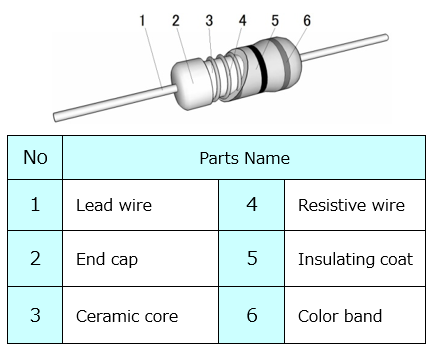

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWF-RWFN-01-220117.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWF-RWFN-02-220117.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RWF3.png)

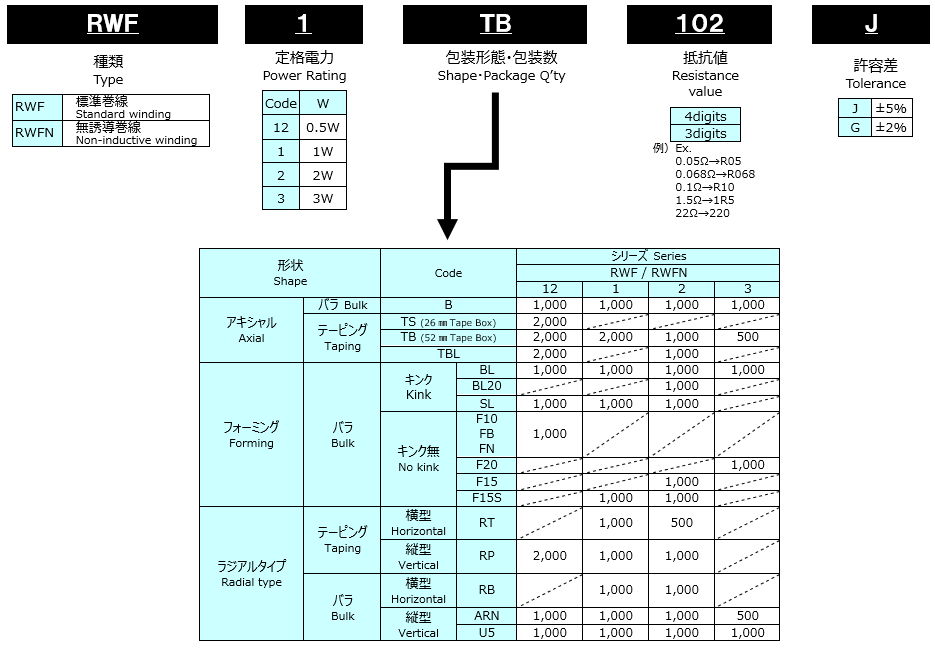

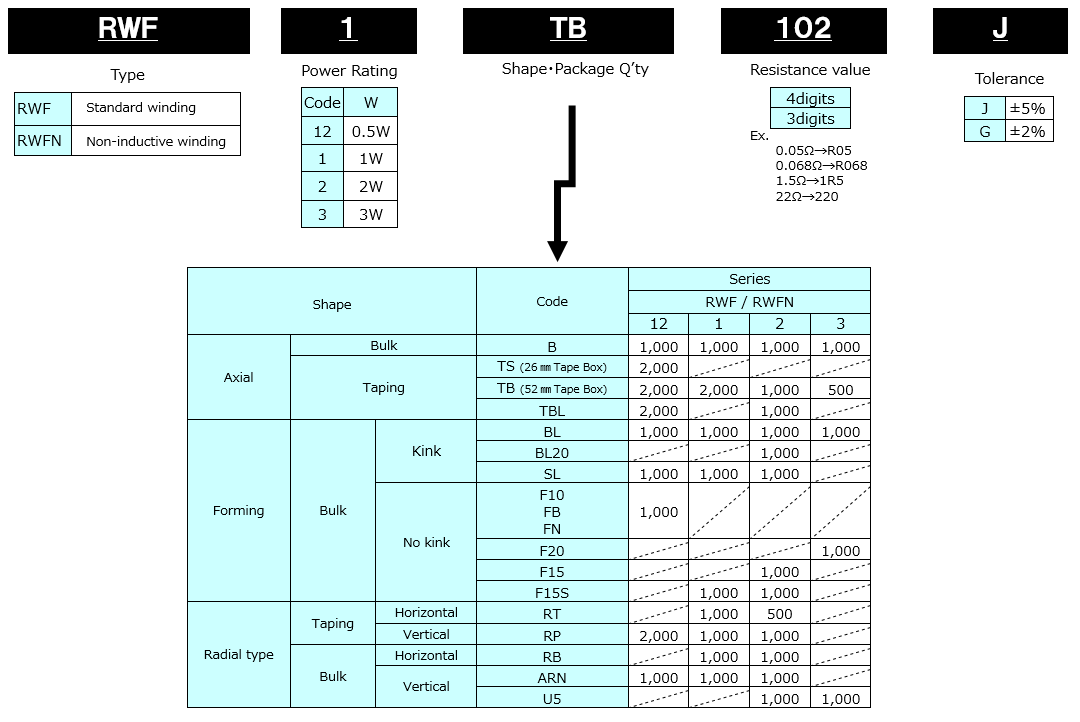

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWF-How-to-Order-20230701.png)
Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RWF5.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RWF6.png)
