RW/RWN/RWP Cement Resistors (Vertical Type)
Application
● Power type circuit
● Switching power supply
● AC adapter
Features
● RWP has an industry-leading anti-surge ability.
● Non-inductive winding type available.
● Able to prevent an explosive noise, smoke, and light emission at the open state
● RoHS, REACH compliant

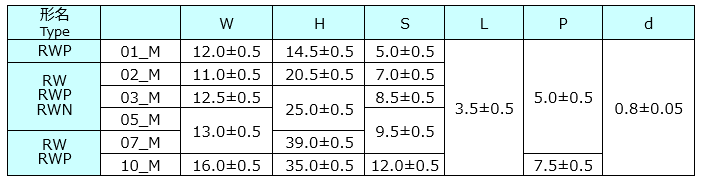

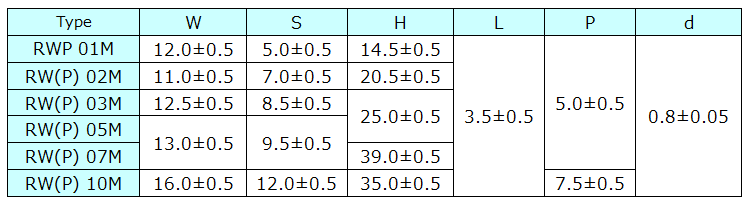

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RW1.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RW-RWN-RWP-Construvtion-Dimensions-20230808.png)

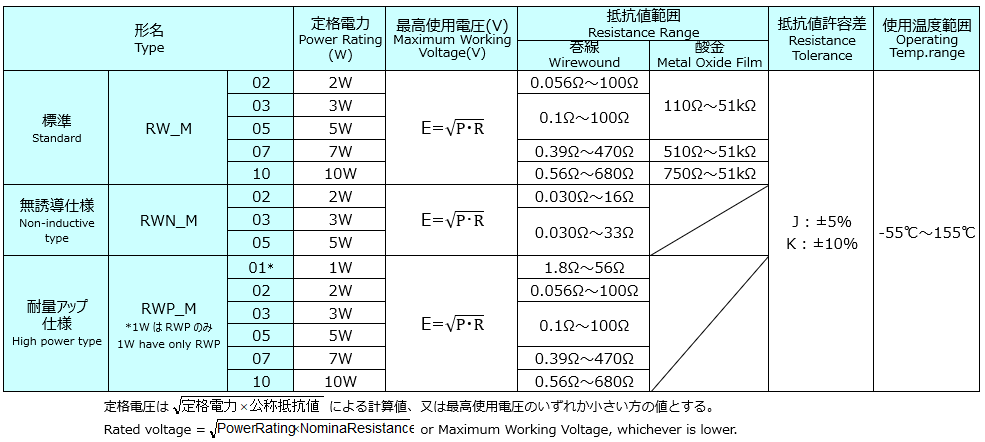

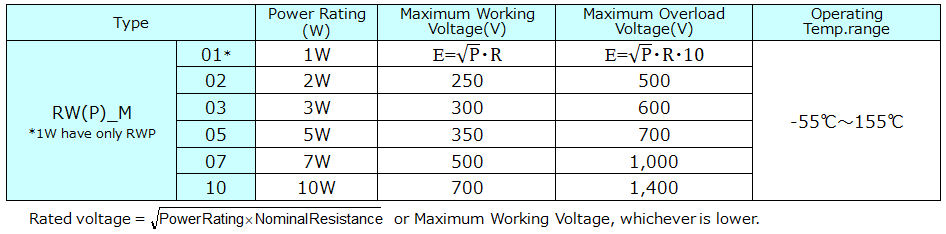

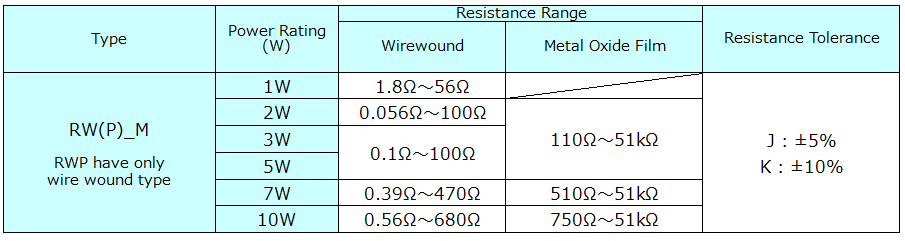

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RW-RWN-RWP-Specification-Dec.2023.png)

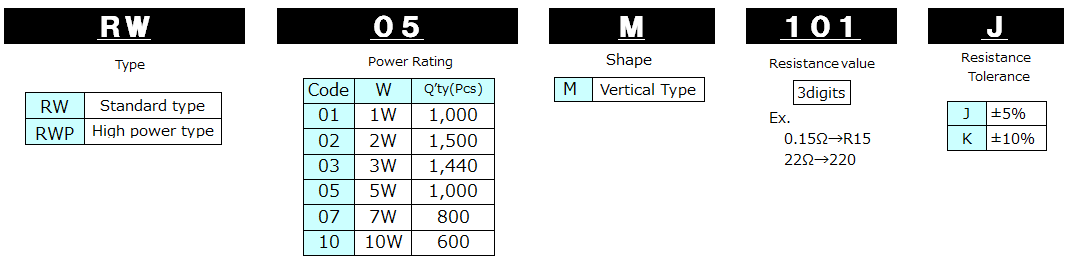

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RW20230424.png)
