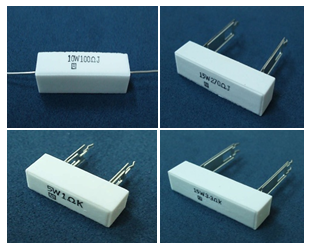

RW Cement Resistors (Horizontal Type)

Application

● For High power type circuit.
● Switching power supply.

Features

● Excellent in anti-surge ability & inrush current prevention
● Excellent in heat radiating ability
● RoHS, REACH compliant

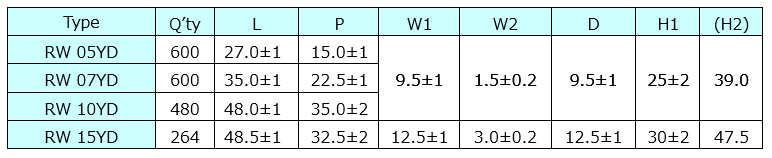

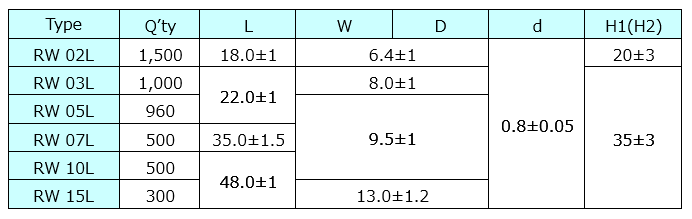

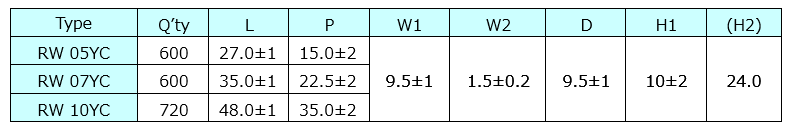

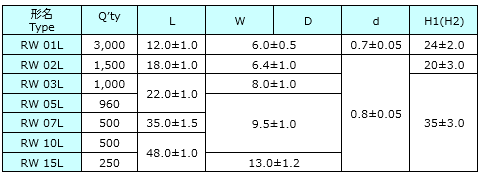

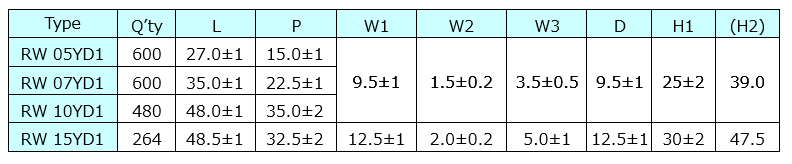

Construction・Dimensions

20150721 48

20150721 49







20150721 52



20150721 53





20150721 56



20150721 57



20150721 60

20150721 61

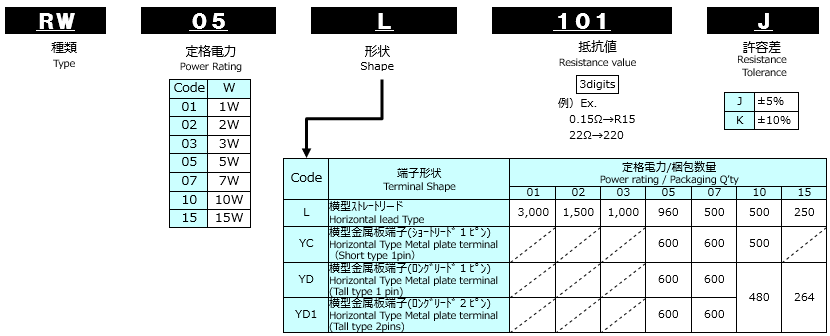

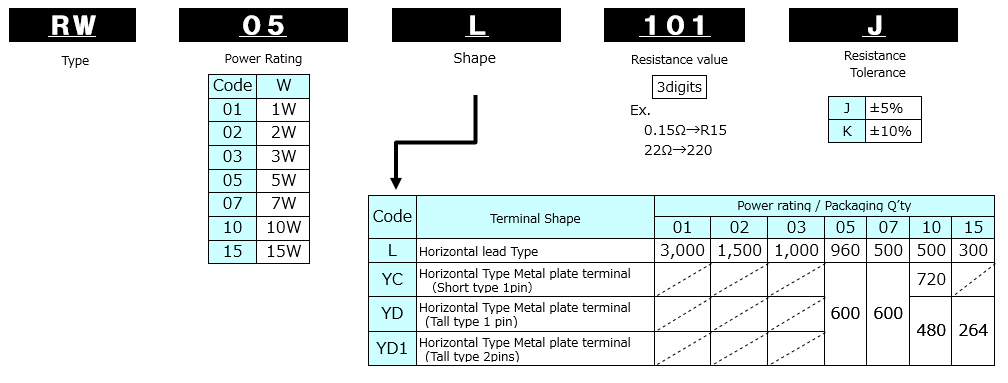

How to Code

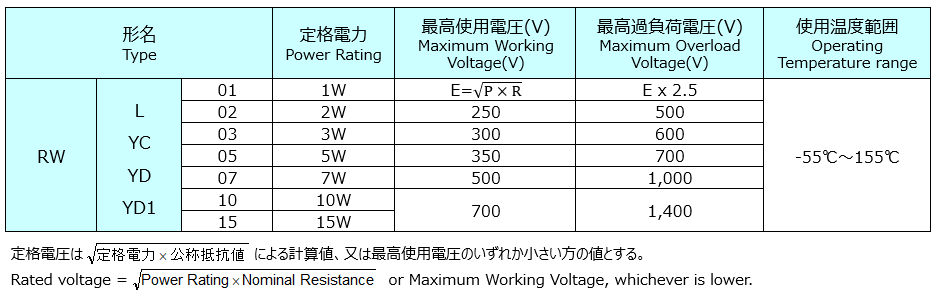

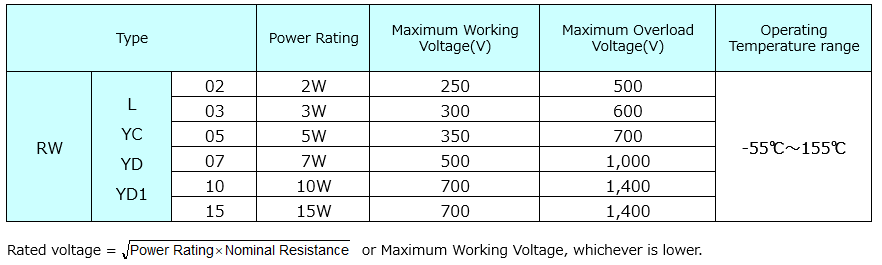

Power Rating

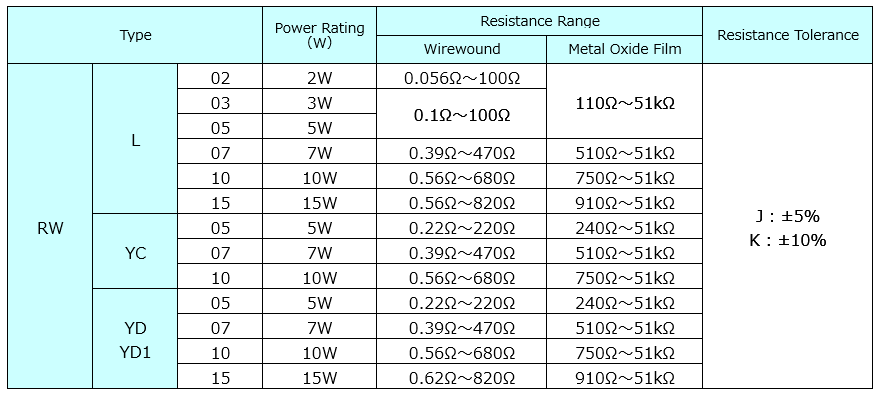

Resistance Range
