RVC Medium Voltage Thick Film Chip Resistors
Features
● Voltage ratings 2x or more compared to standard chip resistors
● Values up to 100MΩ
● Lower resistance value may be available.(Contact factory)
● Proportionally higher pulse power capability
● RoHS, Reach compliant and halogen - free

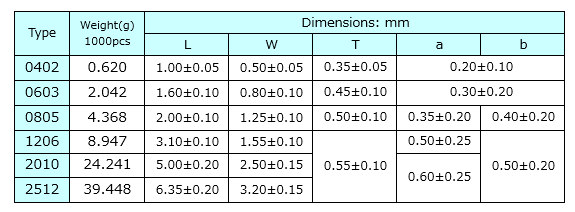

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC1-1.png)
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC2-2.png)

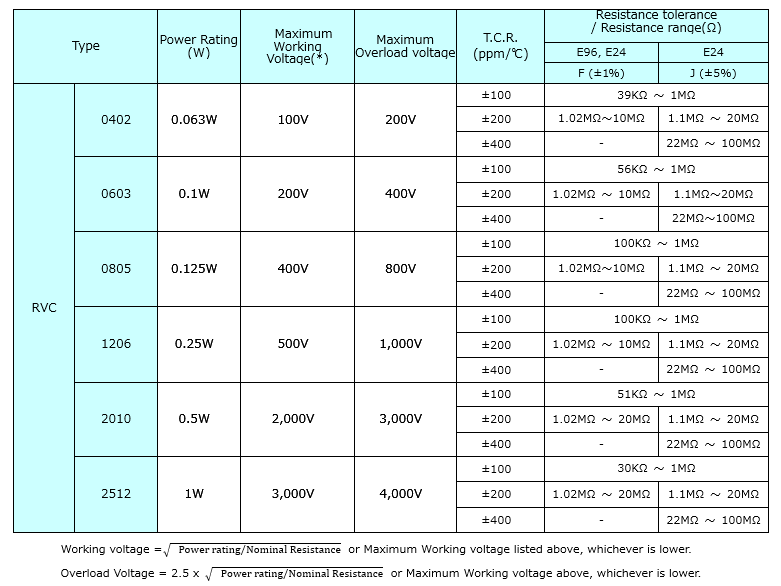

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC-001-220121.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC4-1.png)
Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC5-1.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2017/04/RVC6-1.png)
