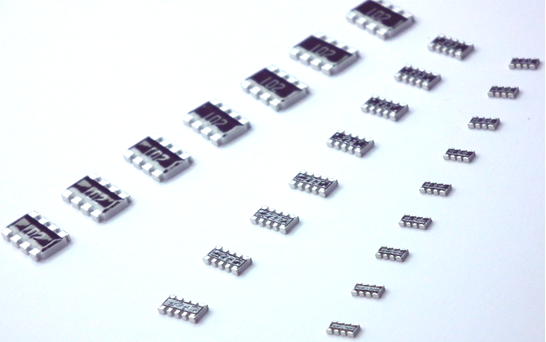

CRE-M Chip Resistors Networks (Convex Termination)  Some items are deprecated

Application

● Resistor array
● Useful as pull-up or pull-down resistor around IC

Features

● High reliability with triple layers of electrodes and metal glaze thick film resistive element
● Suitable for both flow and reflow soldering
● RoHS, REACH compliant
● AEC-Q200 Qualified

※CREA04, CREA16 will be EOL.
Please consider other alternative items.

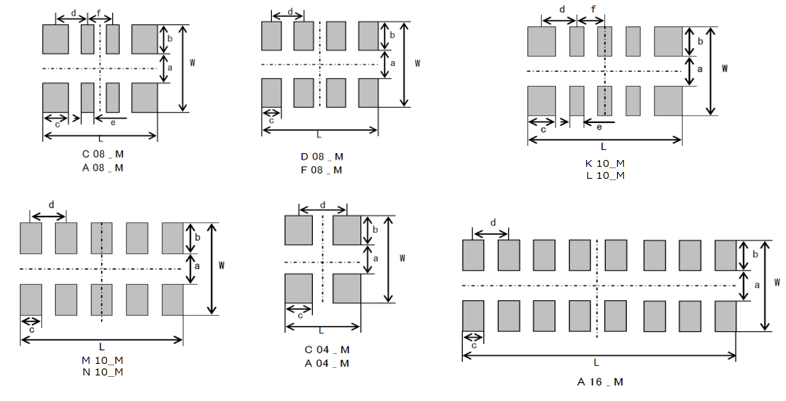

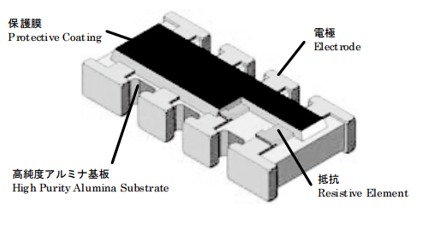

Construction・Dimensions

※CREA04, CREA16 will be EOL.
Please consider other alternative items.





※CREA04, CREA16 will be EOL.
Please consider other alternative items.

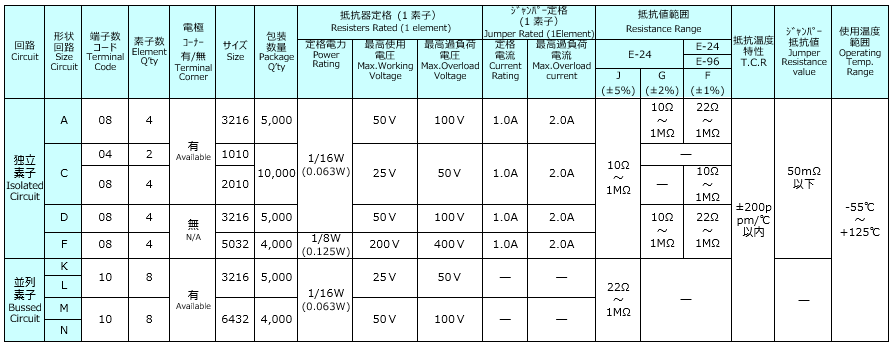

Specifications

※CREA04, CREA16 will be EOL.
Please consider other alternative items.

20160404-36

※CREA04, CREA16 will be EOL.
Please consider other alternative items.

How to Code

Power Derating Curve
