product

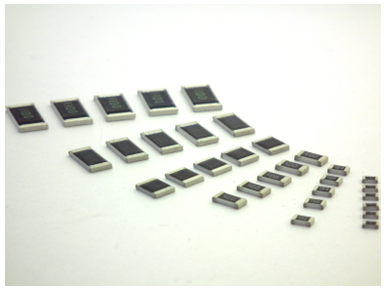

CR Thick Film Chip Resistors

Application

● For general electric instrument

Features

● CR series consist of 9 types from 0201 to 2512 inch.
● High reliability with triple layers of electrodes & metal glaze thick film resistive element
● Suitable for both flow & reflow soldering
● AEC-Q200 Qualified

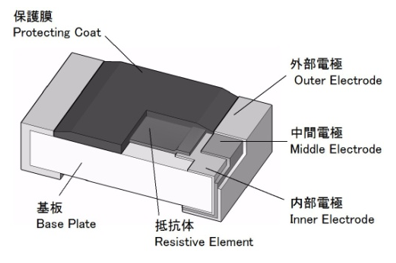

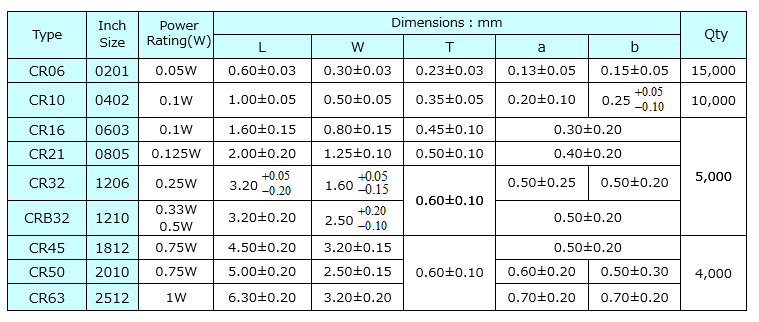

Construction・Dimensions

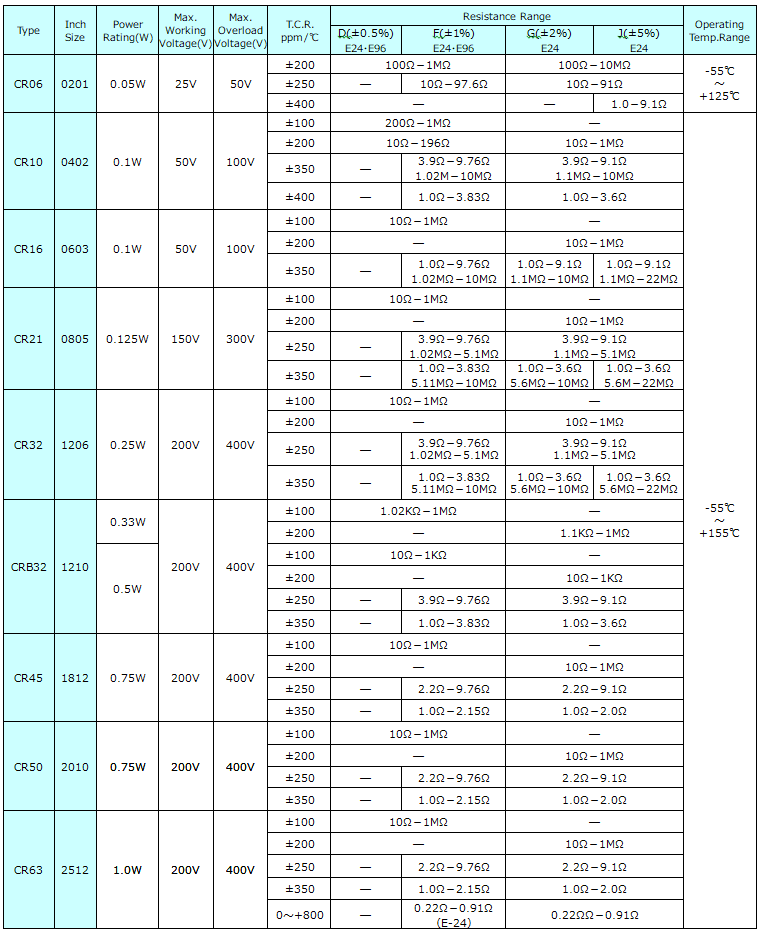

Specifications

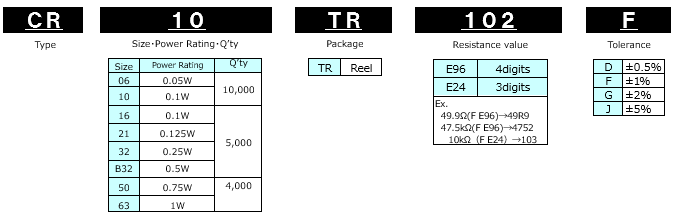

How to Code

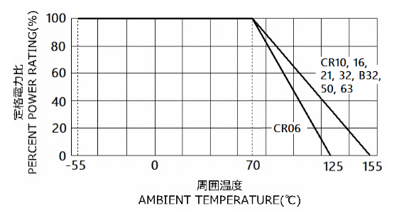

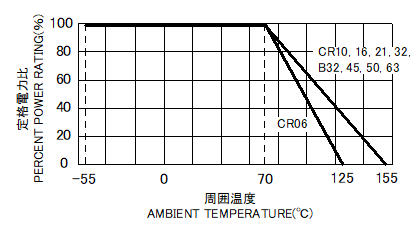

Power Derating Curve
