CR Thick Film Chip Resistors(Jumper)
Application
● For general electric instrument
Features
● This series are same shape with CR series.
● Consist of 9 types from 0201 to 2512 inch
● Suitable for both flow & reflow soldering
● Taping is available for automatic pick & place machines.
● AEC-Q200 Qualified

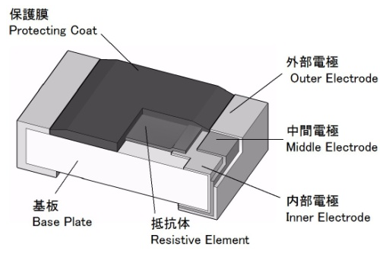

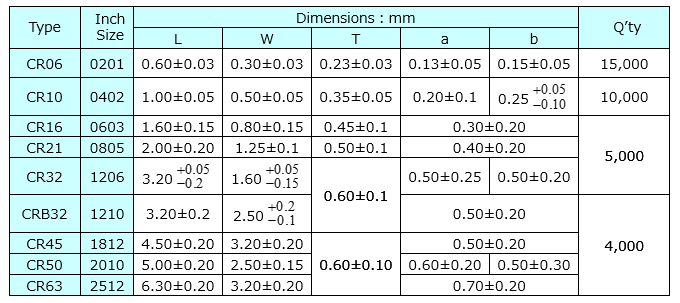

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CRJ2.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-01.png)

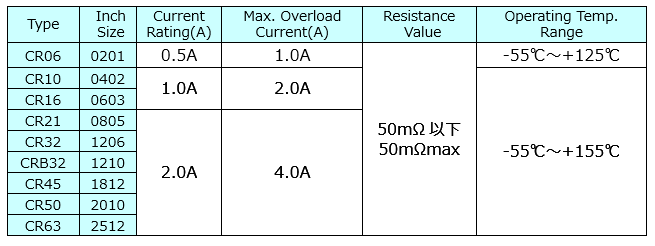

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-02.png)

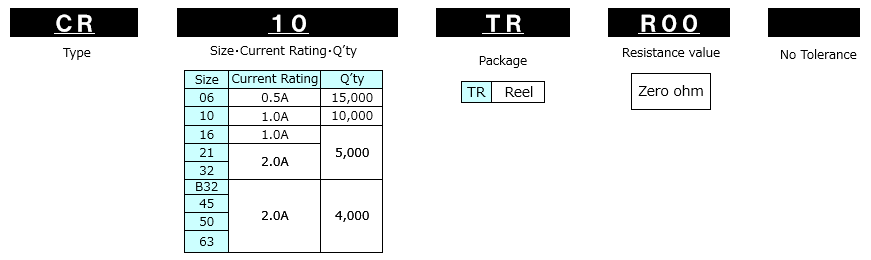

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-03.png)

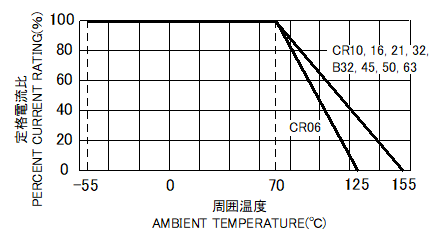

Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CR-0-Power-Derating-Cuve-20230704.png)
