RNCF Precision Thin Film Chip Resistor (NEW)

Application

● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application

Features

● Precision tolerances to ±0.01%
● TCR down to ±2ppm/℃
● Wide R-value range
● Lower values may be available.
● Consult factory for tighter tolerances.
● AEC-Q200 Qualified
● RoHS, REACH compliant, Halogen free

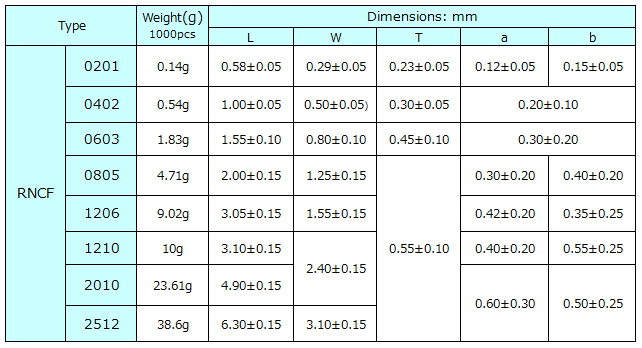

Construction・Dimensions

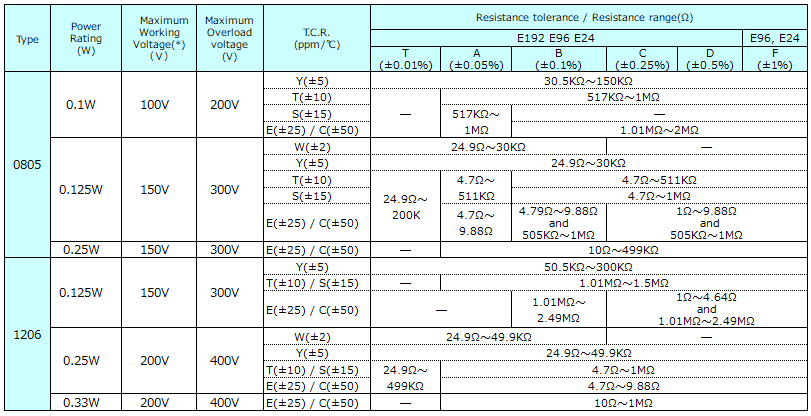

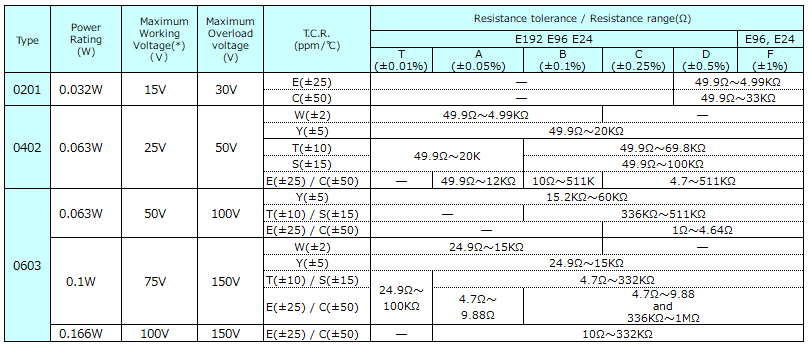

Specifications

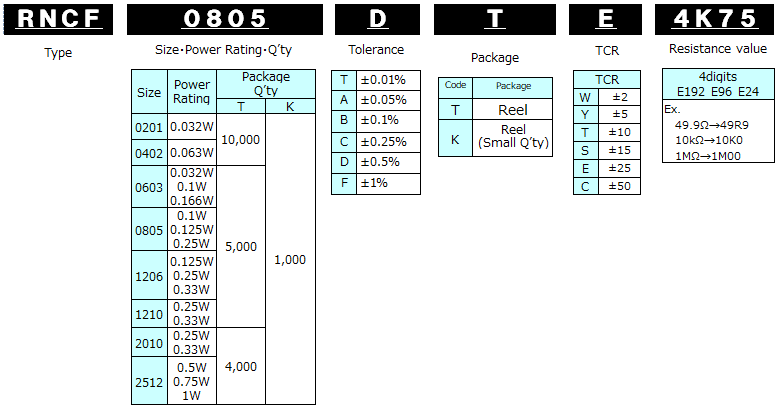

How to Code

Power Derating Curve

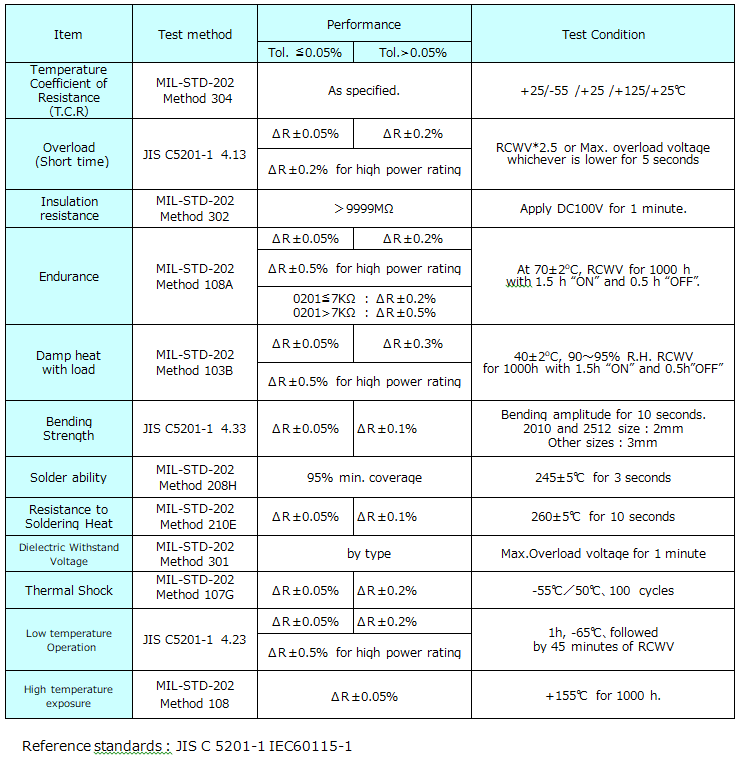

Characteristics
