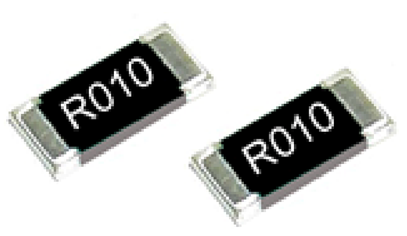

CSR/CSRN Thick Film Current Sensing Resistors

Application

● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter, Battery pack, Charger
● PDA and cell phone
● Power management application

Features

● Low inductance (less than 0.2nH typically)
● 0402 to 1225 sizes available
● Power ratings to 3W
● Non-standard resistance values available
● 0805, 2010 and 2512 sizes available with narrow terminations(CSRN)
● RoHS, Reach compliant and halogen free

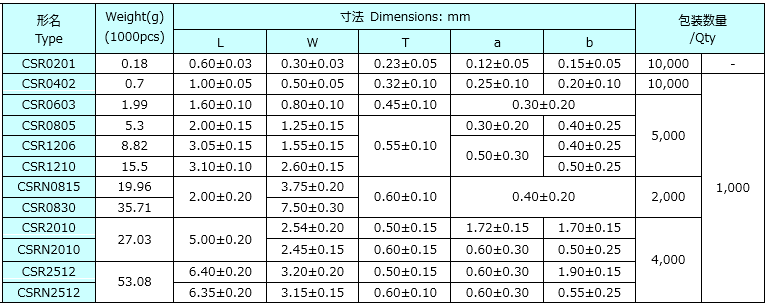

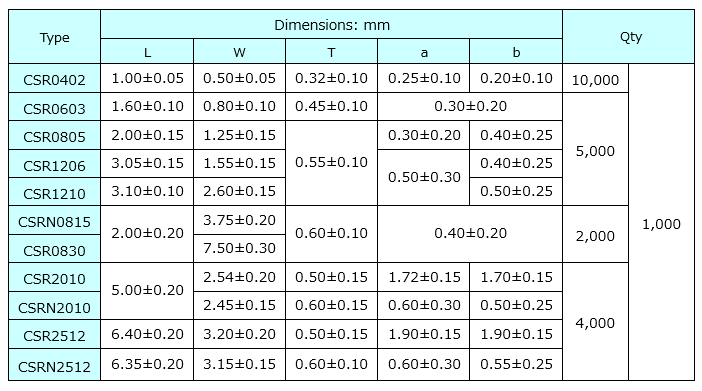

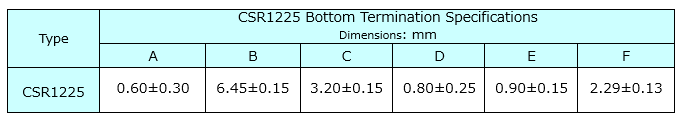

Construction・Dimensions

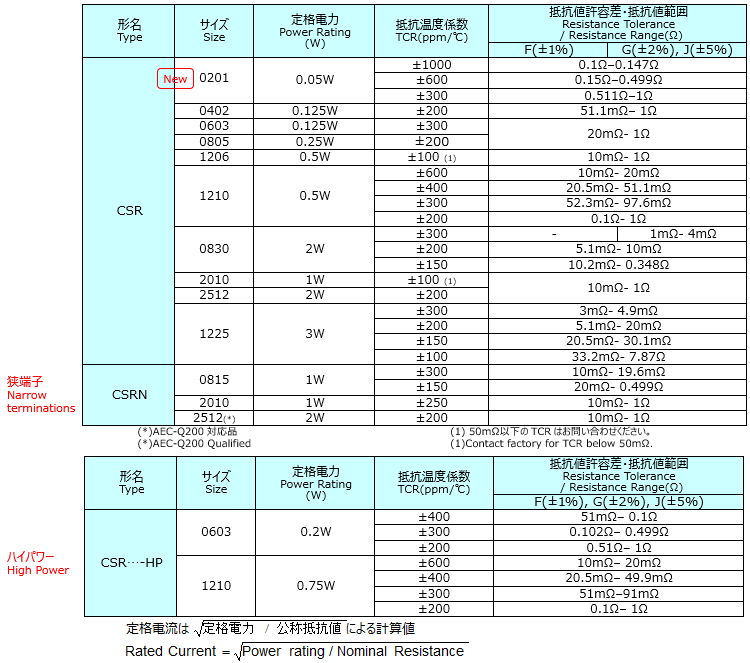

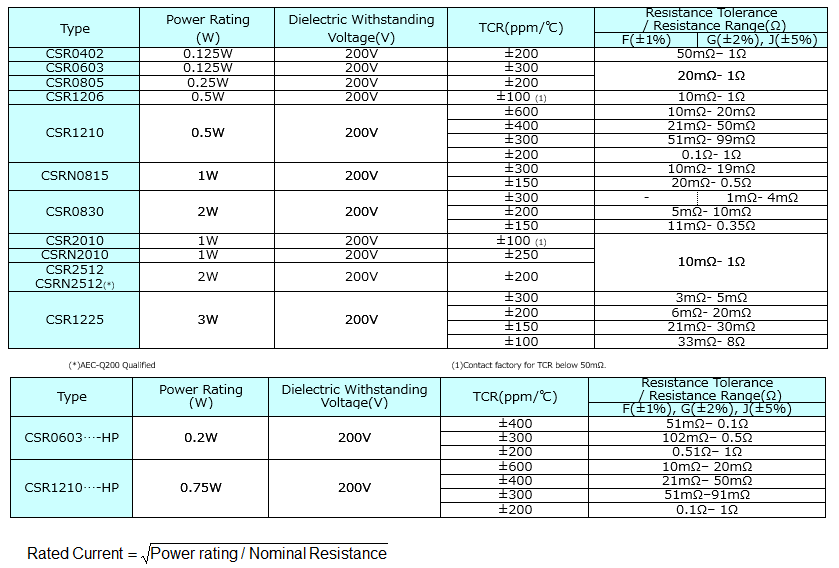

Specifications

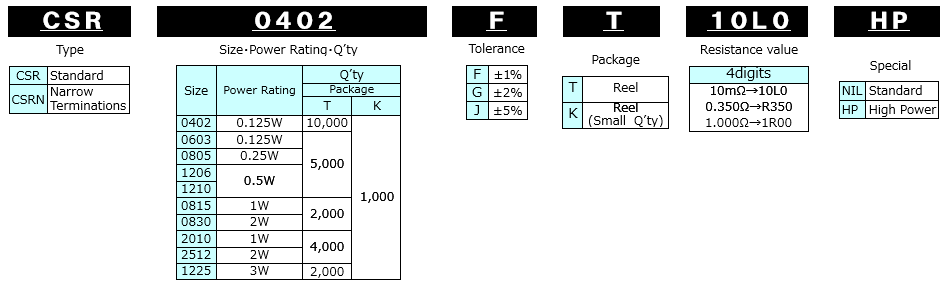

How to Code

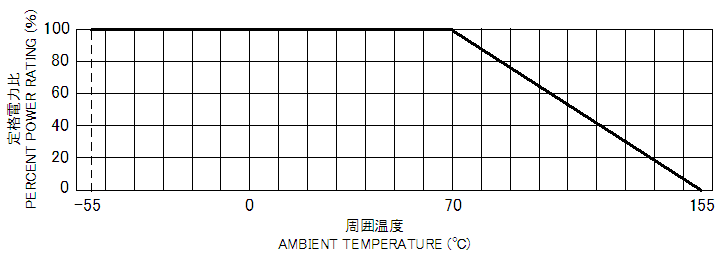

Power Derating Curve

20150828 17

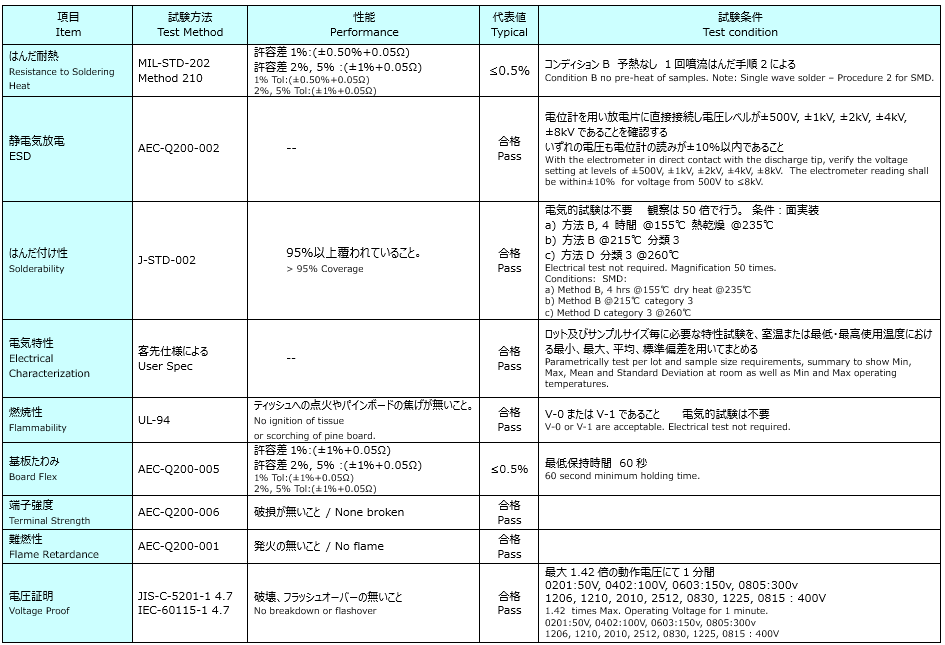

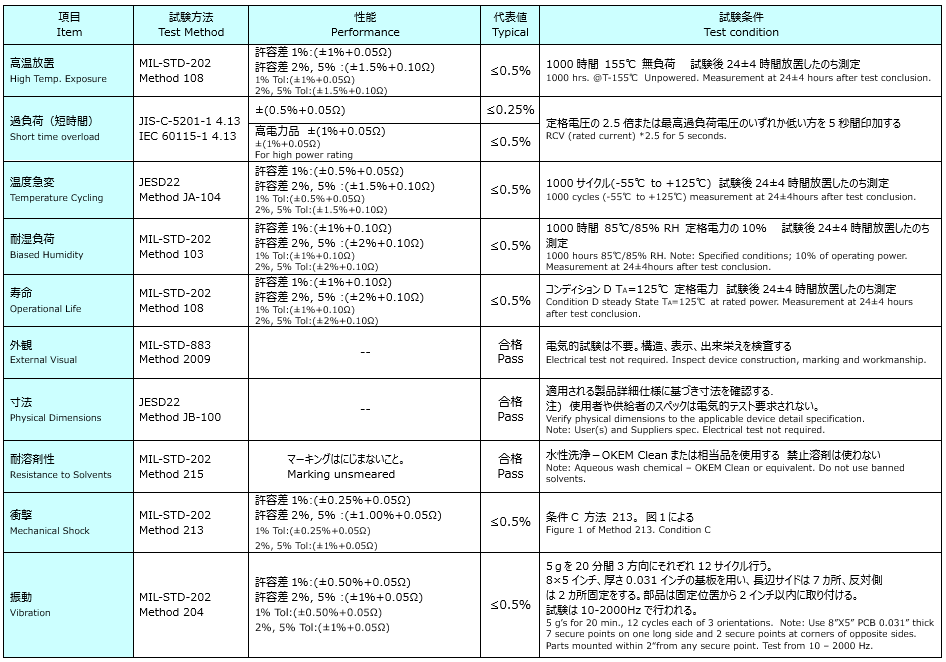

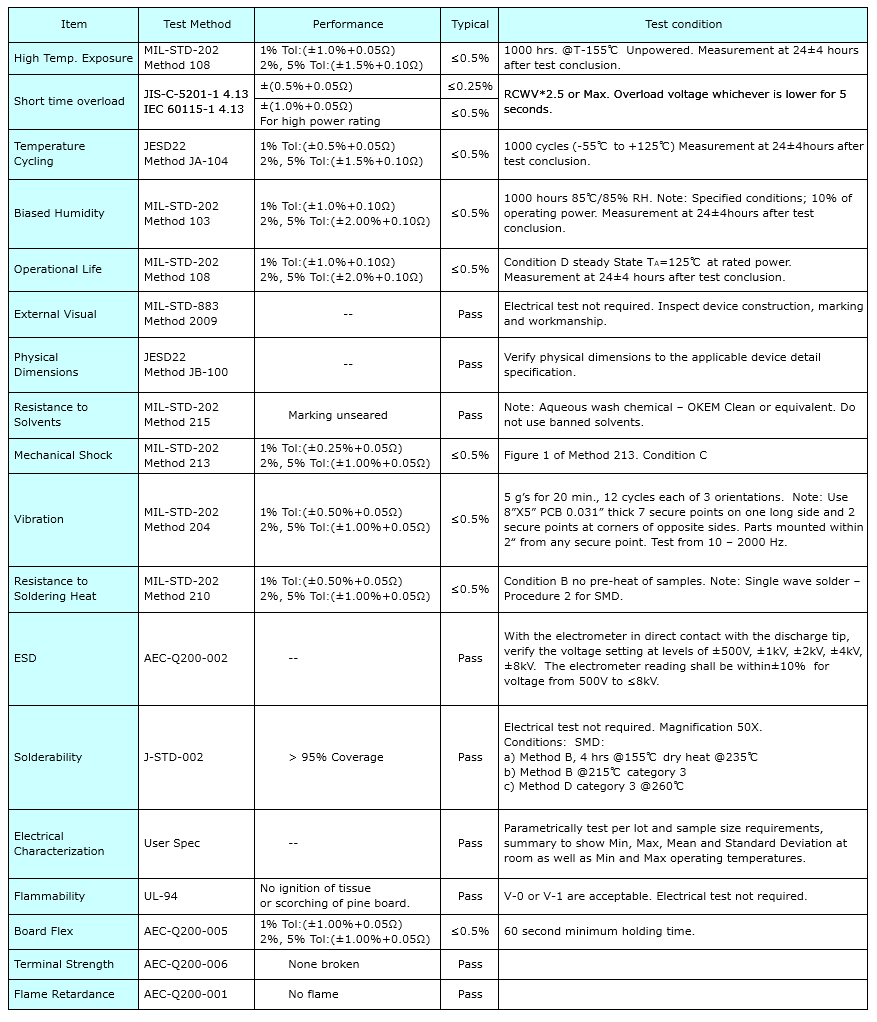

Characteristics
