CSRF Foil on Ceramic Current Sensing Chip Resistors
Application
● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application
Features
● High Power rating
● Wide resistance range
● Current handling up to 26A
● TCR down to ±50ppm/℃
● Other resistance values may be available.
● RoHS, Reach compliant / lead free, Halogen free

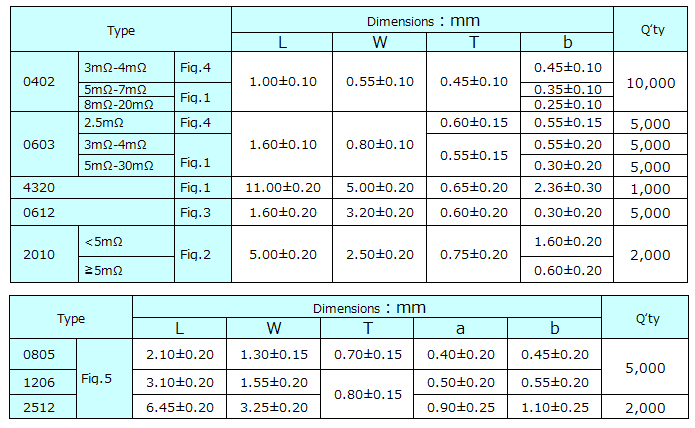

Construction・Dimensions

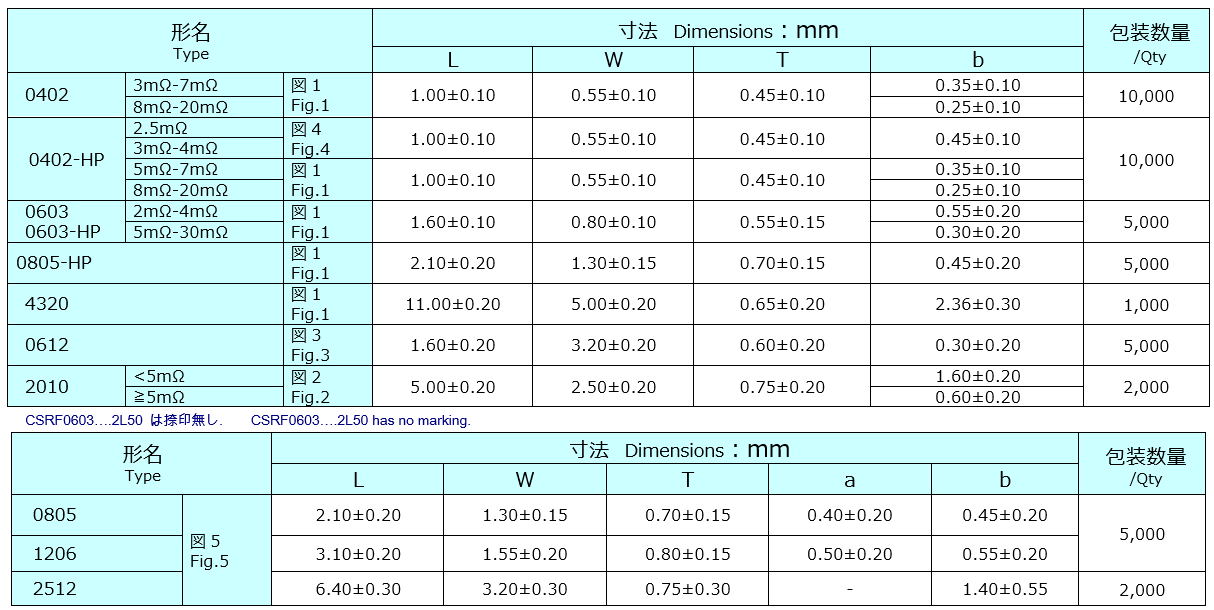

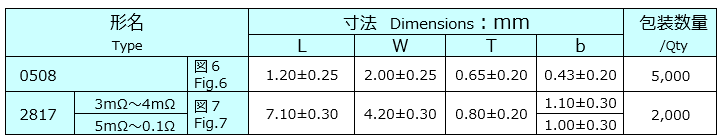

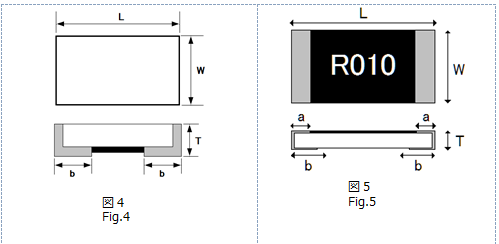

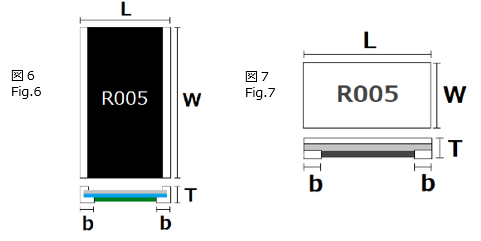

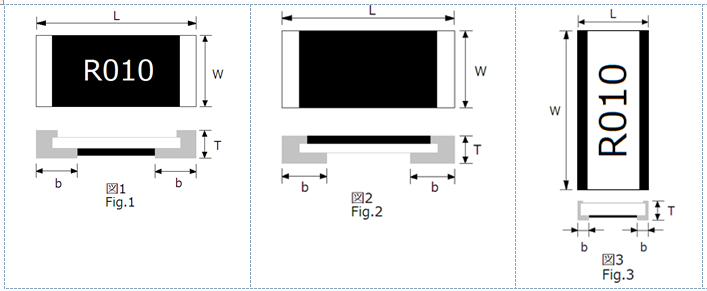

![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSRF-Dimensions-Jan.2024.png)

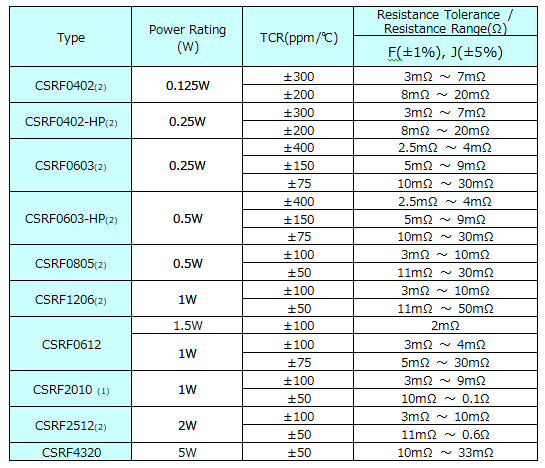

Specifications

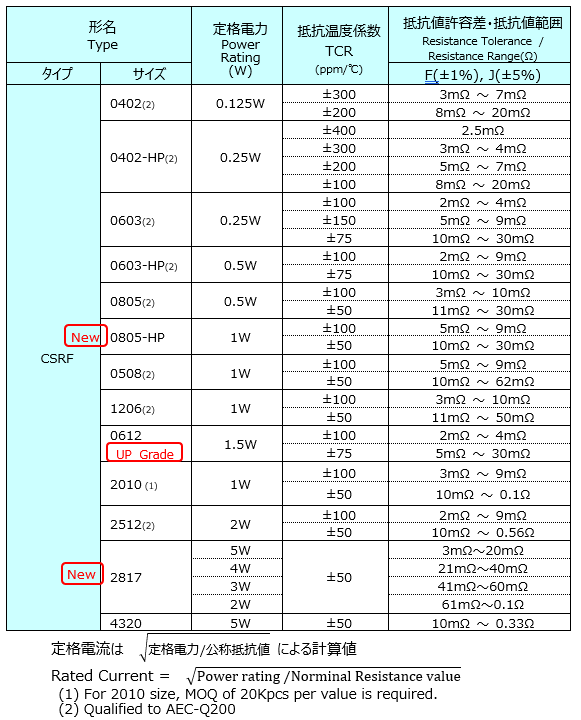

![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSRF-Specificaitons-Jan.2024.png)

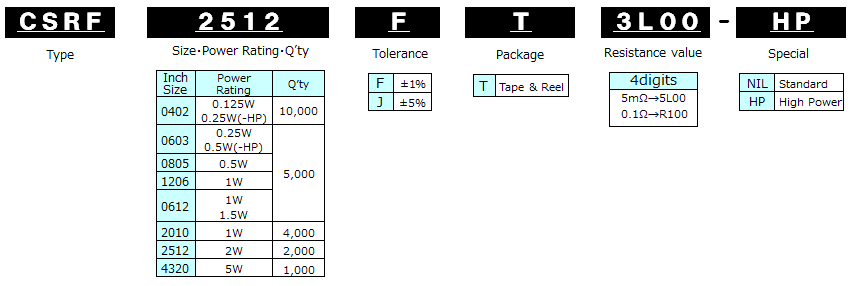

How to Code

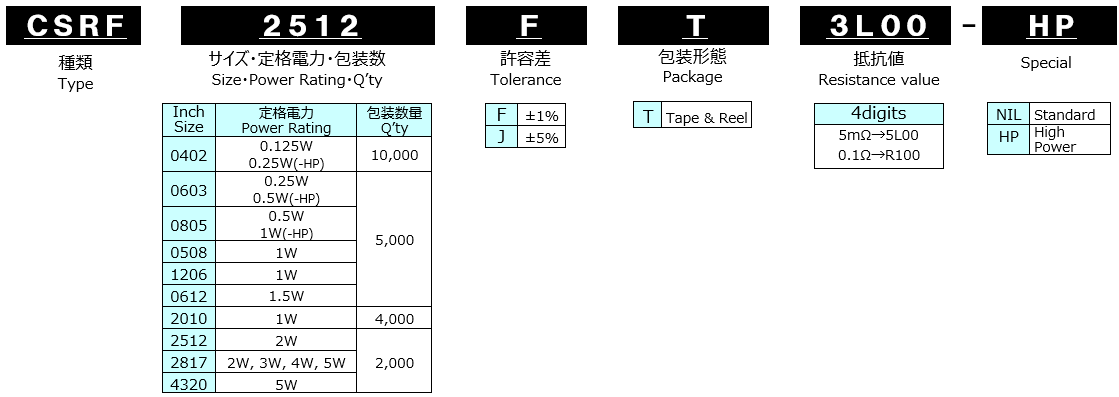

![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSRF-How-to-Order-May.2024.svg)

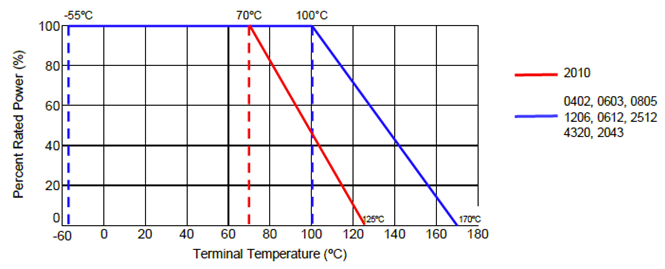

Power Derating Curve

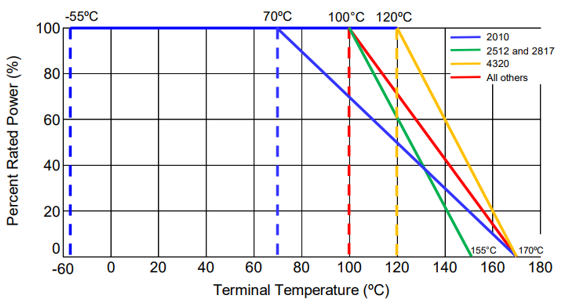

![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSRF-Power-derating-curve-Jan.2024.png)

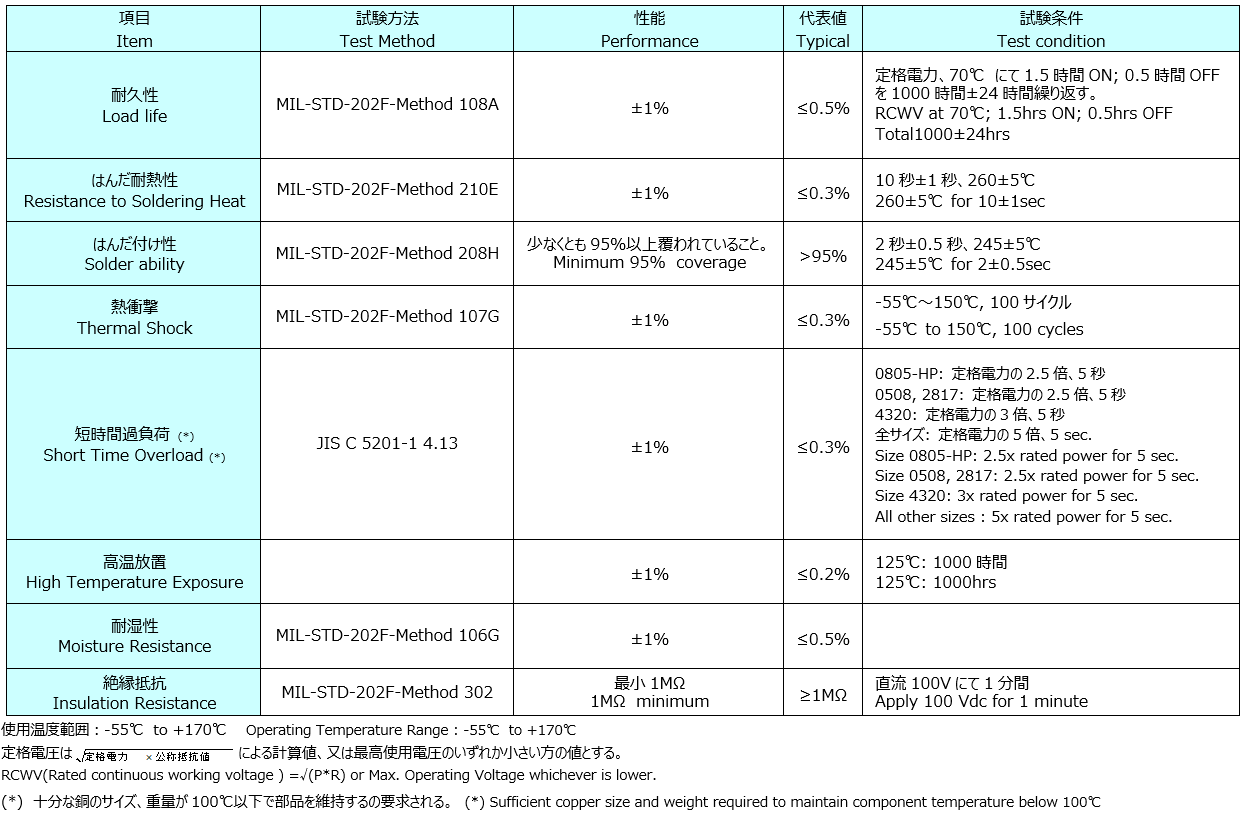

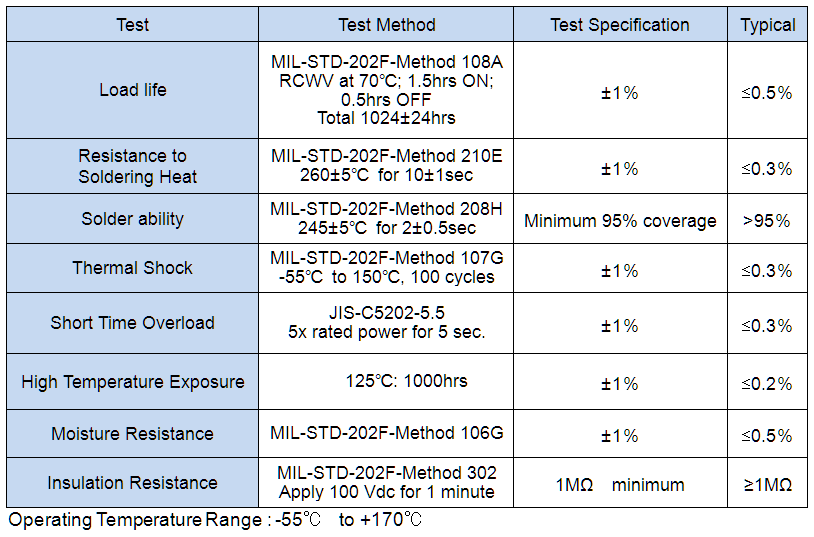

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSRF-Performance-May.2024.svg)
