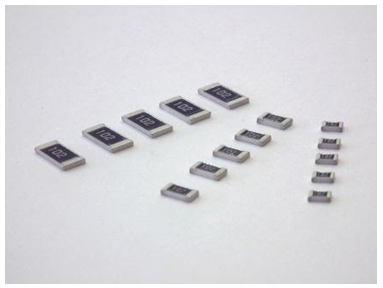

CHR High Resistance Thick Film Chip Resistors
Application
● Testing equipment, High voltage circuit,
Pyroelectric sensor.
Features
● Reliable super high resistance value till MAX 10GΩ
● RoHS compliant
● AEC-Q200 Qualified
Construction・Dimensions
![20150828 24](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-24.png)
![20150828 25](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-25.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CHR4.png)

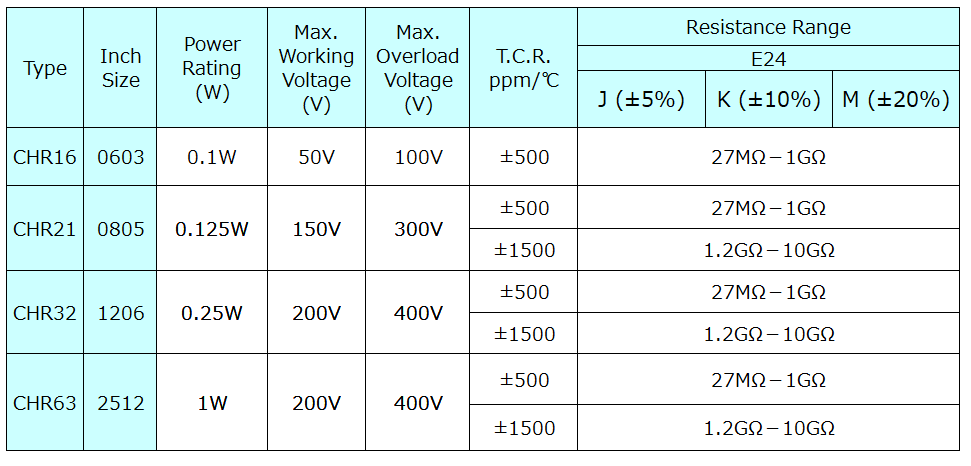

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220112-CHR-01.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CHR6.png)

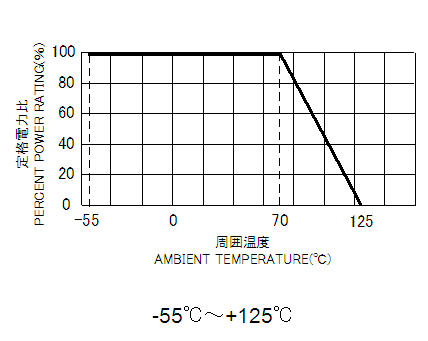

Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220112-CHR-02.png)
