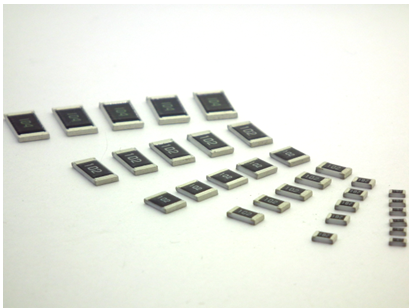

CRA Anti Sulfurated Thick Film Chip Resistors
Application
● Power supply, vehicle installation, inverter,
Equipment used in outdoor.
Features
● Inner gold electrodes allow to prevent sulfuration.
● Suitable for both flow & reflow soldering.
● RoHS compliant, AEC-Q200 Qualified

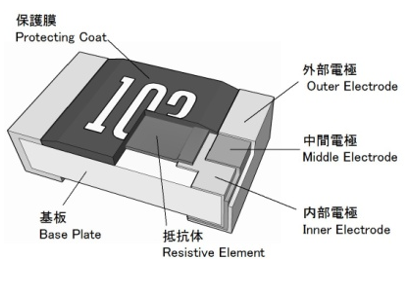

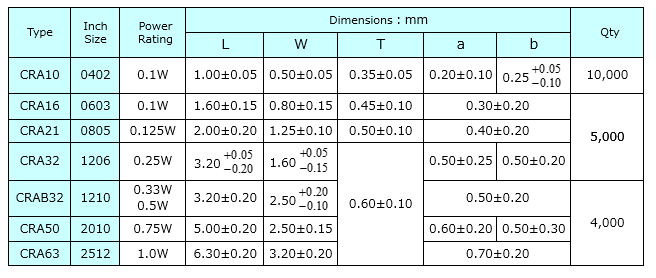

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CRA2-1.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220112-CRA-01.png)

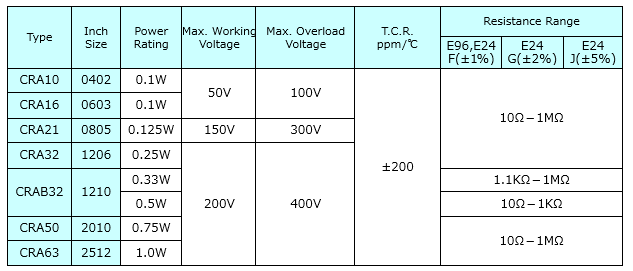

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220112-CRA-02.png)

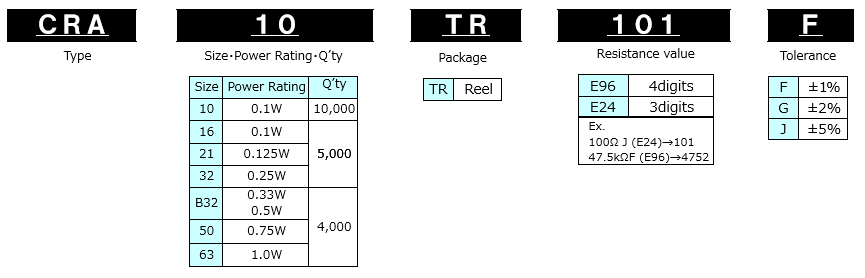

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220112-CRA-03.png)

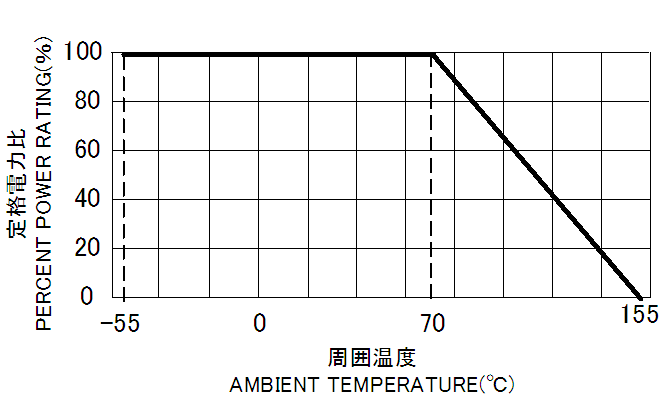

Power Derating Curve
![20150828 33](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-33.png)
