CPR High Power Thick Film Chip Resistors
Application
● For power circuit, motor etc.
Features
● Rated power of 2W assured at the size 2512. TCR within ±100ppm/℃ available.
● Adoption of metal glazed resistive film and glazed protective coating allows to resist heat and climate conditions.
● Material and structure which are excellent in heat dissipation reduce the temperature rise.
● RoHS compliant
● AEC-Q200 Qualified

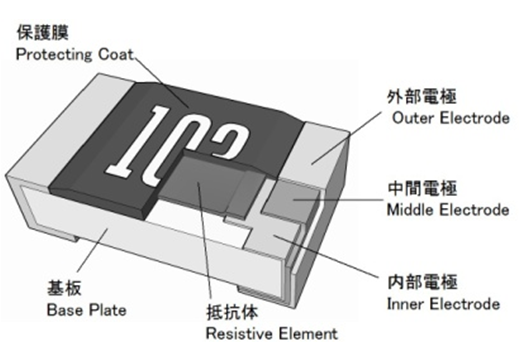

Construction・Dimensions
![20150828 36](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-36.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CPR-3.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CPR-1.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CPR-2.png)

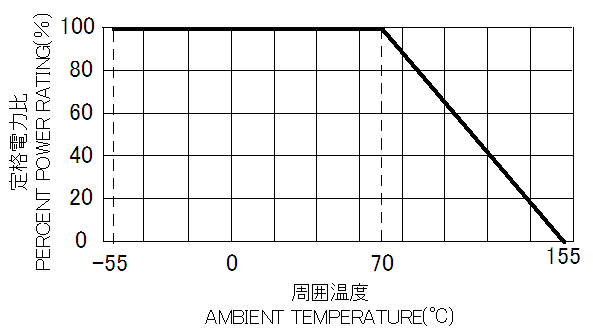

Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CPR-Power-derating-curve-ambient-May.2024.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CPR-Power-derating-curve-TERMINAL-May.2024.png)
