CRS Surge Current Thick Film Chip Resistors
Application
● Power supply, vehicle installation, inverter, Snubber circuit.
Features
● Consist of 6 types from 0603 to 2512 inch
● High reliability with triple layers of electrodes & metal glaze thick film resistive element.
● Suitable for both flow & reflow soldering.
● Taping is available for automatic pick & place machines.
● AEC-Q200 Qualified

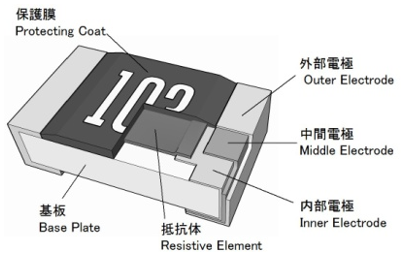

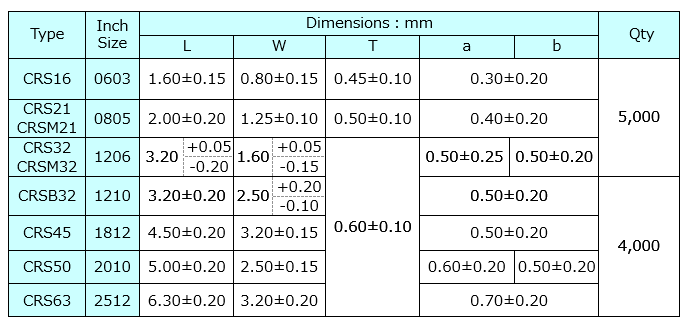

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/08/CRS2-1.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/08/20220111-CRS-01.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CRS-20210617-002.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CRS-20210617-003.png)
Power Derating Curve
![20150828 49](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-49.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/08/2021-06-16-002.png)
