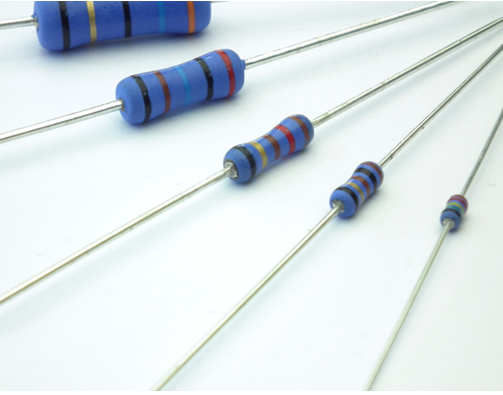

ASR/ASRM Special Power Type Anti Surge Resistors
Application
● Discharge circuit for primary side of power supply
● Insulation between primary side and secondary side of power supply
● Anti-surge, snubber, high voltage circuit
Features
● Excellent in anti-surge
● Wide variety of lineup from 1/4W to 2W
● Selectable from special film and metal glazed film
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

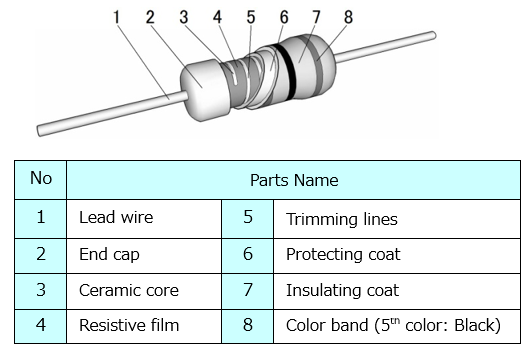

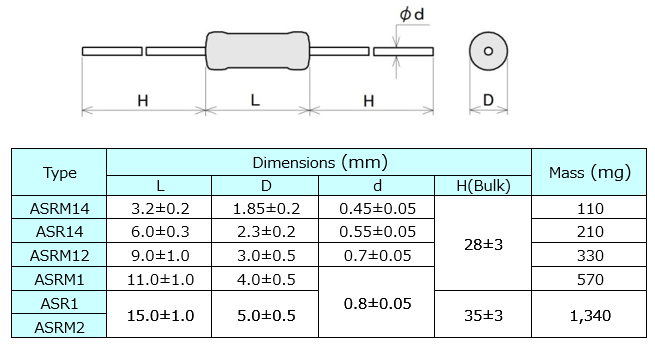

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-02-220118.png)

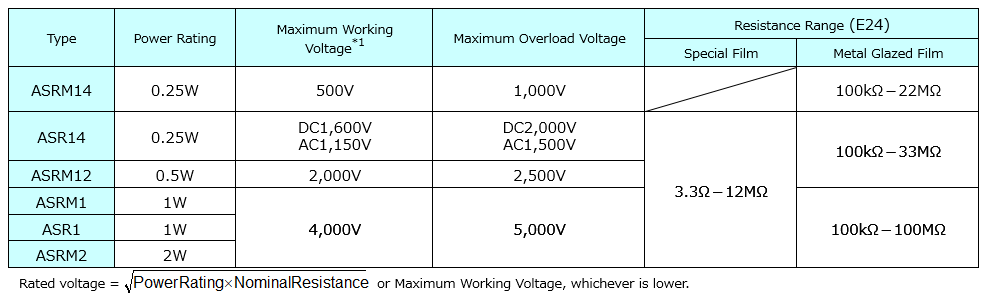

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-04-220118.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-How-to-Order-20230701.png)
Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2015/05/ASR5.png)
Surface Temperature Rise
![](https://www.akaneohm.com/wp-content/uploads/2015/05/ASR6.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/05/ASR7.png)
Caution
![](https://www.akaneohm.com/wp-content/uploads/2015/05/ASR8.png)
