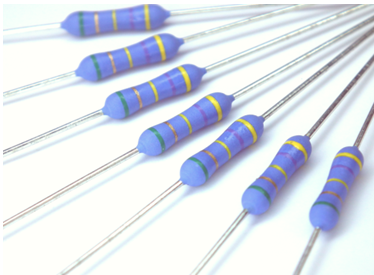

SPRW1 Special Power Type Discharge Path Resistors
Application
● Discharge circuit for primary side of power supply
● Insulation between primary side and secondary side of power supply
● Anti-surge, snubber, high voltage circuit
Features
● VDE(EN62368-1:2020 Annex G10) and UL1676,
c-UL (CSA-C22.2 No.1) Qualified
● Minimum size in the industry
● Excellent in anti-surge
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

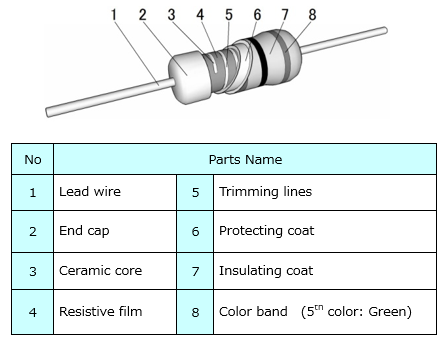

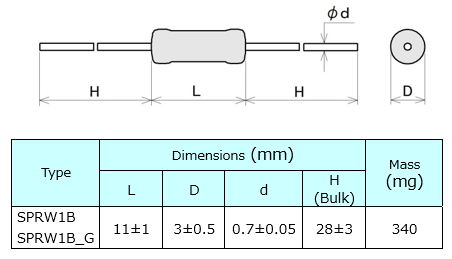

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPRW1-01-220118.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2015/05/SPRW3.png)
How to Code
![](https://www.akaneohm.com/wp-content/uploads/2015/05/SPRW4.png)
Power Derating Curve
![20150717 14](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-14.png)
Surface Temperature Rise
![20150717 15](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-15.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/05/SPRW5.png)
