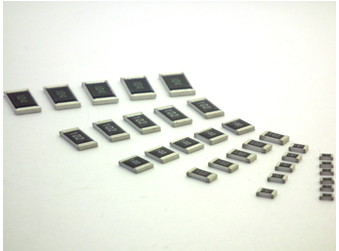

CLR Low Resistance Thick Film Chip Resistors
Application
● Power circuit protection, battery pack charge & discharge, inverter, motor control circuit, miniature instruments for high precision current sensing
Features
● CLR series consist of 7 types from 0402 to 2512 inch.
● Power rating is equivalent to general chip resistors Rank up.
Ex.) 0402 : 1/16W → 1/8W
● Possible to use high power by excellent heat conductivity
● AEC-Q200 Qualified

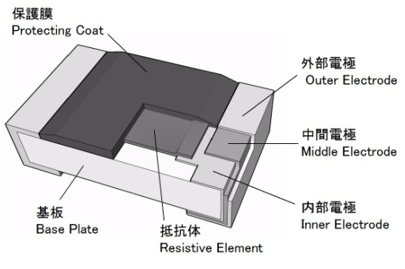

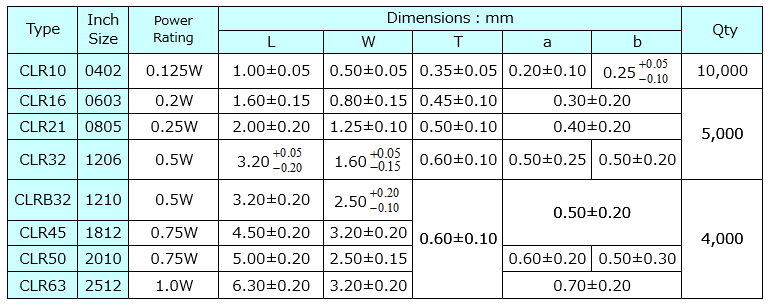

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CLR2.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CLR-01.png)

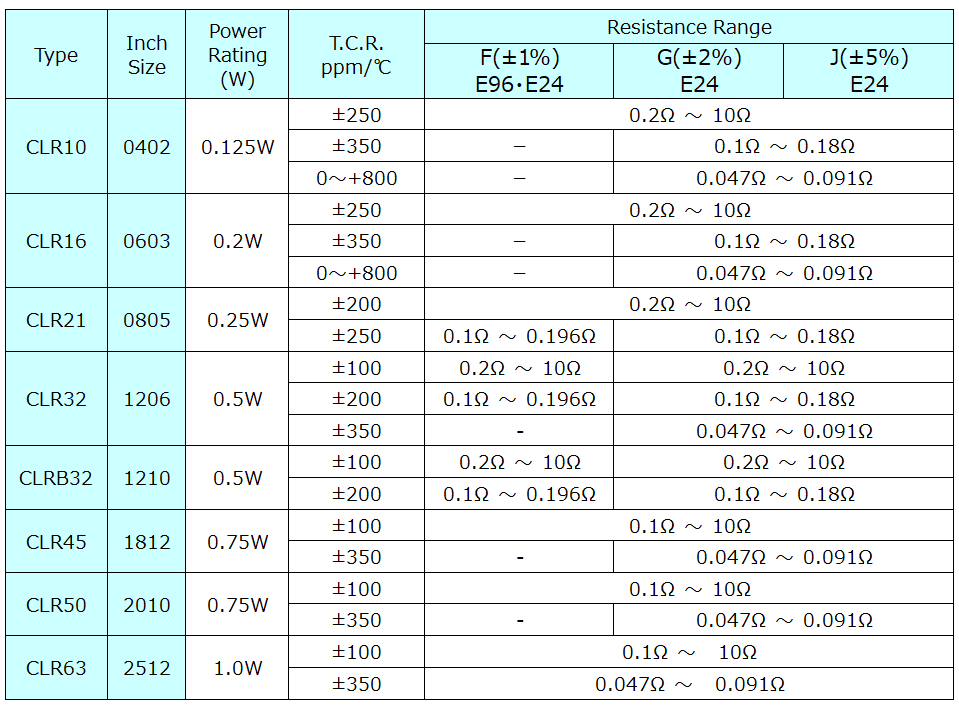

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CLR-02.png)

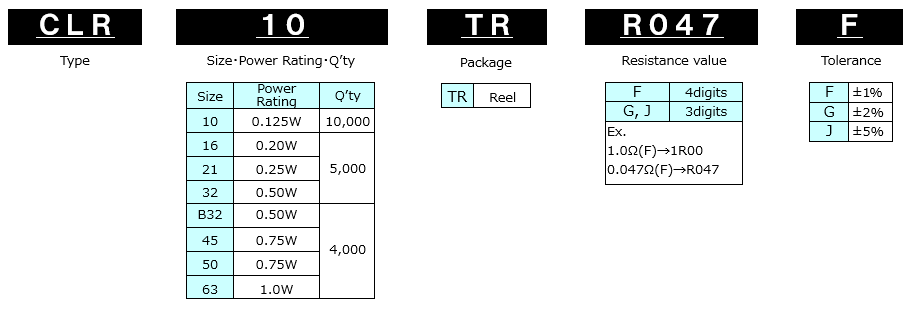

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CLR-03.png)

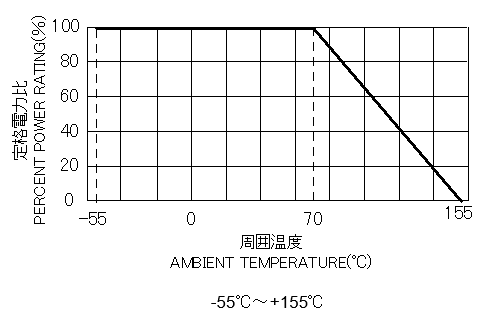

Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CLR6.png)
Surface Temperature Rise
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CLR-04.png)
Caution
![20150709 9](https://www.akaneohm.com/wp-content/uploads/2015/07/20150709-9.png)
