SPRW1 Special Power Type Discharge Path Resistors
用途
● Discharge circuit of Power supply primary side.
● Insulation between primary side and
secondary side of power supply.
● Anti surge, Snubber, High voltage circuit.
特徴
● VDE(EN62368-1:2020 Annex G10) and UL1676,
c-UL (CSA-C22.2 No.1) Qualified
● Minimum size in the industry
● Excellent in anti-surge
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

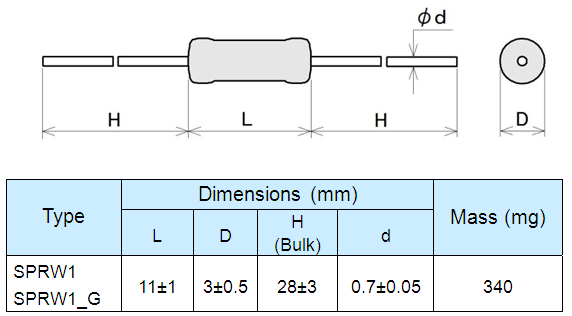

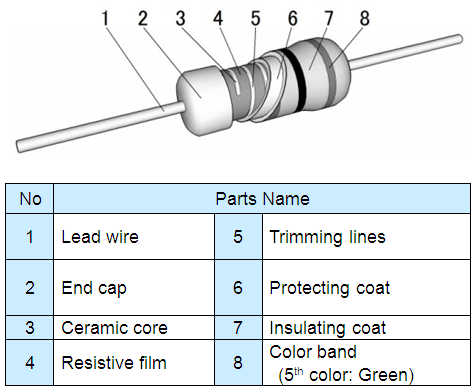

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPRW1-01-220118.png)

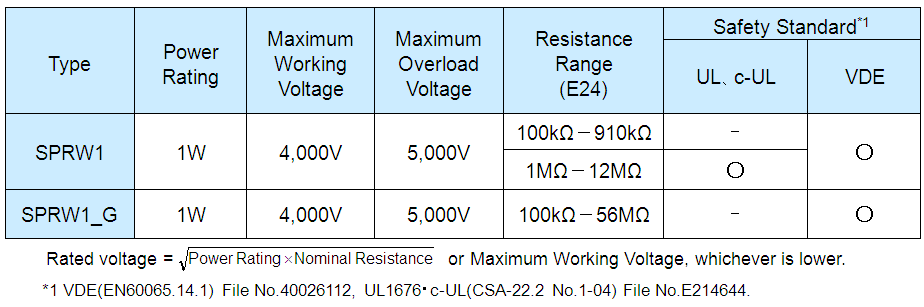

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/11/SPRW1-06-220118.png)

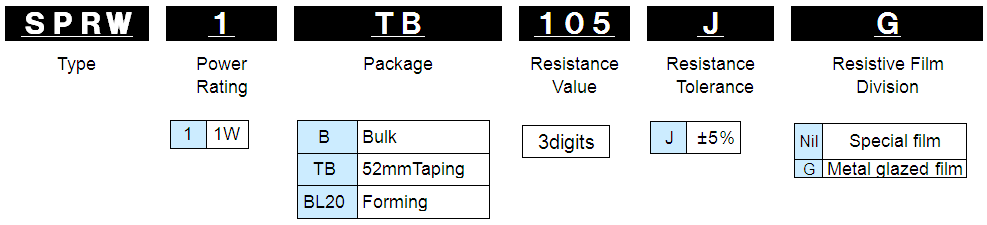

型名
![](https://www.akaneohm.com/wp-content/uploads/2015/11/SPRW1-07-220118.png)
負載功率曲線
![20150717 14](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-14.png)
表面温度上昇
![20150717 15](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-15.png)

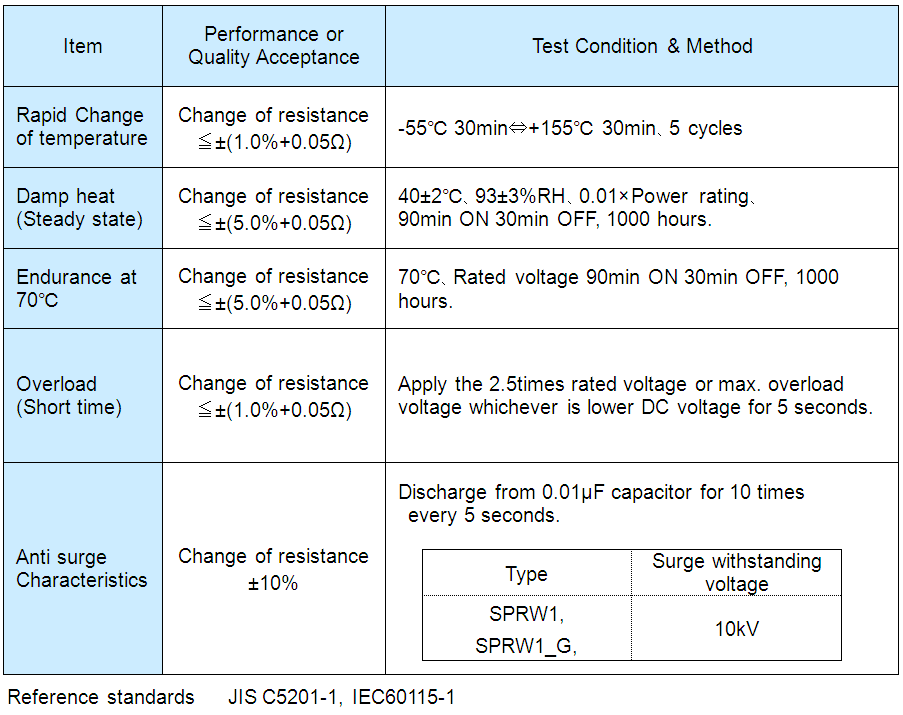

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/11/SPRW1-08-220118.png)
