ASR/ASRM Special Power Type Anti Surge Resistors
用途
● Discharge circuit of Power supply primary side.
● Insulation between primary side and secondary side of power supply.
● Anti surge, Snubber, High voltage circuit.
● Replacement Carbon Composition Resistors.
特徴
● Excellent in anti-surge
● Wide variety of lineup from 1/4W to 2W
● Selectable from special film and metal glazed film
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

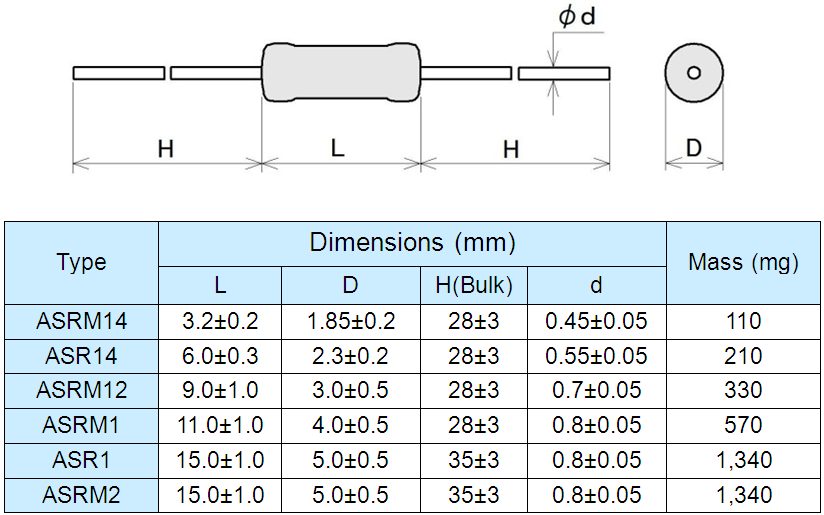

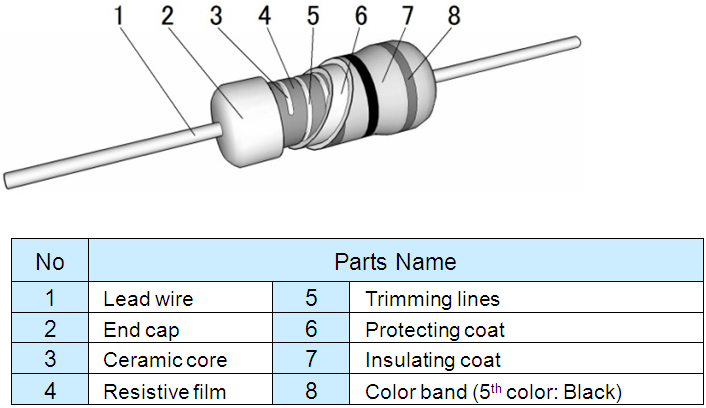

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-02-220118.png)

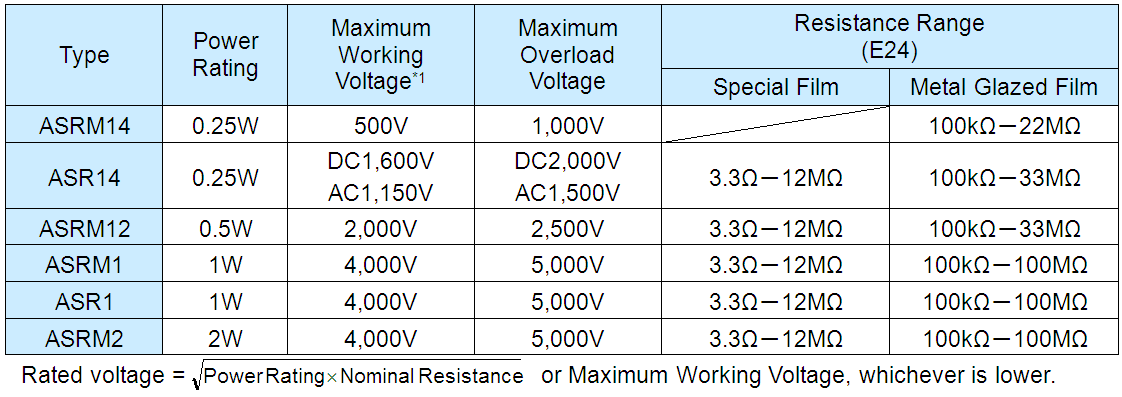

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-ASRM-04-220118.png)

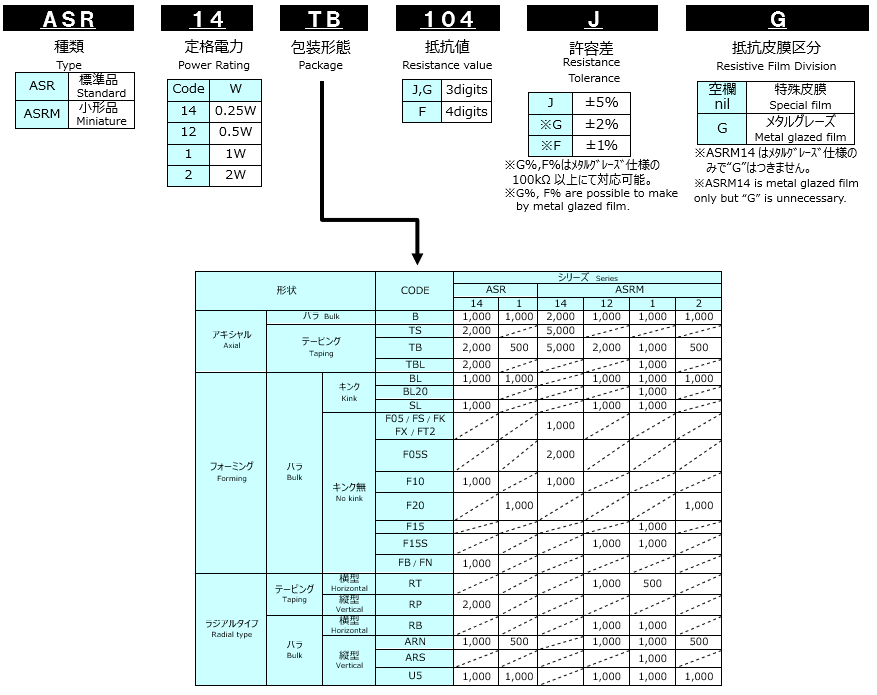

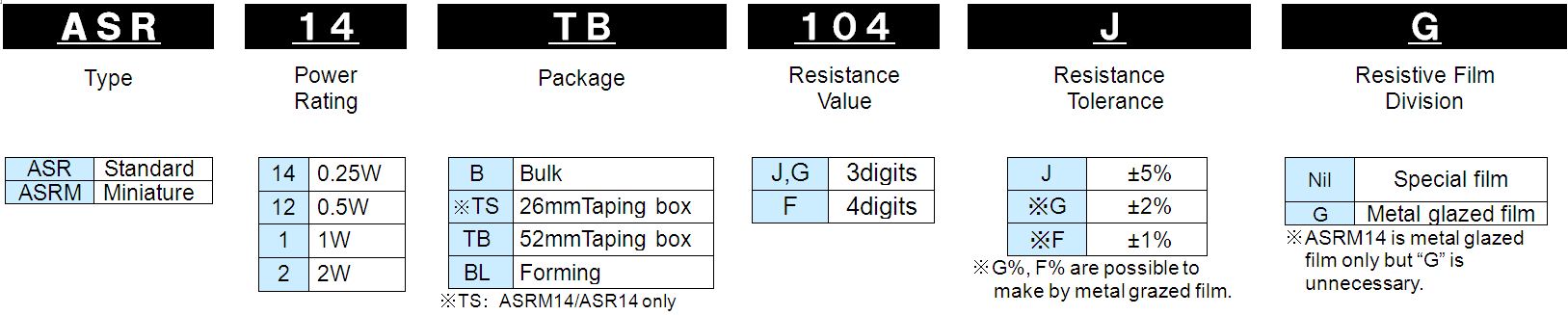

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/ASR-How-to-Order-20230701.png)
負載功率曲線
![20150710 6](https://www.akaneohm.com/wp-content/uploads/2015/05/20150710-6.png)
表面温度上昇
![20150710 7](https://www.akaneohm.com/wp-content/uploads/2015/05/20150710-7.png)
Characteristics
![20150710 8](https://www.akaneohm.com/wp-content/uploads/2015/05/20150710-8.png)
Caution
![20150710 9](https://www.akaneohm.com/wp-content/uploads/2015/05/20150710-9.png)
