CLR Low Resistance Thick Film Chip Resistors

用途

・Protect power supply
・Battery pack charge & discharge
・Inverter
・Motor control circuit
・Miniature instruments for high precision current sensitive.

特徴

CLR series consist of 8 types from 0402 to 2512 inch.

Power rating is equivalent to general chip resistors Rank up.
Ex.) 0402 : 1/16W → 1/8W

Possible to use high power for excellent heat condition.

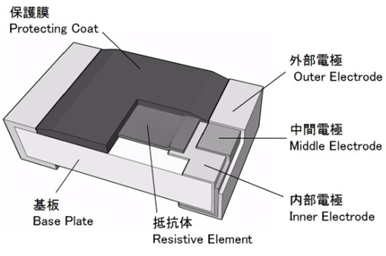

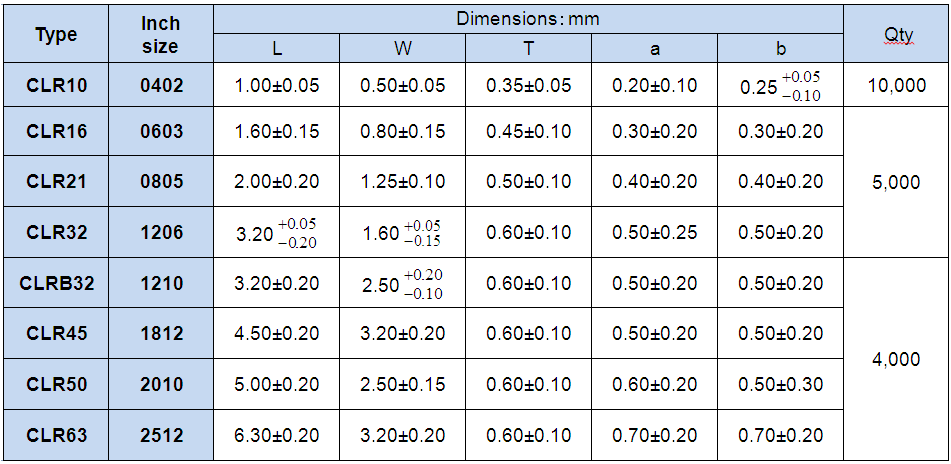

構造・尺寸

20150709 2



20150709 3

20150709 4

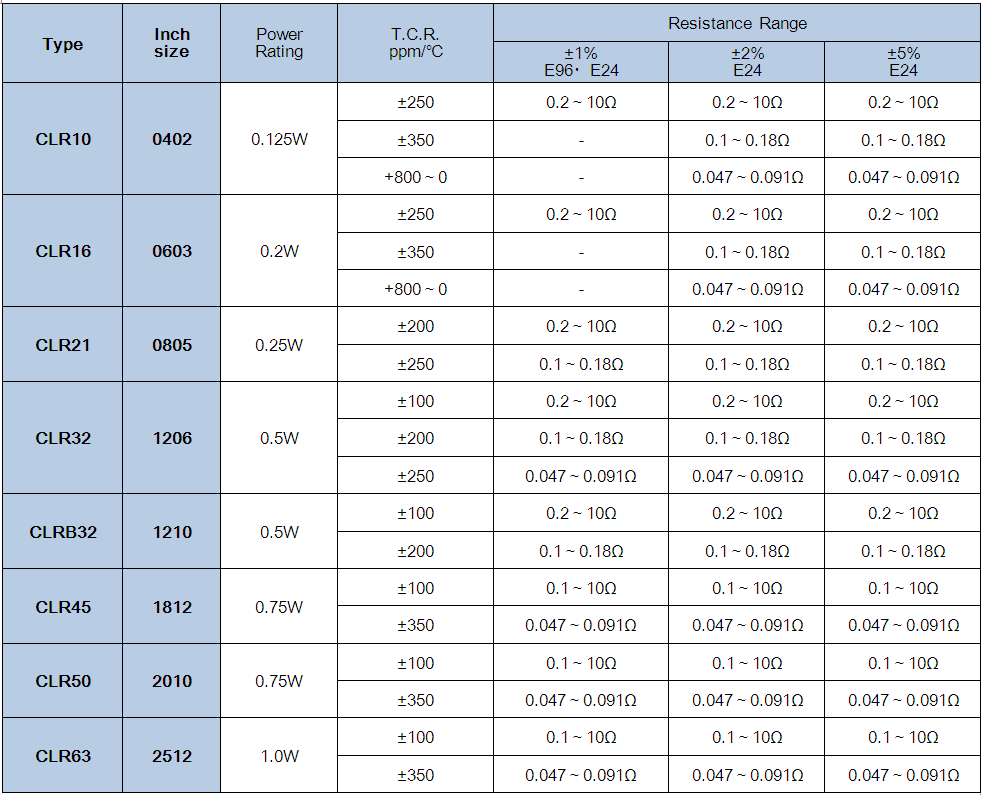

主要特性

20150709 5

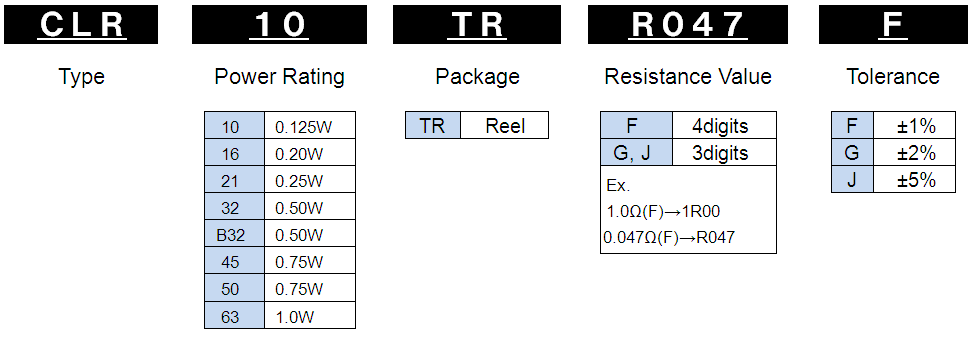

型名

20150709 6

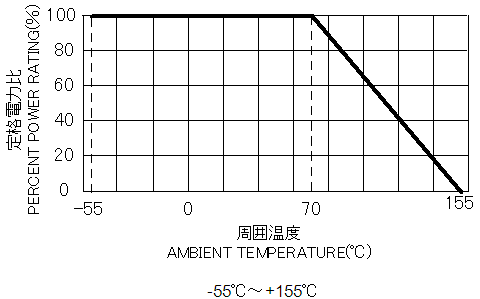

負載功率曲線

20150709 7

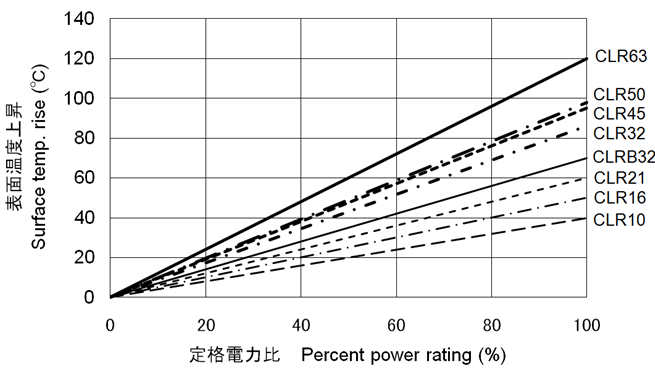

表面温度上昇

20150709 8

Caution

20150709 9
