RWT05A Thermal Fuse Incorporated Cement Resistors

用途

● Preventive inrush current for Power supply circuit.
● Protect Circuit from the case of overload and overheat.

特徴

● Reliable and promptly current break ability with unity structure thermal fuse and wirewound resistors.
● There is a market leading super thin type.
● Standard type is little smoke for Reliable design.
● Excellent Anti surge ability is ranked in a top class.
● Approvals Awarded by
UL: file No. E255350, CSA: file No. 229946
● RoHS compliant product.

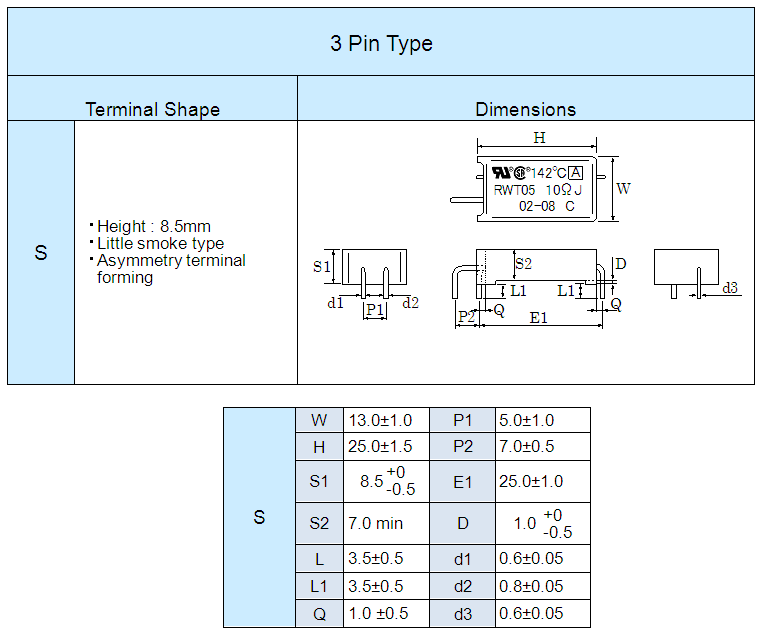

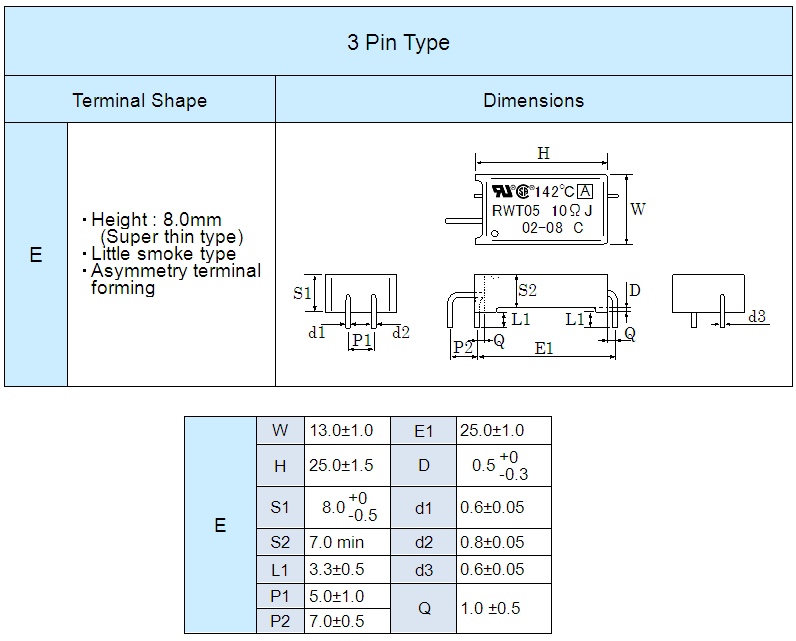

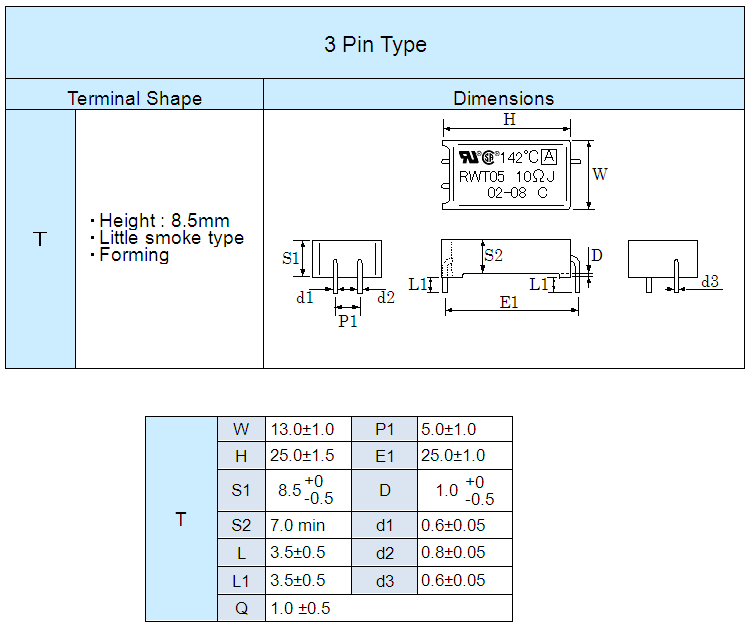

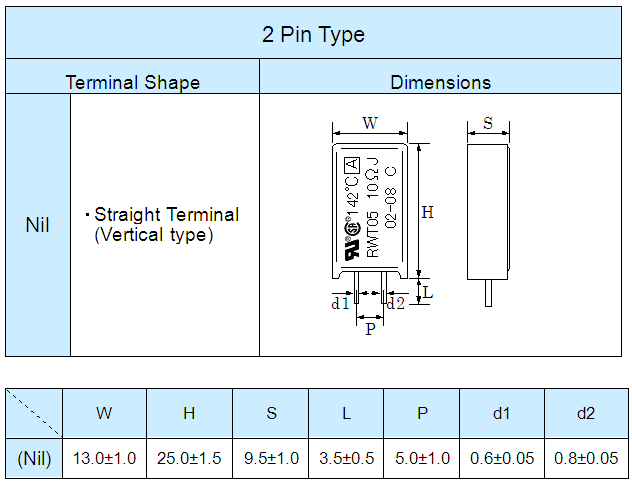

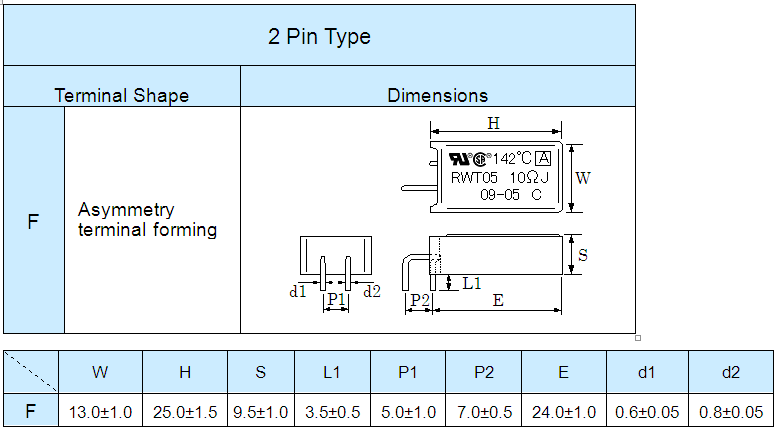

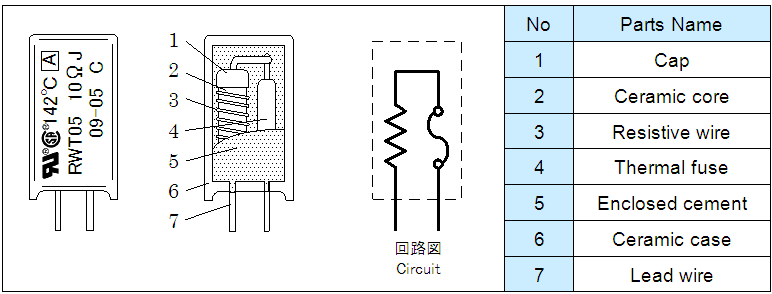

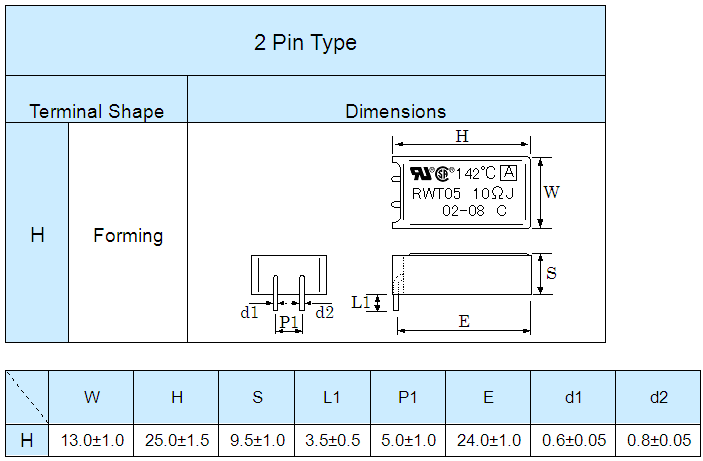

構造・尺寸

20150717 27





20150717 28



20150717 29



20150717 30



20150717 31





20150717 32



20150717 33

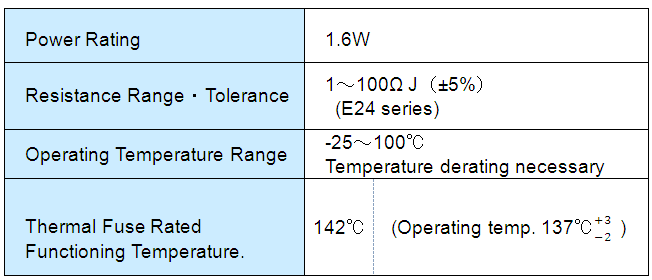

主要特性

20150717 34

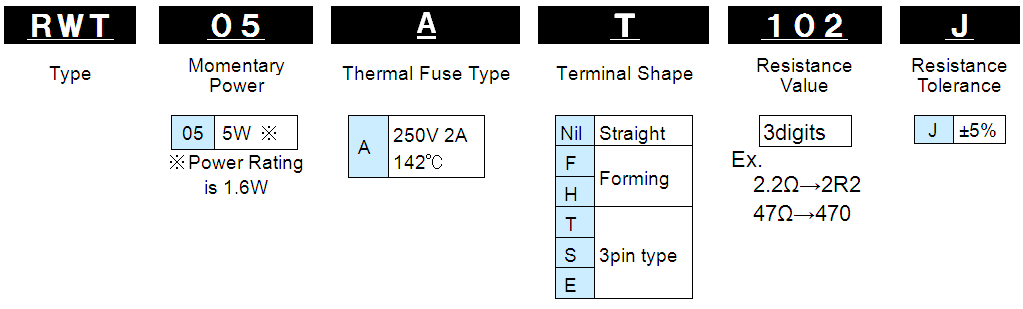

型名

20150717 35

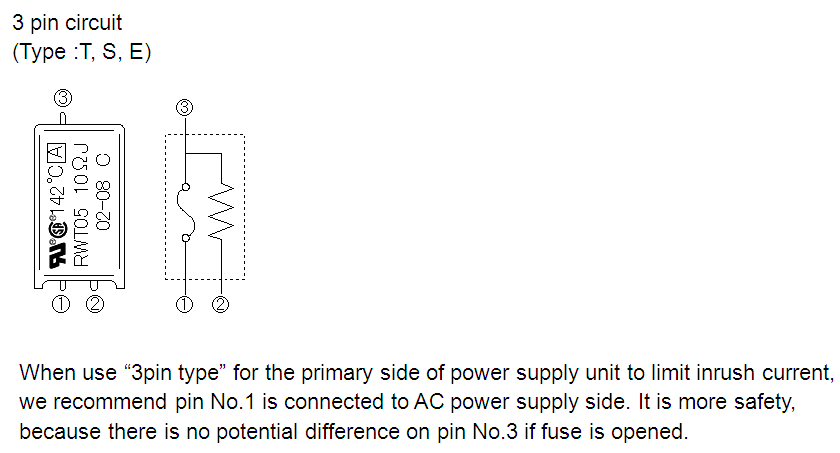

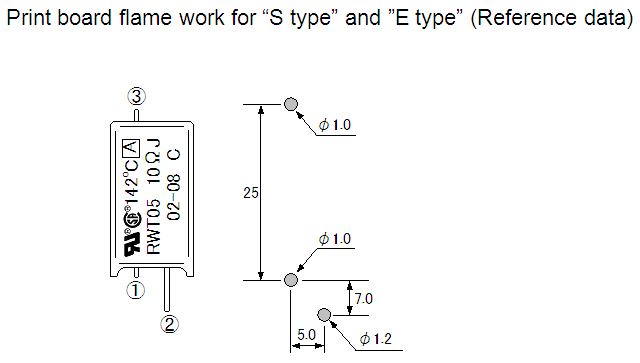

Caution

20150717 37



20150717 38





20150717 39



Fusing Characteristics

20150717 36
