FWF Cement Type Wirewound Fusing Resistors
用途
● Use of protection circuits.
特徴
● Achieved a smaller, thinner, lighter-weight shape
● Able to customize fusing characteristics
● Safe and reliable performance of fusing
● No ignition, minimum smoke at the open state by
utilizing low-smoke type cement
● RoHS, REACH compliant

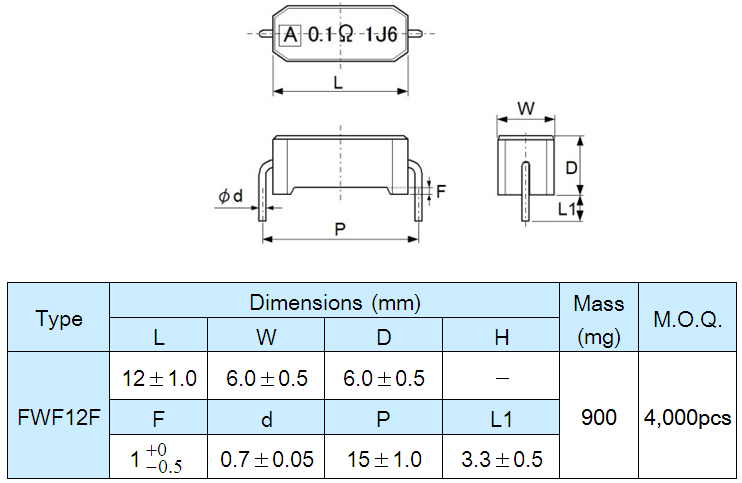

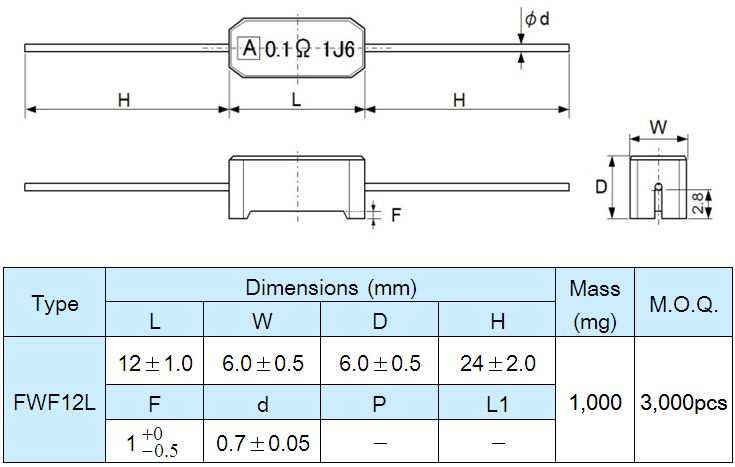

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2015/11/FWF-02-220118.png)

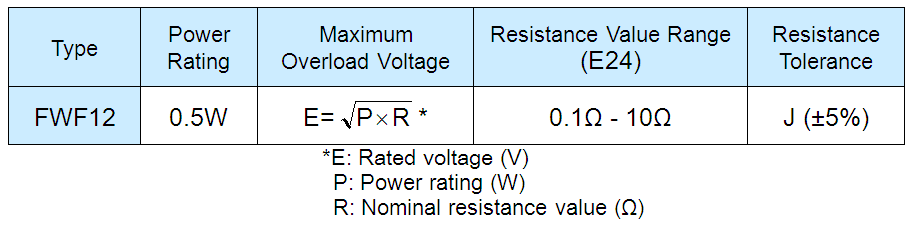

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/11/FWF-03-220118.png)

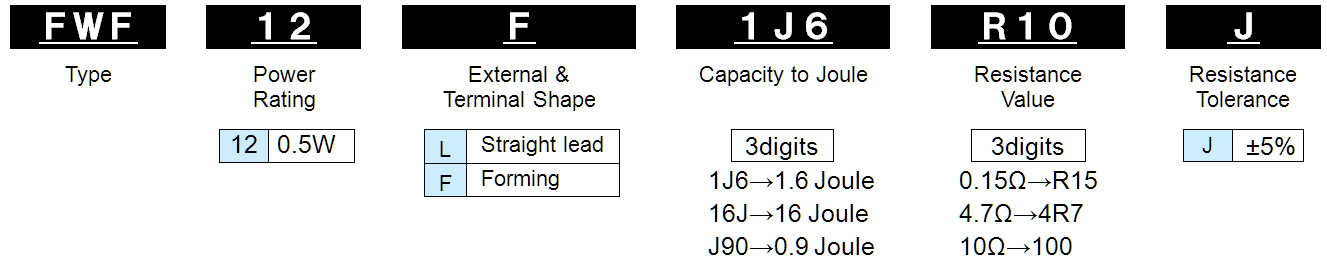

型名
![](https://www.akaneohm.com/wp-content/uploads/2015/11/FWF-04-220118.png)
負載功率曲線
![20150717 23](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-23.png)

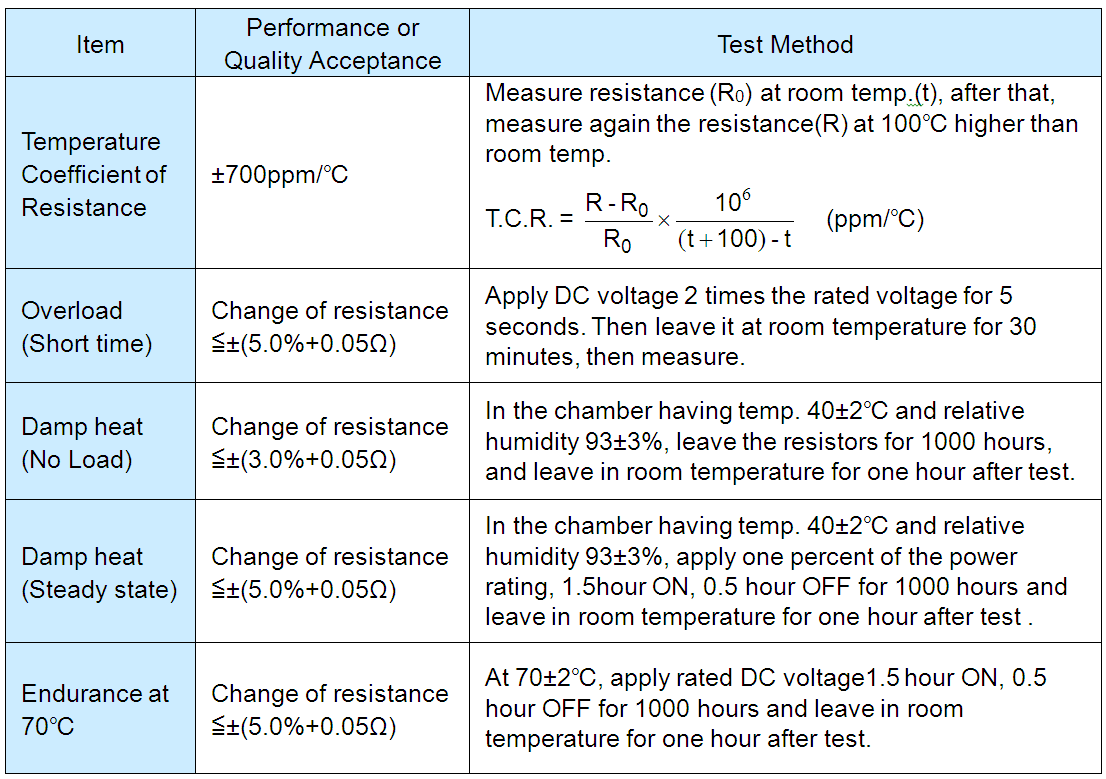

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/07/FWF-01-220118.png)
Caution
![20150717 25](https://www.akaneohm.com/wp-content/uploads/2015/05/20150717-25.png)
