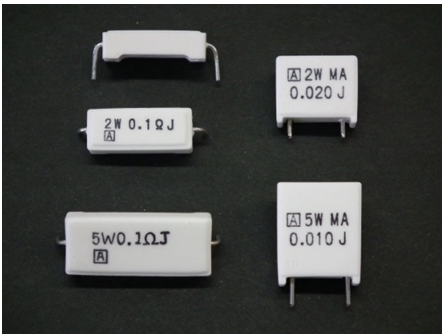

CBR Current Sensing Blade Resistors

用途

● Use for current sensing.
Excellent alternative to metal plate resistors.

特徴

● New structure current sensing resistors.
● Compact, Lightness and Thickness type
● Possible to high precision current sensing.
(Correspond to Resistance tolerance F % and G %)
● Uses low smoke type cement.
● RoHS compliant product.

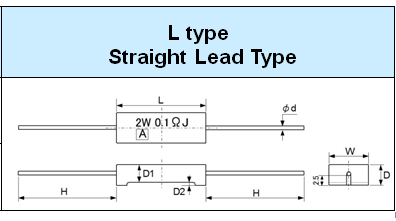

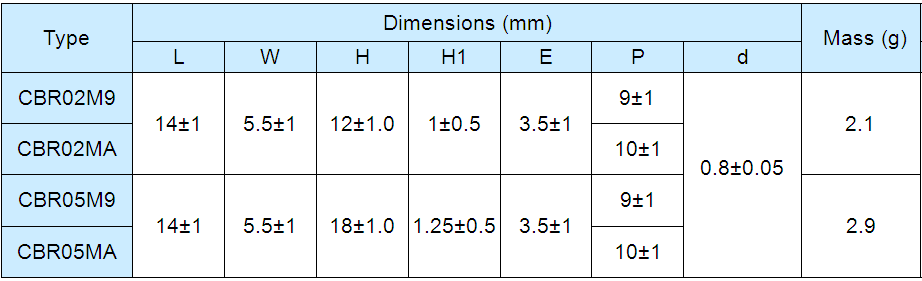

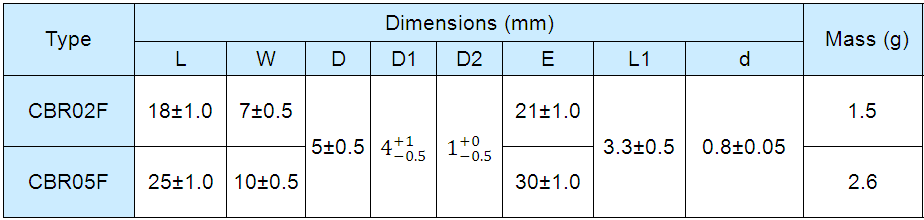

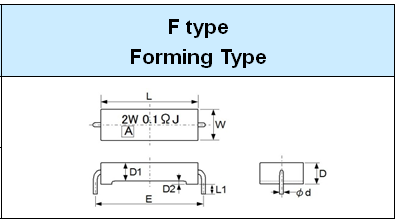

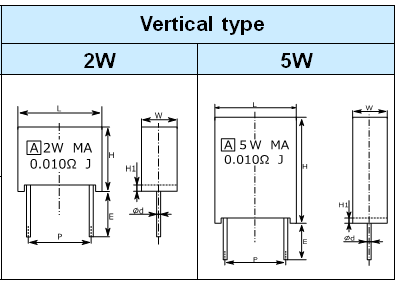

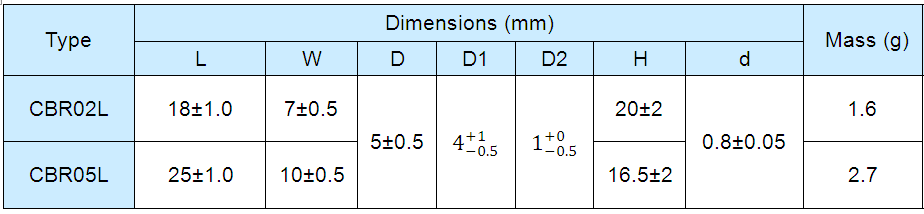

構造・尺寸

20150715 10L

20150715 11





20150715 11F

20150715 12



20150715 13M

20150715 14

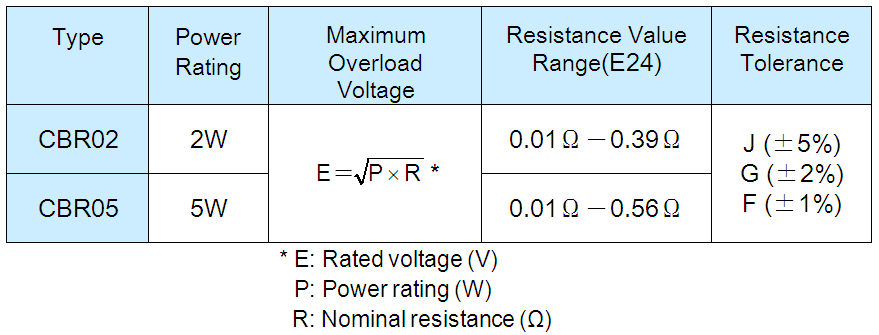

主要特性

20150715 15

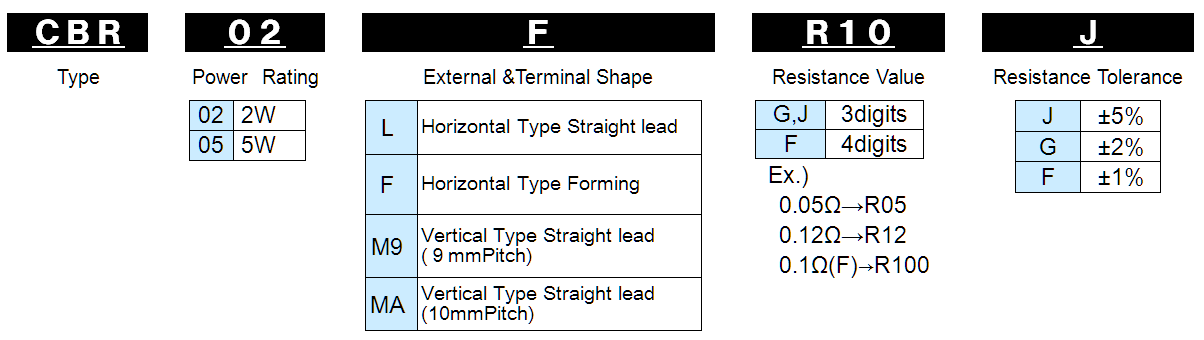

型名

2017 0222 002

負載功率曲線

20150715 17

表面温度上昇

20150715 18

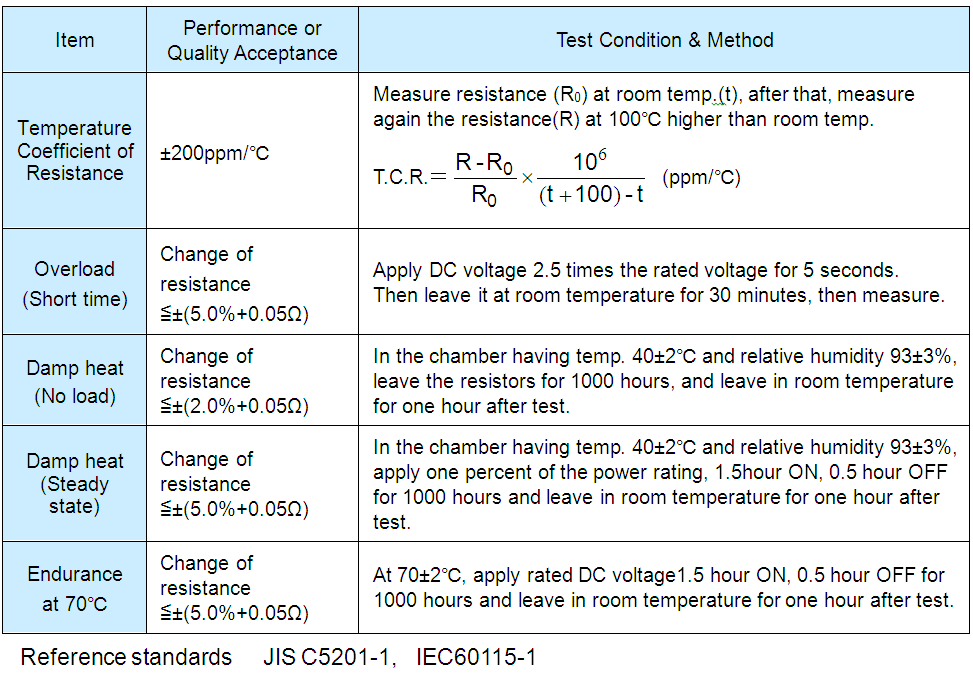

Characteristics

20150715 19
