RNV High Voltage Anti Moisture Metal Film Resistors

用途

● Inverter circuit.
● Switching power supply.
● AC adapter.

特徴

● Metal film resistor with Heat, Humidity
and pressure-proof by our own process.
● Steady reliability to high resistance.
● “UL94 V-0” authorized coating.
● RoHS compliant product.

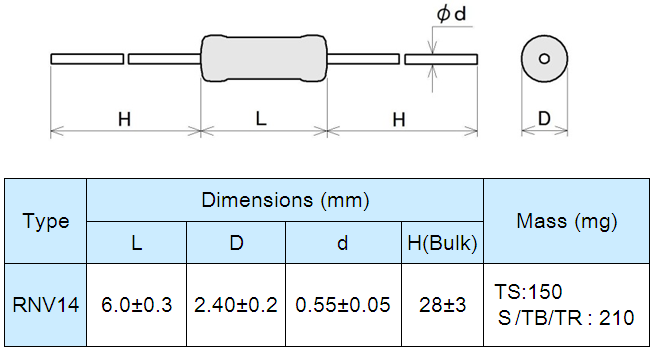

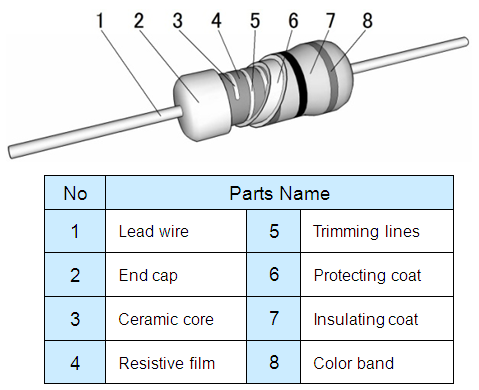

構造・尺寸

20150723 02

20150523 03



主要特性

20150723 03

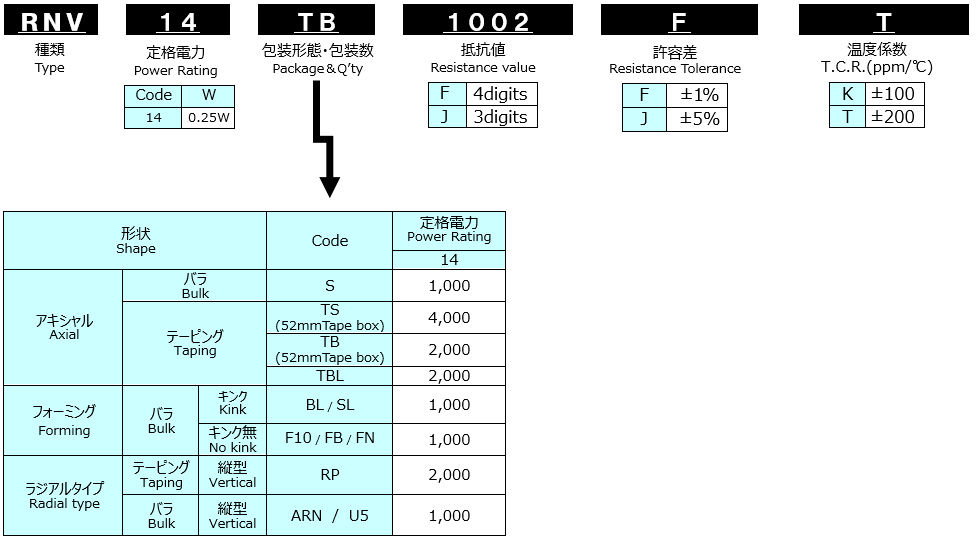

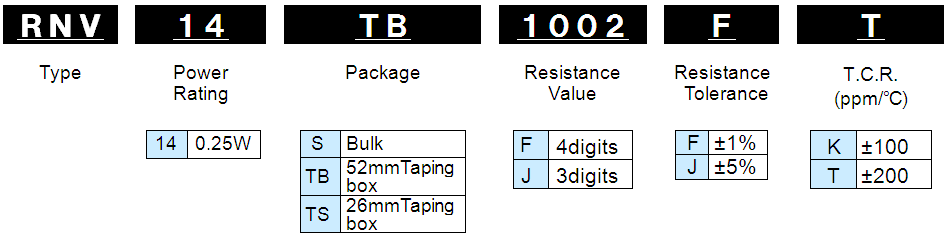

型名

20150723 04

負載功率曲線

20150723 05

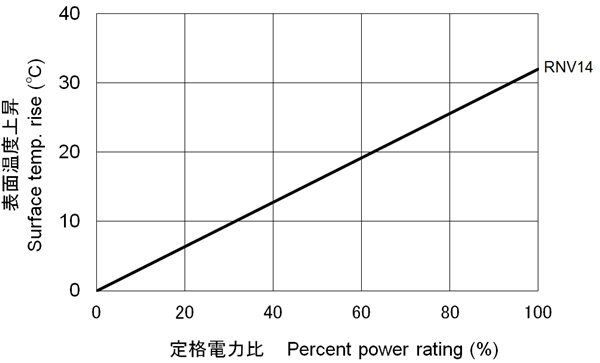

表面温度上昇

20150723 06

Characteristics

20150723 07

Caution

20150723 08
