RWS_M Cement Resistors (Vertical Type Enclosed Metal Oxide Film Resistors)
用途
● For power supply.
● Current sensing
特徴
● Metal oxide film resistors enclosed type
● Prevention of explosive noise and ignition at the breakdown (overload)
● RoHS, REACH compliant
構造・尺寸
![20150722 06](https://www.akaneohm.com/wp-content/uploads/2015/07/20150722-06.png)
![20150722 07](https://www.akaneohm.com/wp-content/uploads/2015/07/20150722-07.png)

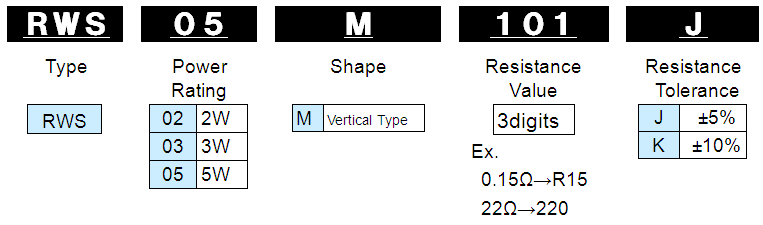

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWS形名20230424.png)

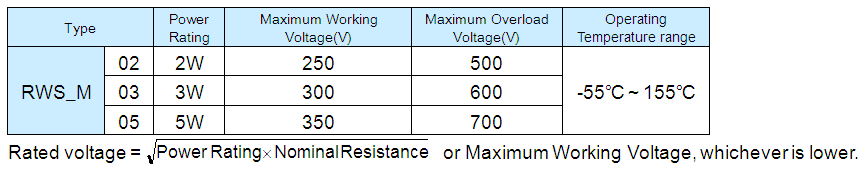

Power Rating
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWS-01-220119.png)

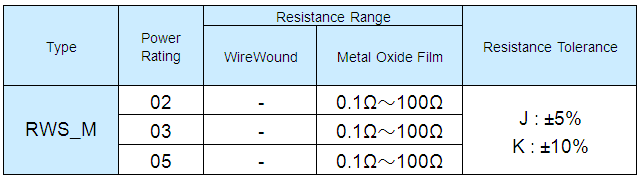

Resistance Range
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RWS-02-220119.png)
