RNS Flameproof Ultra Small Metal Film Resistors
用途
● Replacement of metal oxide film resistor
● Miniaturization of mounting board
● High voltage circuit (as LED)
特徴
● Very small and high-power rating
(1 rank smaller than miniature size)
● Resistant to high voltage
● Possible to make precision tolerance(0.5%)
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant

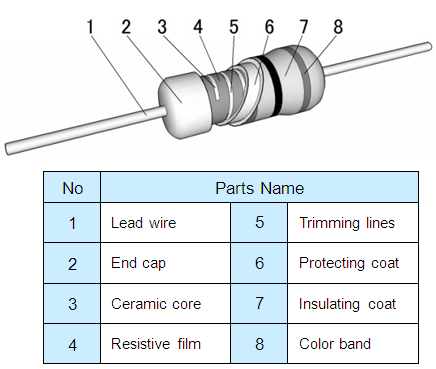

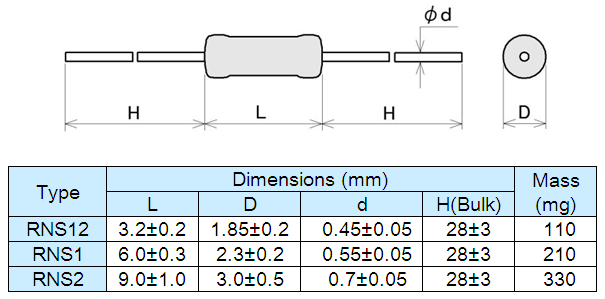

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RNS-01-220615.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/11/RNS-02-220117.png)
主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RNS-20210225-E.png)
型名
![](https://www.akaneohm.com/wp-content/uploads/2015/07/RNS-How-to-Order-20230701.png)
負載功率曲線
![20150723 14](https://www.akaneohm.com/wp-content/uploads/2015/07/20150723-14.png)
表面温度上昇
![20150723 15](https://www.akaneohm.com/wp-content/uploads/2015/07/20150723-15.png)
Characteristics
![20150723 16](https://www.akaneohm.com/wp-content/uploads/2015/07/20150723-16.png)
