HDM High Reliability Humidityproof Type Special Film Resistors
用途
● Inverter circuit
● Switching power supply
● AC adapter
特徴
● High reliability resistors utilizing versatility of carbon film resistors
● Long life, high moisture-resistant
● RoHS, REACH compliant

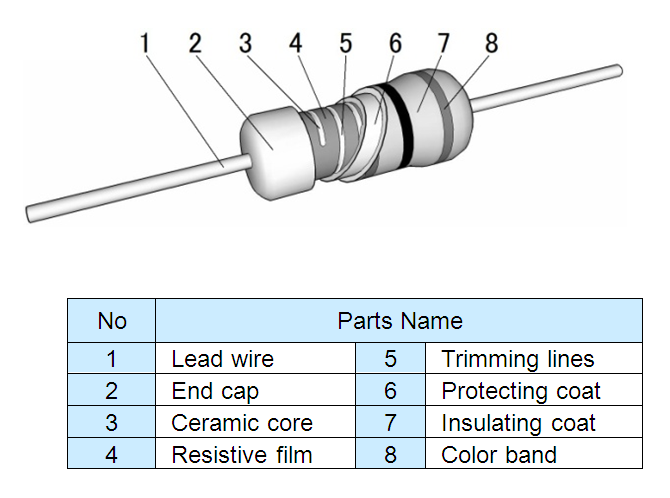

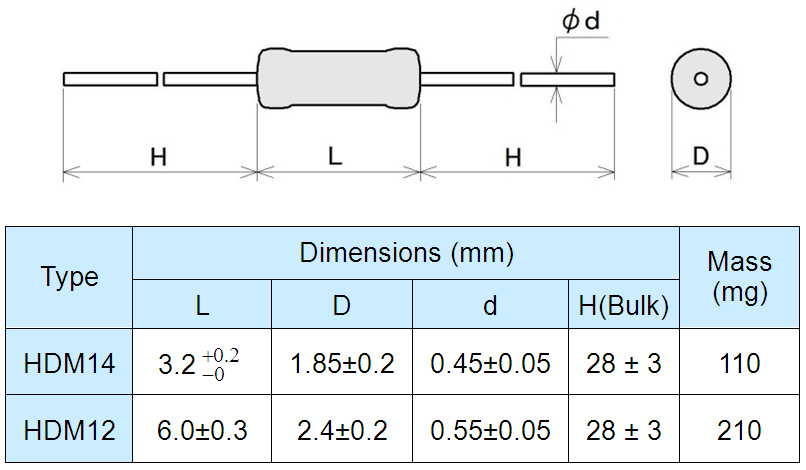

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2014/07/RDF-RDMF-01-220117.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/11/HDM-02-220117.png)
主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/11/HDM-03-220117.png)

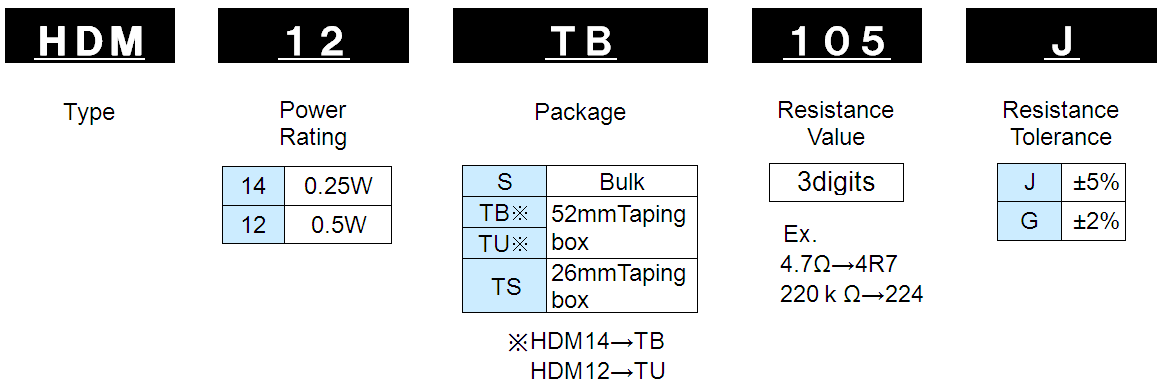

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/HDM-How-to-Order-20230701.png)
負載功率曲線
![20150724 05](https://www.akaneohm.com/wp-content/uploads/2015/07/20150724-05.png)
表面温度上昇
![20150724 06](https://www.akaneohm.com/wp-content/uploads/2015/07/20150724-06.png)

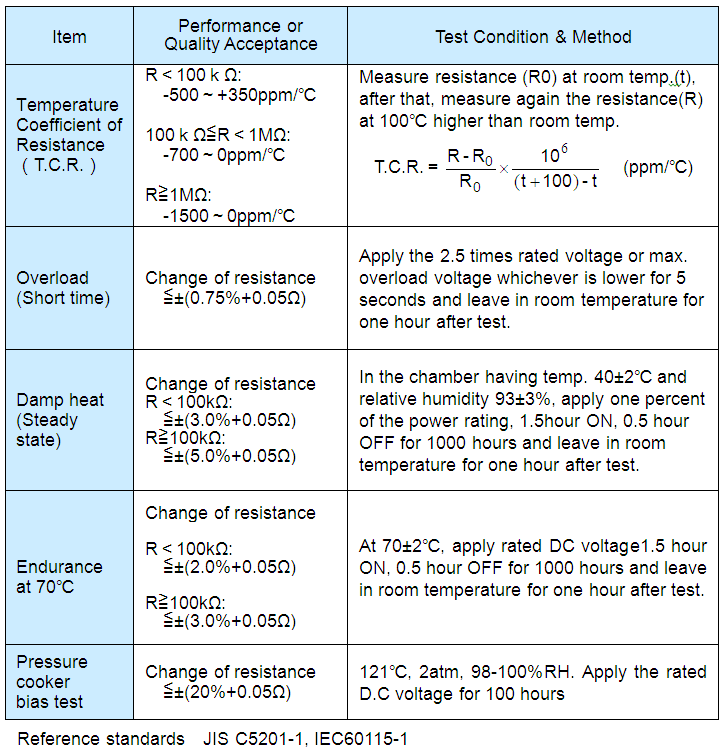

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/11/HDM-04-220117.png)
