RWF/RWFN Flameproof Miniature Type Wirewound Resistors

用途

● Current detection.
● To prevent inrush current.

特徴

● Excellent ability of Anti surge and Anti pulse.
● Correspond to lead forming.
● “UL94 V-0” authorized coating.
● RoHS compliant product.

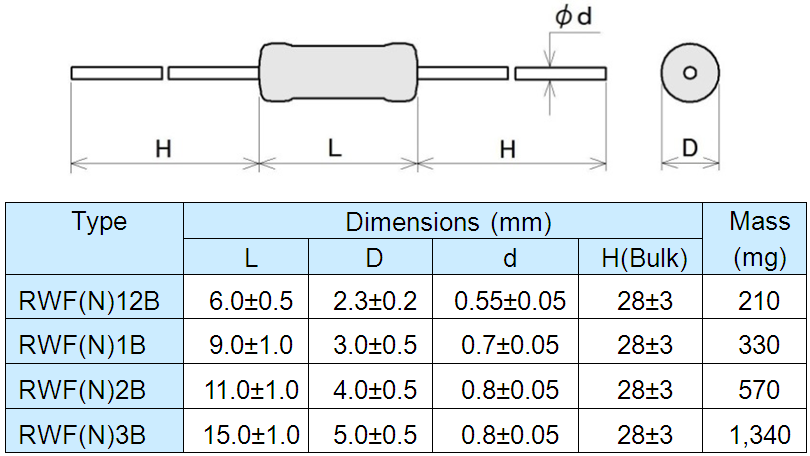

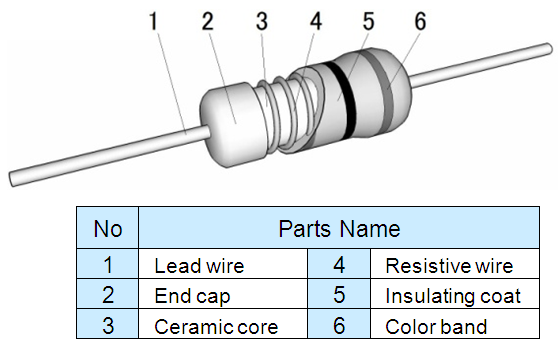

構造・尺寸

20150721 11



20150721 12

主要特性

20150721 13

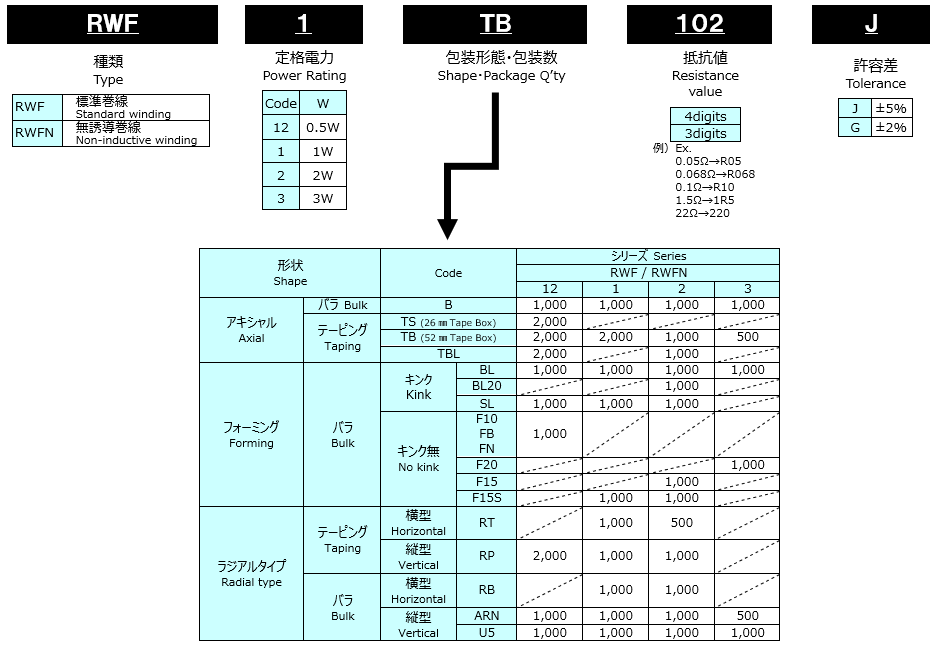

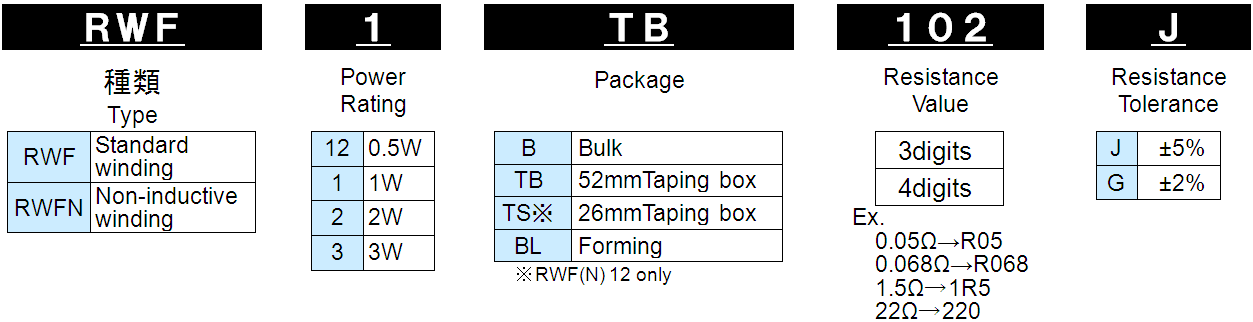

型名

20150721 14

負載功率曲線

20150721 15

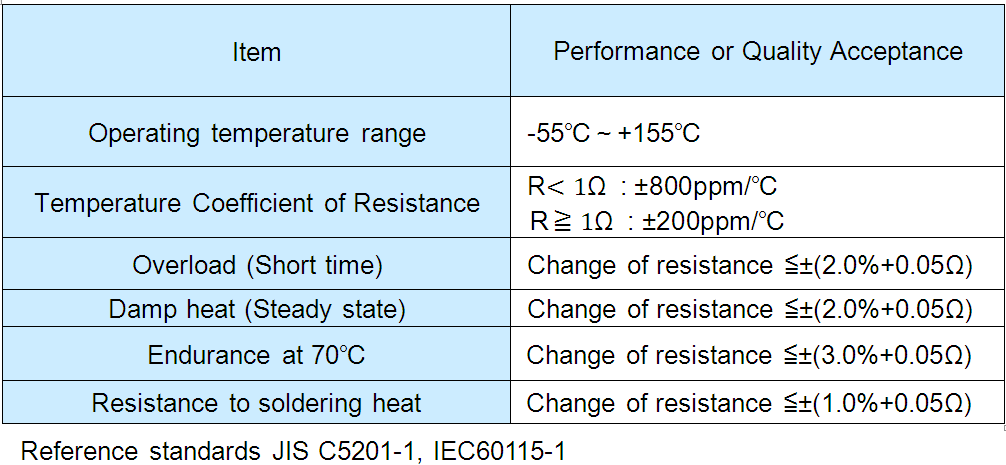

Characteristics

20150721 16

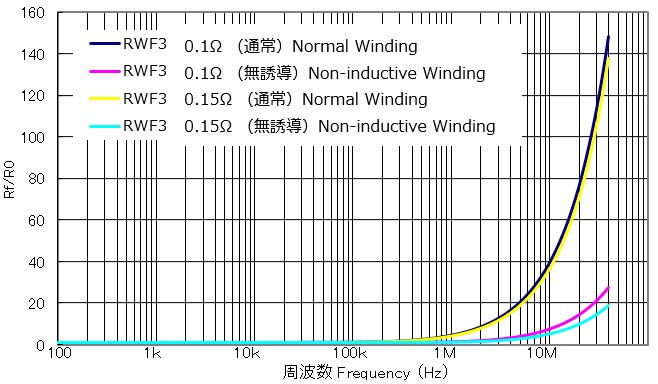

Reference Data: Frequency-Impedance Characteristics

freqchar_2w

freqchar_3w
                     (Equipment: Impedance Analyzer HP4194A)

               ※Rf/R0 : Ratio of direct current impedance (R0) and alternating current impedance (Rf)
