FRN Fixed Fusing Resistors

用途

● Circuit protection.

特徴

● Fuse resistor which generally function
as a normal resistor.
● Stable characteristic of Fuse make it possible
for quick cut off circuit at unusual circumstances.
● “UL94 V-0” authorized coating.
● RoHS compliant product.

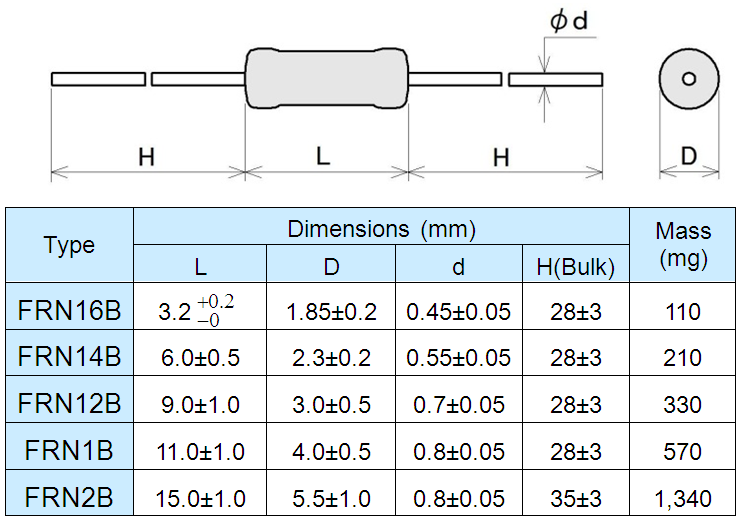

構造・尺寸

20150721 18



20150721 19

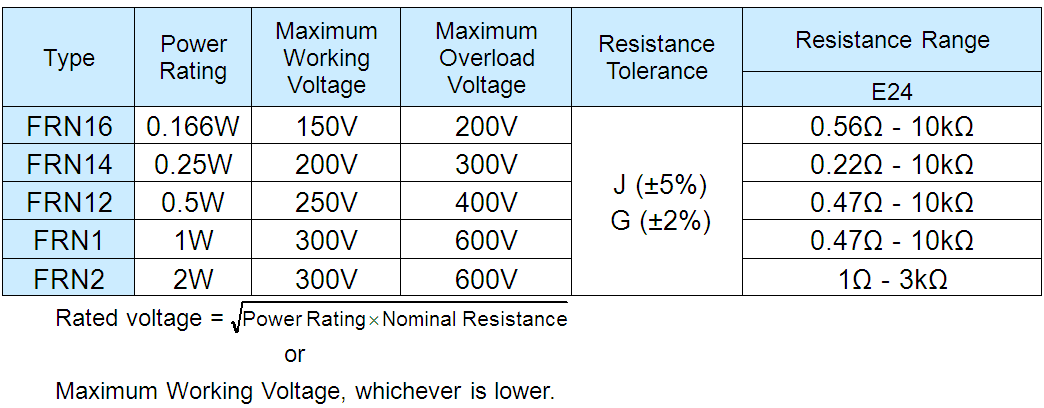

主要特性

20150721 20

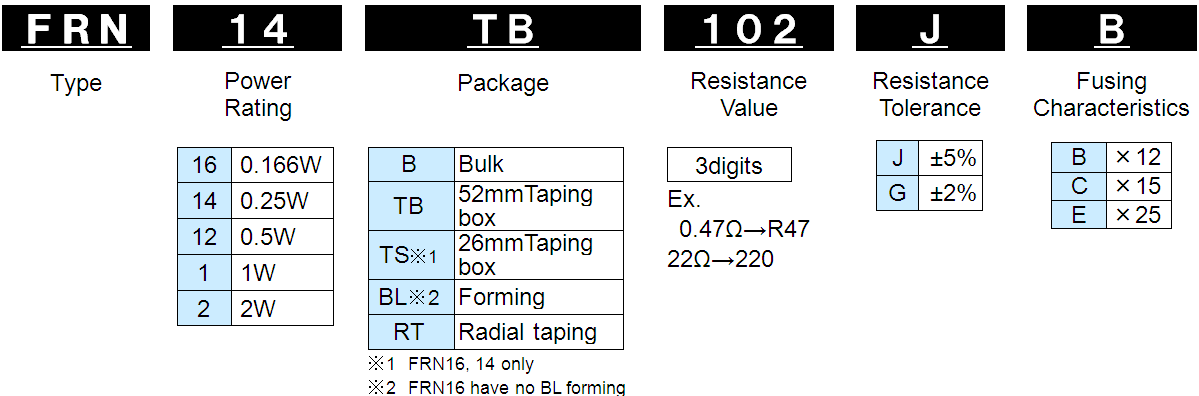

型名

20150721 21

負載功率曲線

20150721 22

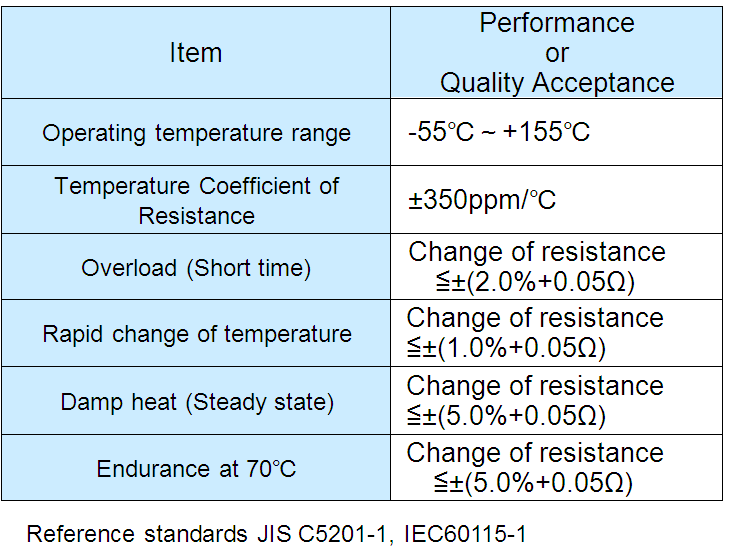

Characteristics

20150721 23

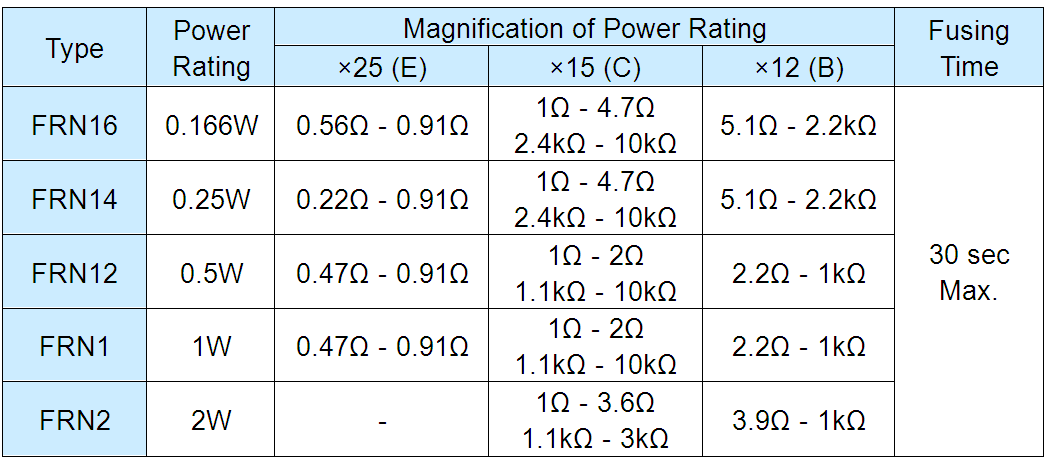

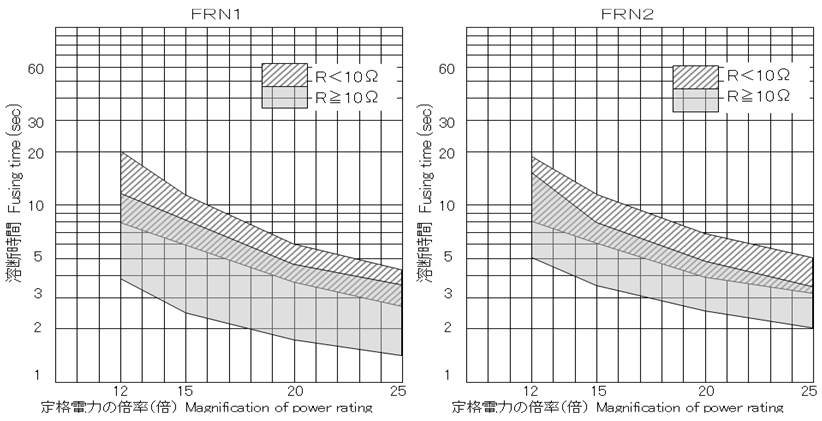

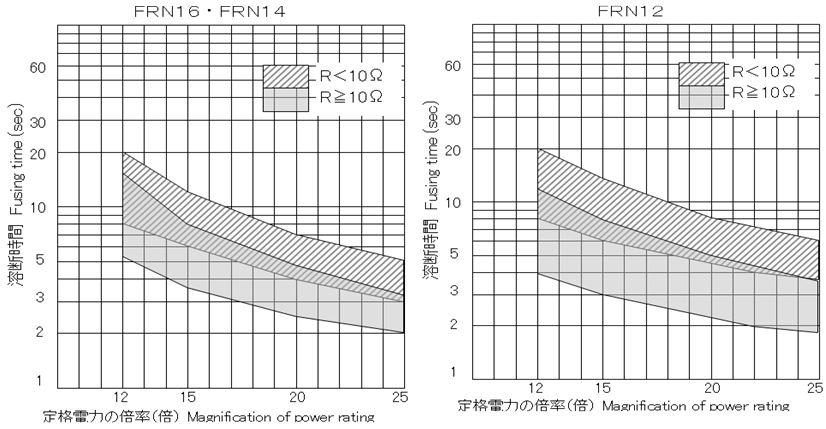

Fusing Characteristics

20150721 24



20150721 25



20150721 26



20150721 27
