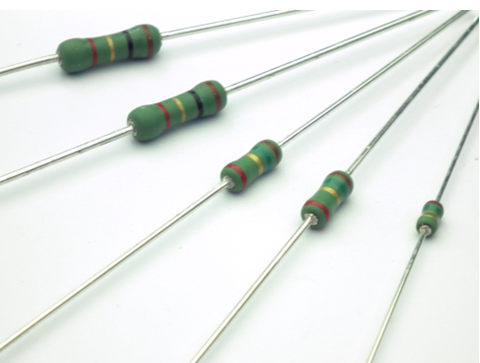

RDF/RDMF Flameproof Carbon Film Fixed Resistors

用途

● Switching power supply
● Inverter circuit.
● AC adapter.

特徴

● General purpose resistor with nonflammable coating.
● “UL94 V-0” authorized coating.
● RoHS compliant product.

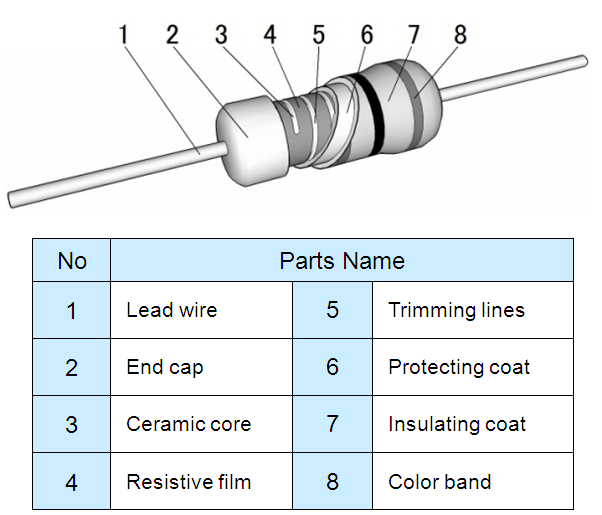

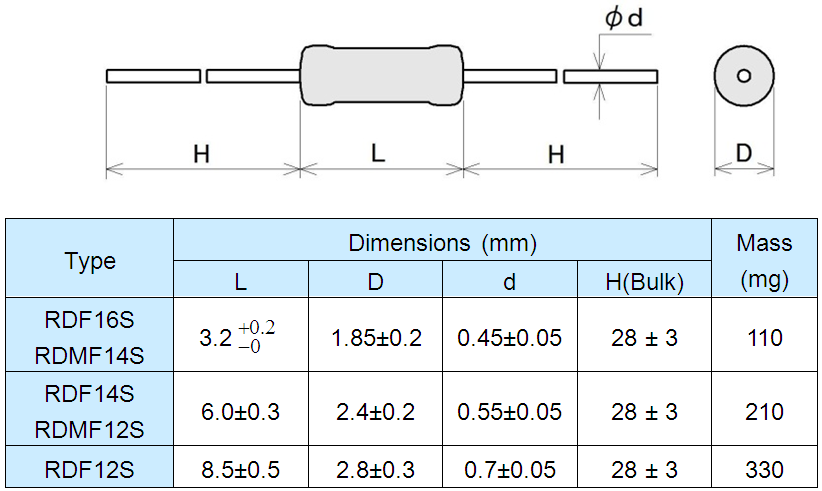

構造・尺寸

20150728 11



20150728 12

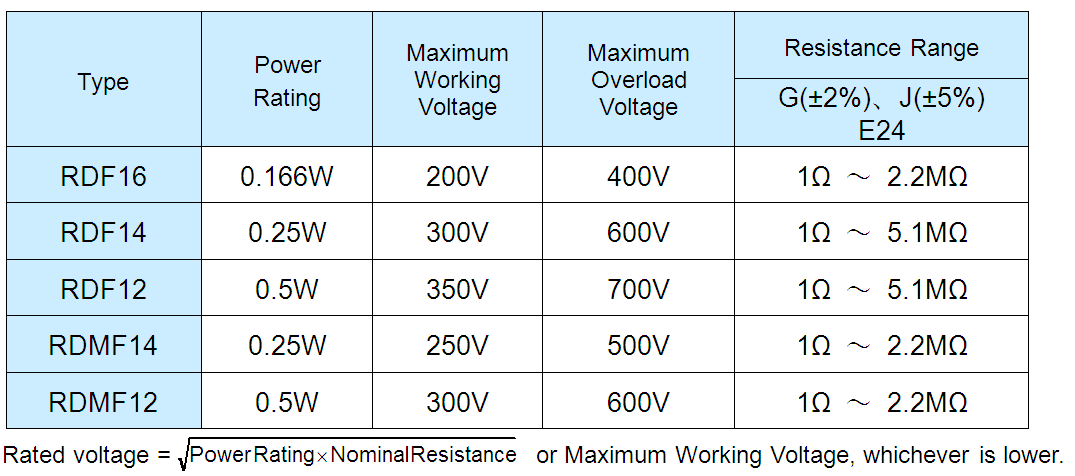

主要特性

20150728 13

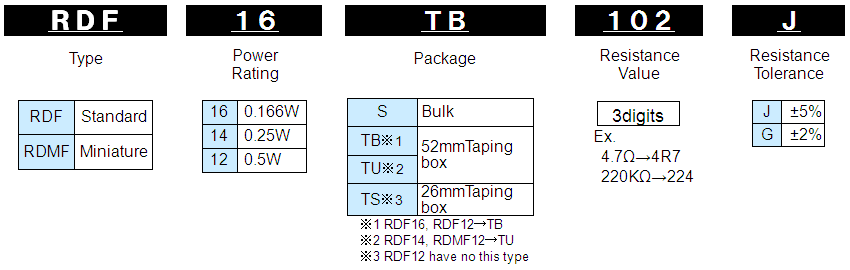

型名

20150728 16

負載功率曲線

20150728 14

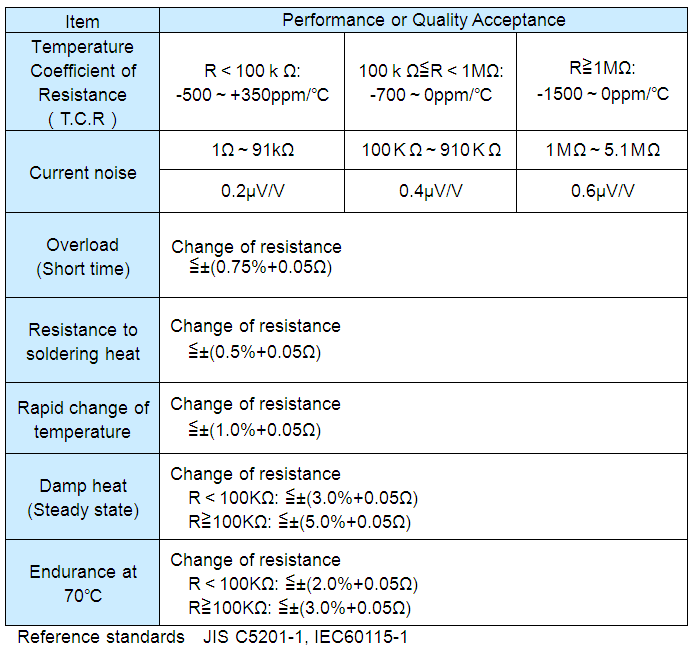

Characteristics

20150728 15
