HCJ Surface Mount High Current Jumper Chip Resistors
用途
● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application
特徴
● Chip size from 0201 to 2512
● Max. resistance value less than 3mΩ for 0201 0402, less than 0.5mΩ for all other sizes
(2010 is less than 0.2mΩ)
● Qualified to AEC-Q200
● RoHS/Reach compliant – Lead free, Halogen-free

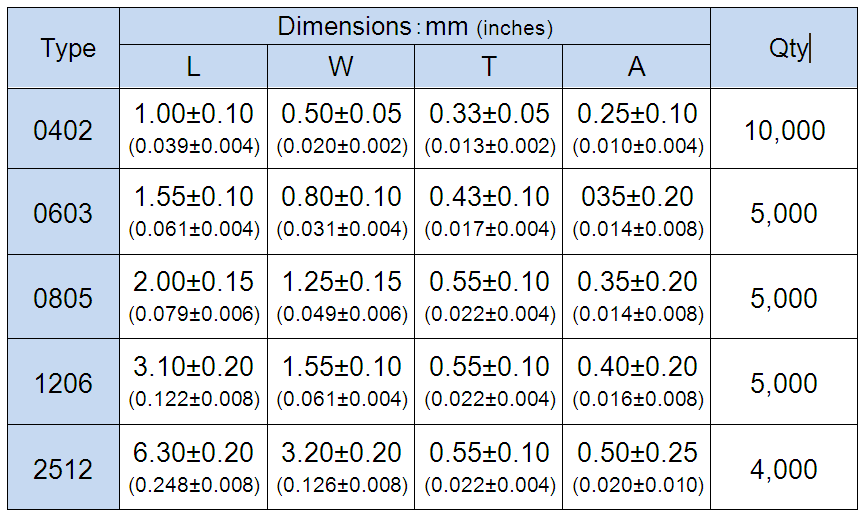

構造・尺寸
![20150827 11](https://www.akaneohm.com/wp-content/uploads/2015/08/20150827-11.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/HCJ-02-220114.png)

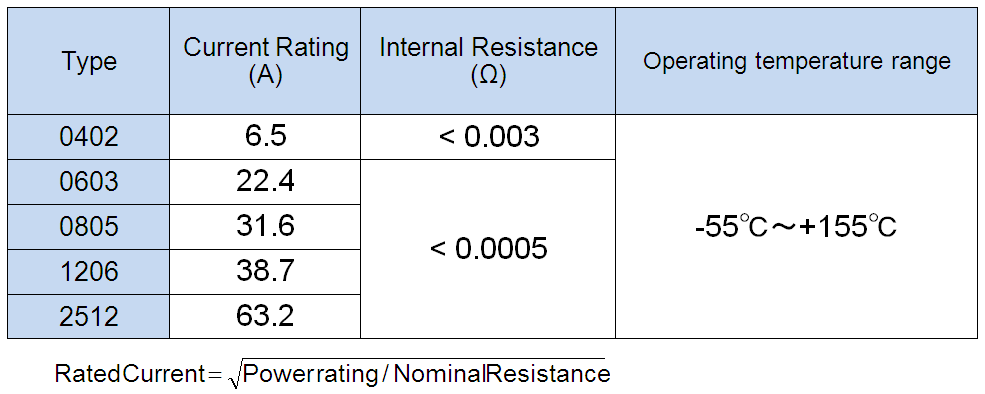

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/07/HCJ-01-20220127.png)

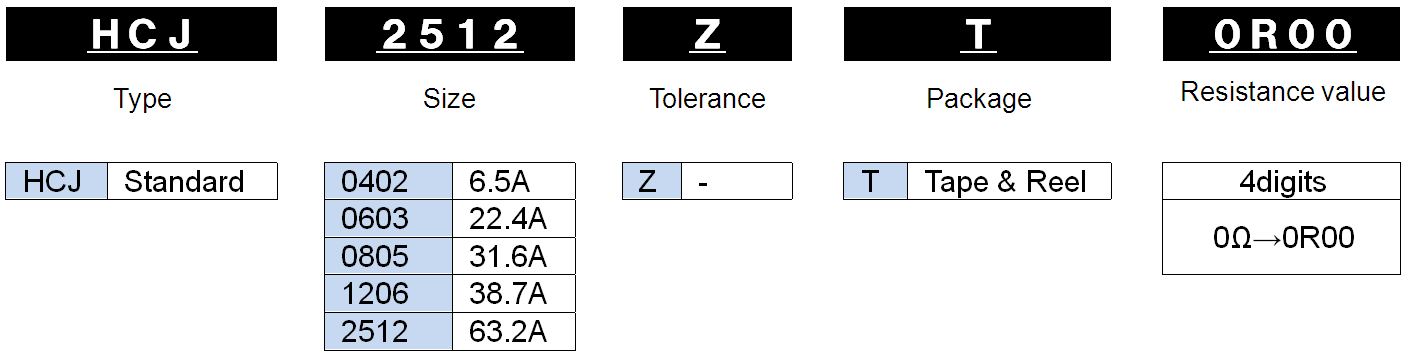

型名
![](https://www.akaneohm.com/wp-content/uploads/2015/07/HCJ-03-220114.png)
負載功率曲線
![20150827 15](https://www.akaneohm.com/wp-content/uploads/2015/08/20150827-15.png)

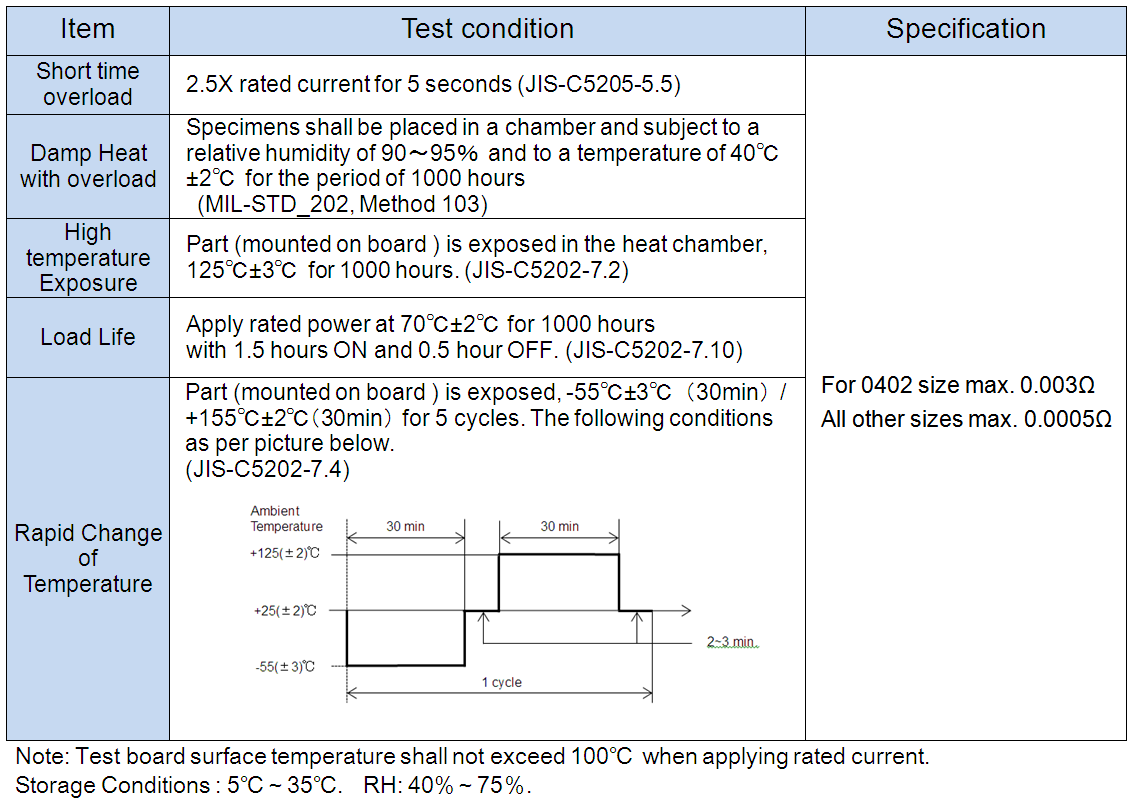

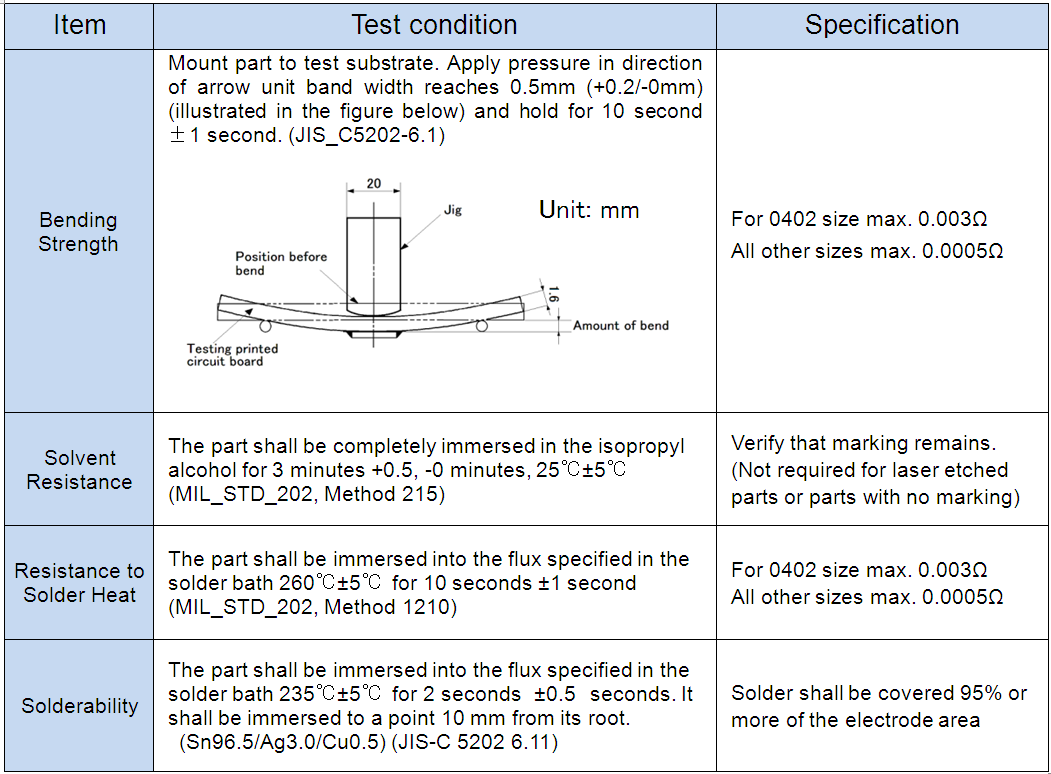

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/07/HCJ-04-220114.png)
