CSS/CSSH Ultra Precision Current Sensing Chip Resistors
用途
● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application
特徴
● High power metal alloy current sensing resistor
● High temperature performance up to 225℃;
for operation up to 275℃, contact factory
● Low thermal EMF (<1μV/℃)
● Proprietary processing technique produce extremely low resistances values
● RoHS, REACH compliant / lead-free, Halogen-free

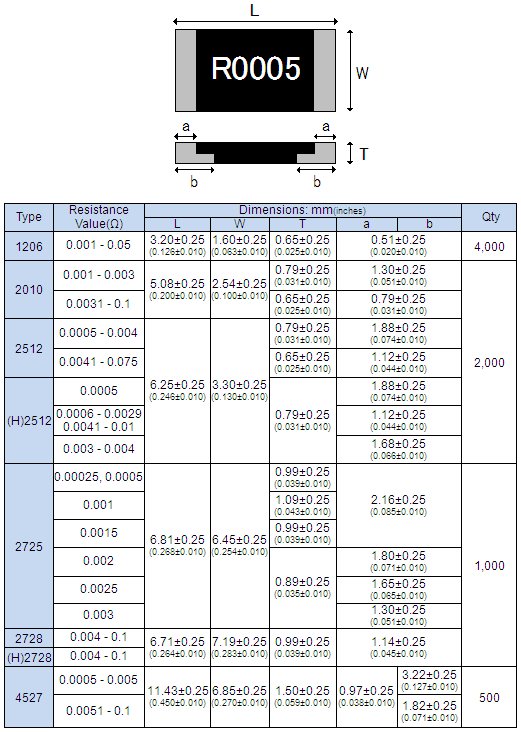

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-01-20220114.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-Construction-20230616R.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-02-20220114.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-22-20220114.png)

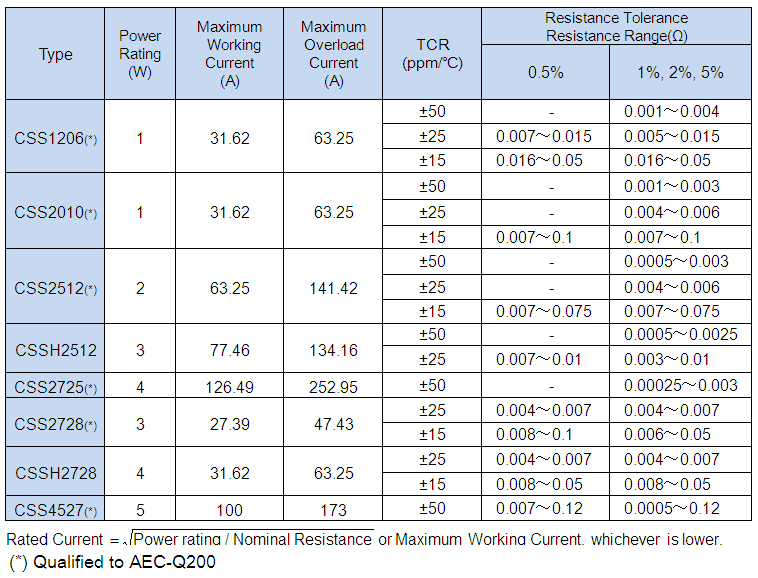

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-01-20220128.png)

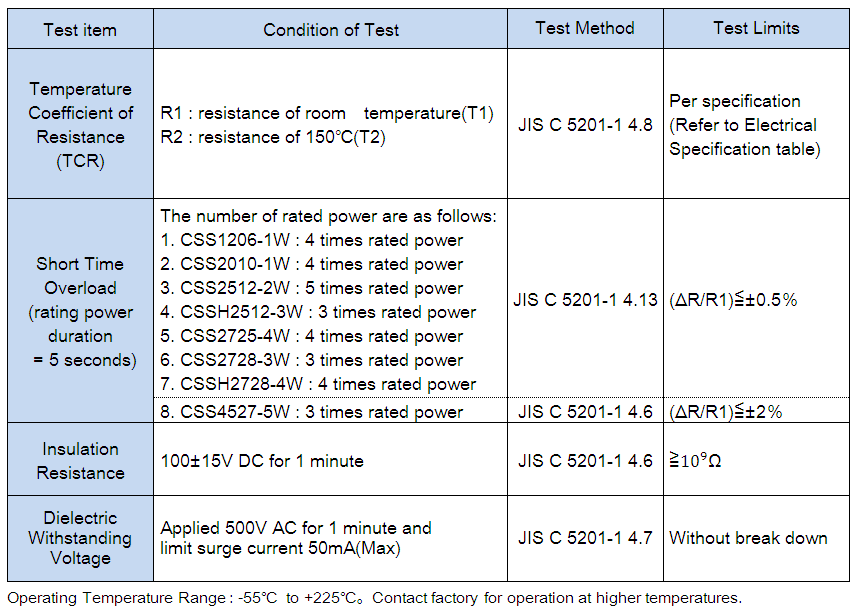

![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-Specification-20230616.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-03-20220128.png)

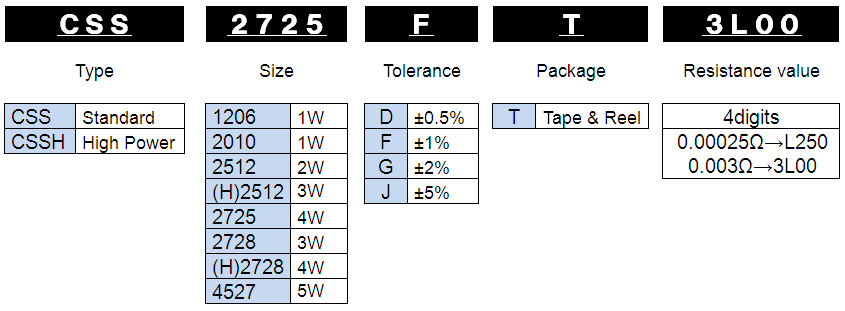

型名
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-05-20220114.png)

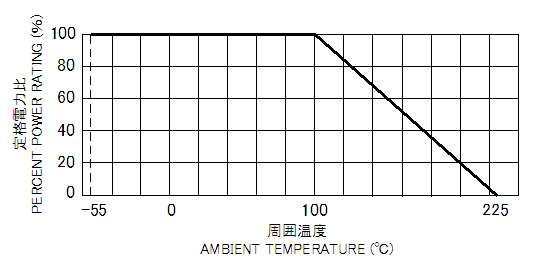

負載功率曲線
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-06-20220114.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-07-20220114.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-08-20220114.png)
Caution
![](https://www.akaneohm.com/wp-content/uploads/2015/11/CSS-CSSH-30-20220114-1.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/07/CSS-CSSH-09-20220114.png)
