CR Thick Film Chip Resistors
用途
● For general electric instrument.
特徴
● CR series consist of 8 types from 0201 to 2512 inch.
● High reliability with triple layers of electrodes & metal graze thick film resistive element.
● Suitable for both flow & reflow soldering.
● Taping is available for automatic pick & place machines.

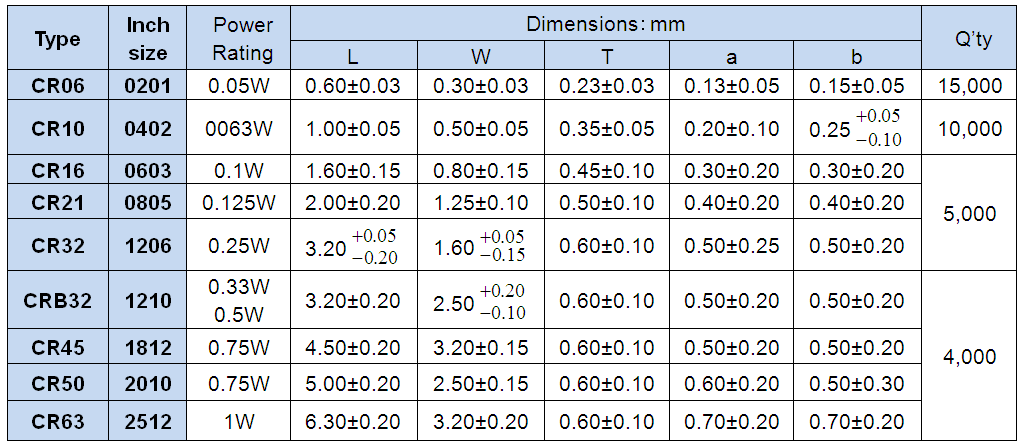

構造・尺寸
![20150828 61](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-61.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR-01.png)
主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR-02-1.png)

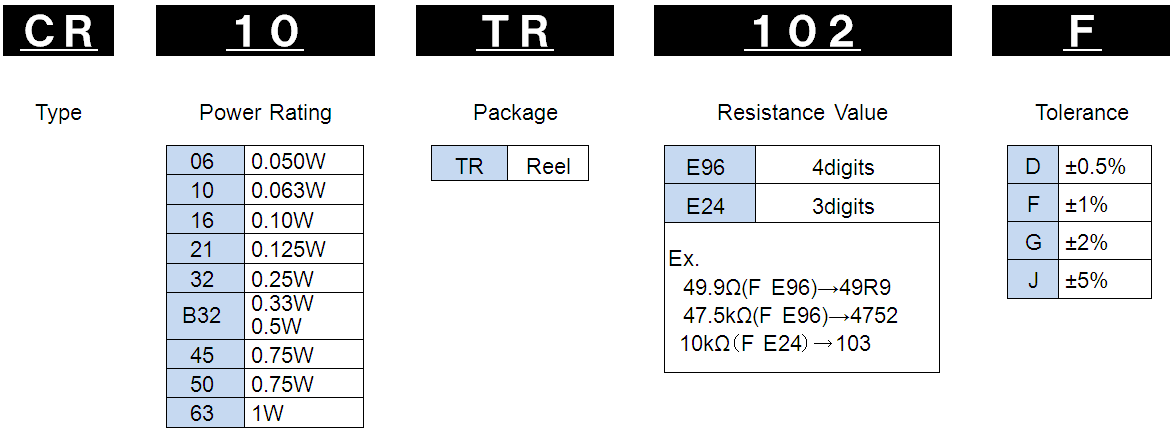

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR-03.png)

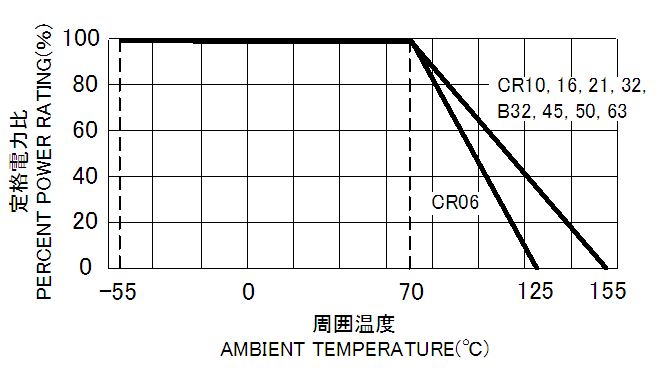

負載功率曲線
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR-04.png)
