CR Thick Film Chip Resistors(Jumper)
用途
● For general electric instrument.
特徴
● This series item are same shape with CR series.
● Consist of 9 types from 0201 to 2512 inch.
● Suitable for both flow & reflow soldering.
● Taping is available for automatic pick & place machines.

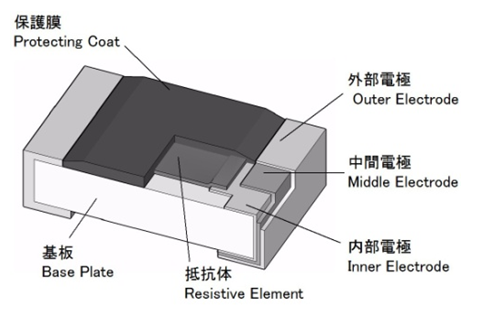

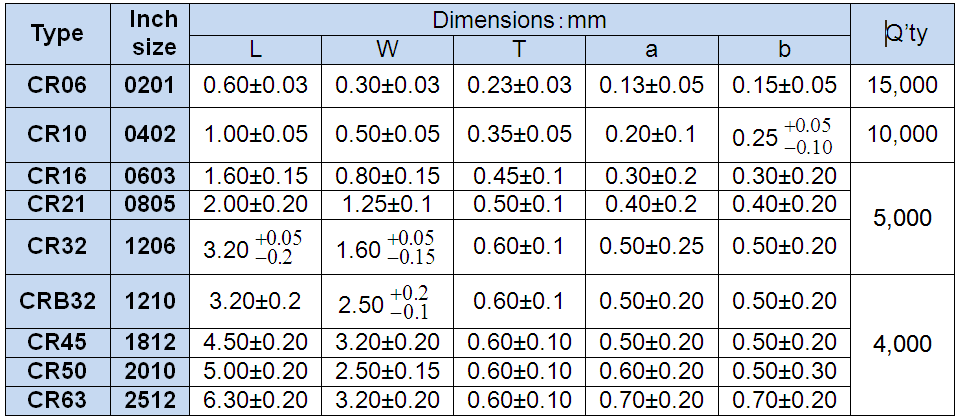

構造・尺寸
![20150828 44](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-44.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-01.png)

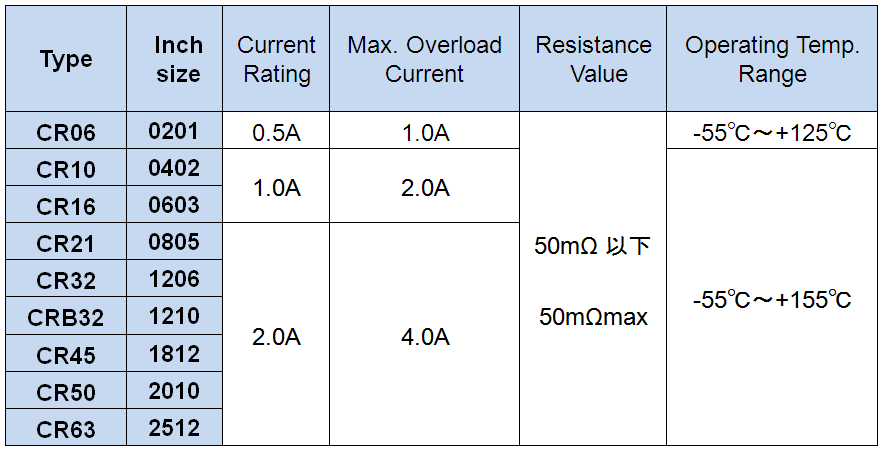

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-02.png)

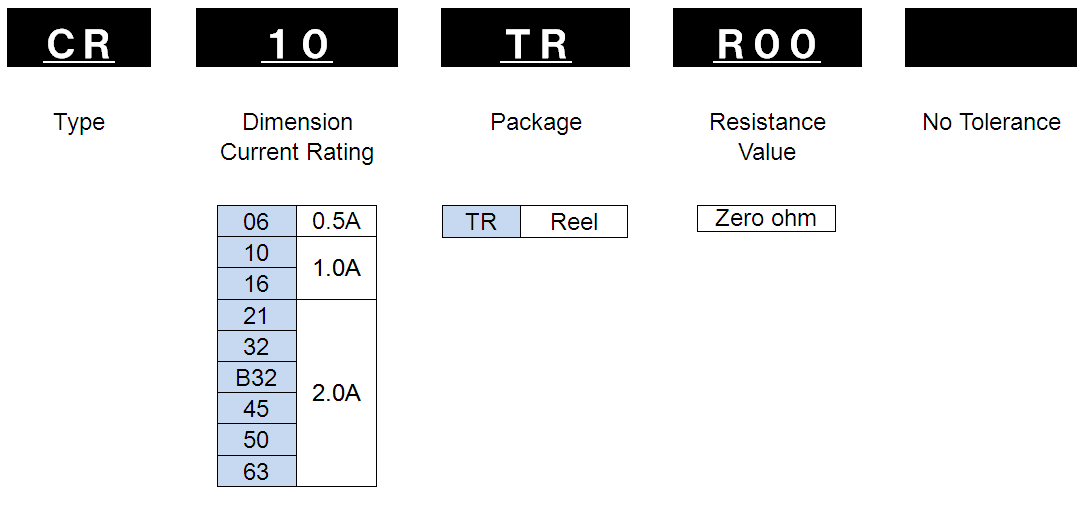

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/20220111-CR0-03.png)

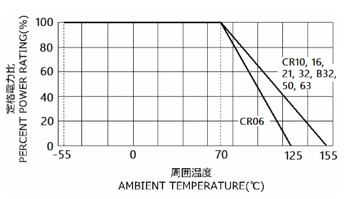

負載功率曲線
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CR-0-Power-Derating-Cuve-20230704.png)
