SPR/SPRM Special Power Type Discharge Path Resistors
Application
● Discharge circuit for primary side of power supply
● Insulation between primary side and secondary side of power supply
● Anti-surge, snubber, high voltage circuit
Features
● Safety standard (UL、c-UL)
UL1676 &c-UL(CSA22.2.No.1) File No.E214644
● Excellent in anti-surge
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

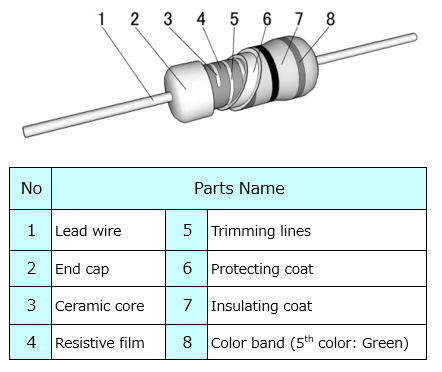

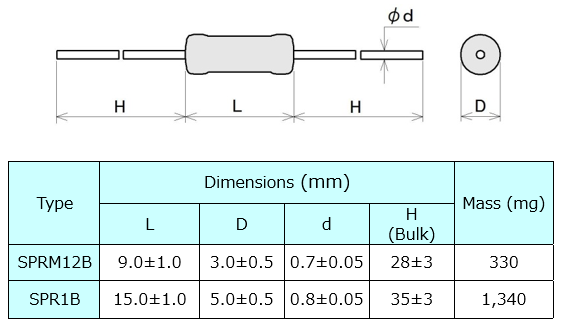

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-02-220118.png)

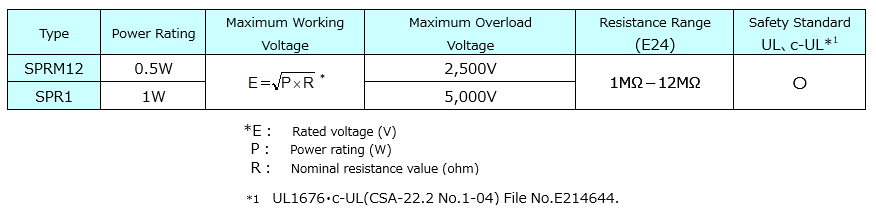

Specifications
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-03-220118.png)

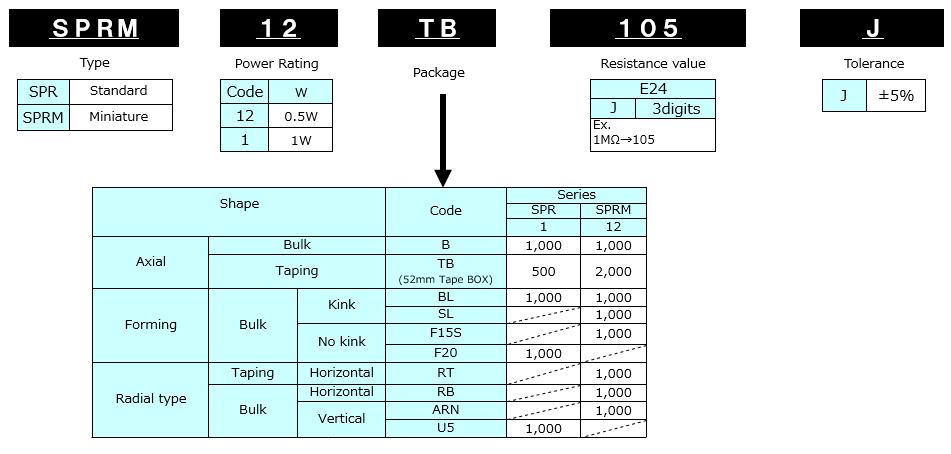

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-04-220118.png)
Power Derating Curve
![](https://www.akaneohm.com/wp-content/uploads/2015/05/SPRM5.png)
Surface Temperature Rise
![](https://www.akaneohm.com/wp-content/uploads/2015/05/SPRM6.png)

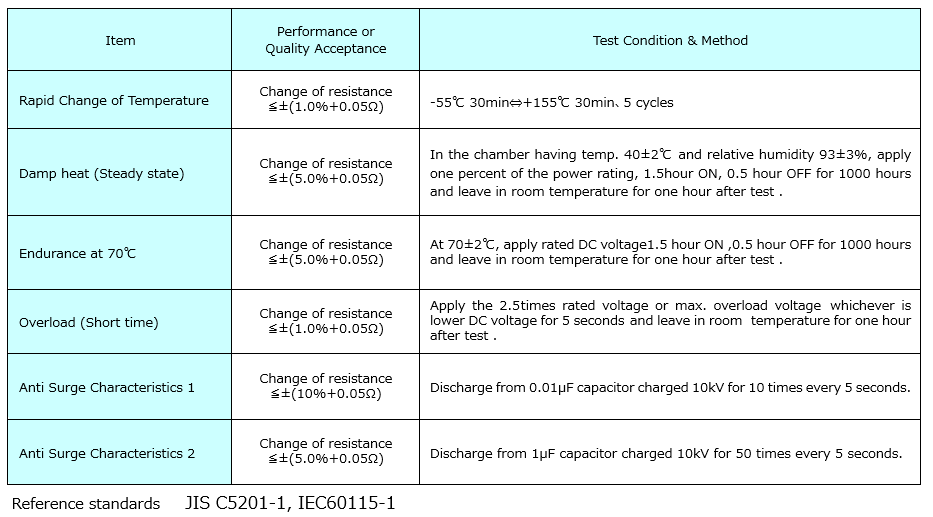

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-05-220118.png)
