CBR Current Sensing Blade Resistors
Application
● For current sensing etc.
● Excellent alternative to metal plate resistors
Features
● New structure current sensing resistors
● Compact, light, and thin type
● Possible to high precision current sensing (Resistance tolerance F % and G % are available.)
● Uses low smoke type cement
● RoHS, REACH compliant

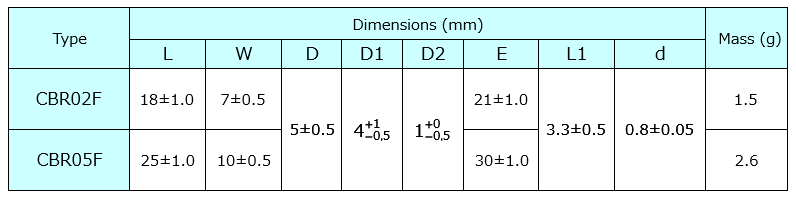

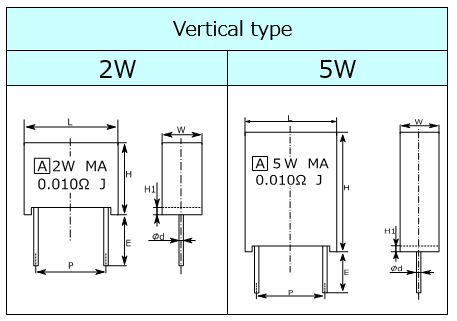

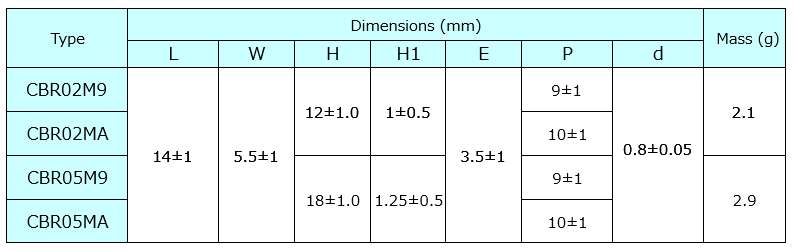

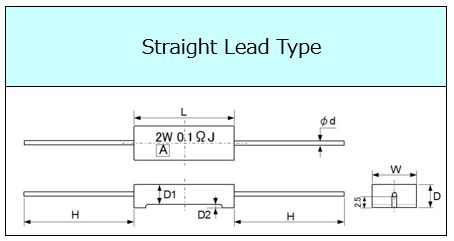

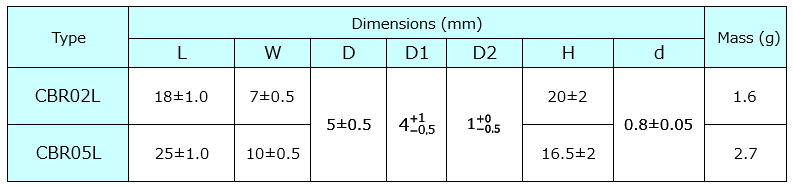

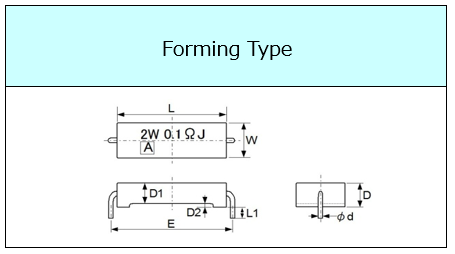

Construction・Dimensions
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CBR1.png)
Specifications
![](https://www.akaneohm.com/wp-content/uploads/2015/05/CBR2.png)

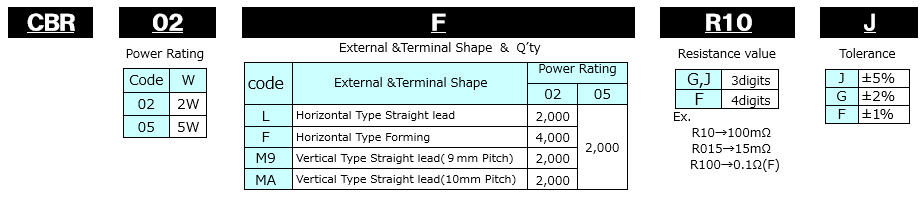

How to Code
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CBR-01-220118-1.png)
Power Derating Curve
![20150715 17](https://www.akaneohm.com/wp-content/uploads/2015/05/20150715-17.png)
Surface Temperature Rise
![20150715 18](https://www.akaneohm.com/wp-content/uploads/2015/05/20150715-18.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/05/CBR4.png)
