SPR/SPRM Special Power Type Discharge Path Resistors
用途
● Discharge circuit of Power supply primary side.
● Insulation between primary side and
secondary side of power supply.
● Anti surge, Snubber, High voltage circuit.
● Replacement Carbon Composition Resistors.
特徴
● Safety standard (UL, c-UL)
UL1676 &c-UL(CSA22.2.No.1)
File No.E214644
● Excellent in anti-surge
● Coating is flame retardant grade “UL94 V-0”.
● RoHS, REACH compliant
● Replacement for solid resistor

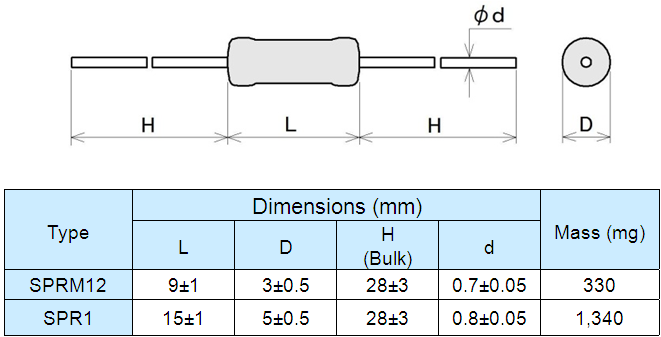

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-01-220118.png)
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-02-220118.png)

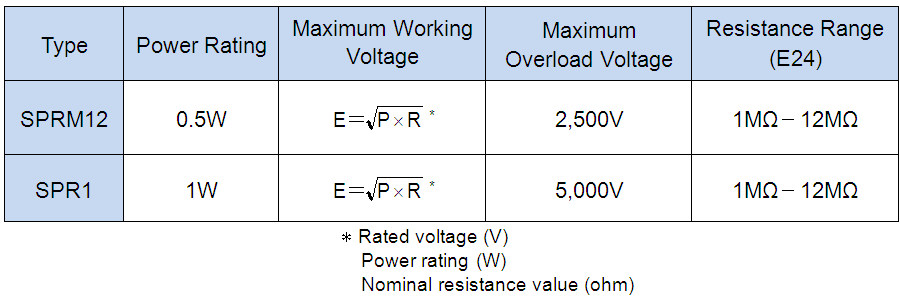

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-03-220118.png)

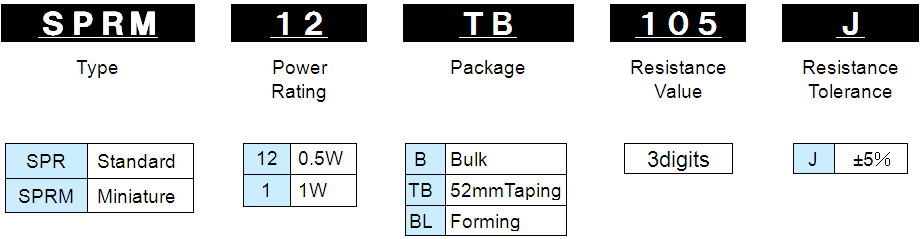

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-04-220118.png)
負載功率曲線
![20150715 06](https://www.akaneohm.com/wp-content/uploads/2015/05/20150715-06.png)
表面温度上昇
![20150715 07](https://www.akaneohm.com/wp-content/uploads/2015/05/20150715-07.png)

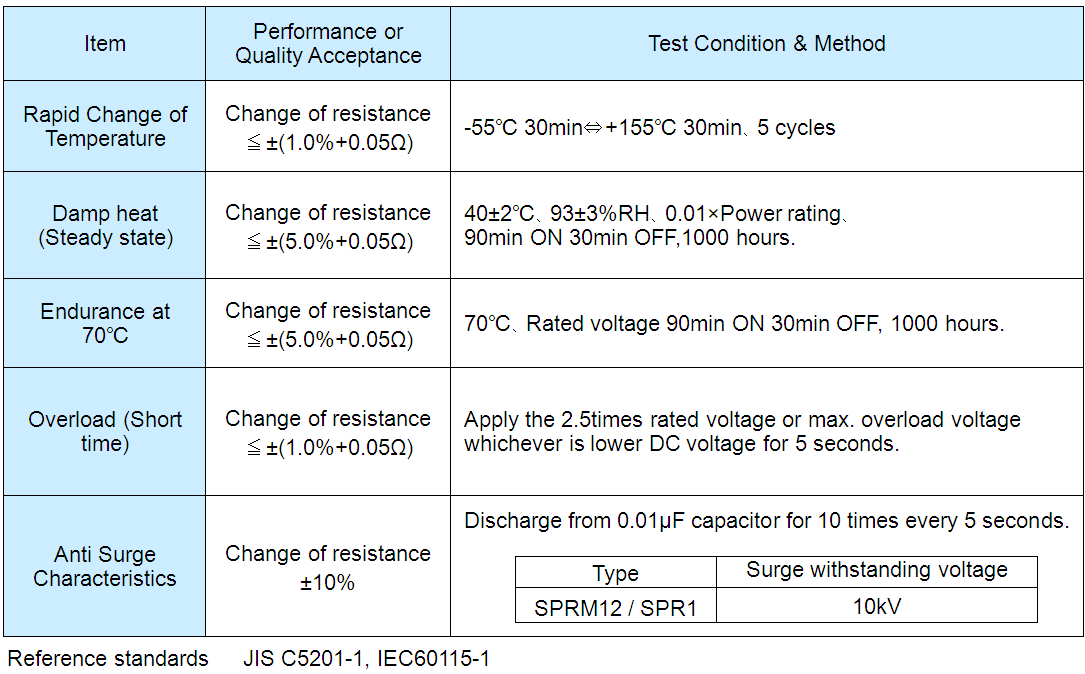

Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/07/SPR-SPRM-05-220118.png)
