RWT Thermal Fuse Incorporated Cement Resistors
用途
● Preventive inrush current for Power supply circuit.
● Protect Circuit from the case of overload and overheat.
特徴
● Reliable and promptly current break ability with
unity structure thermal fuse and wirewound resistors.
● Standard type is little smoke for Reliable design.
● Excellent anti surge ability is ranked in a top class.
● RoHS compliant product.

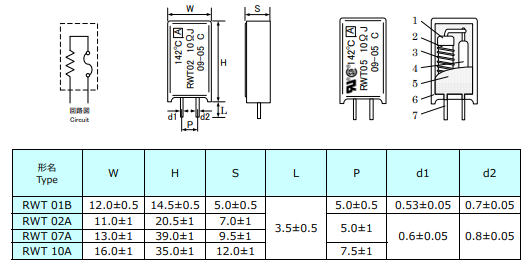

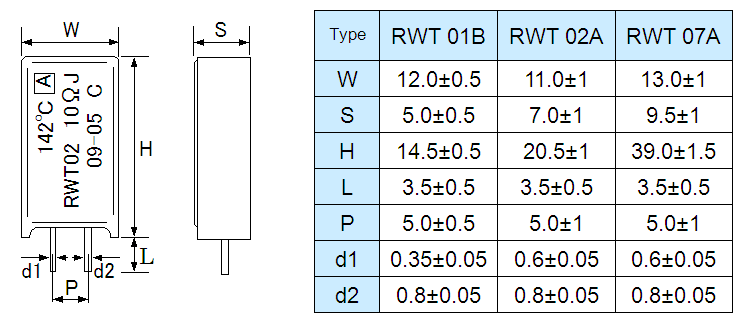

構造・尺寸
![](https://www.akaneohm.com/wp-content/uploads/2015/11/スクリーンショット-2021-11-19-095715-rwt4.png)

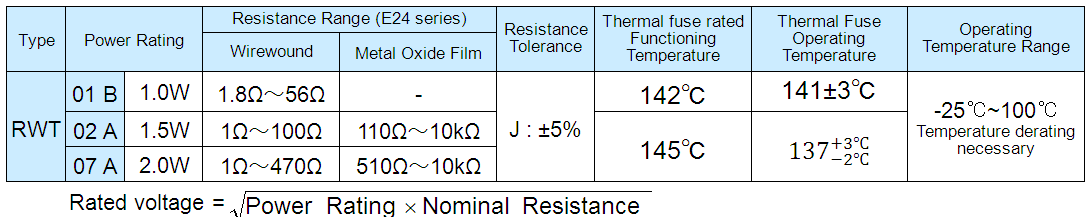

主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094349-rwt2.png)

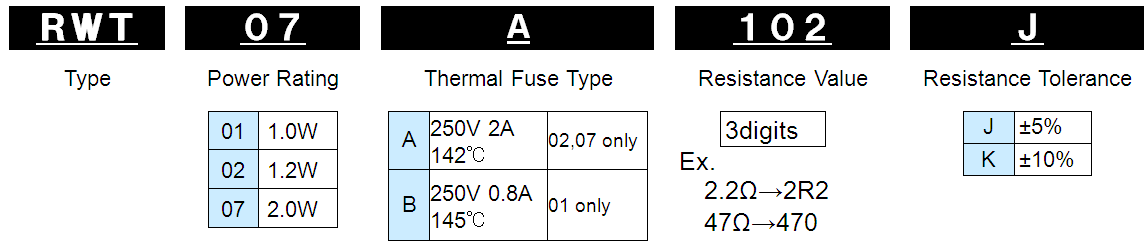

型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094626-rwt3.png)

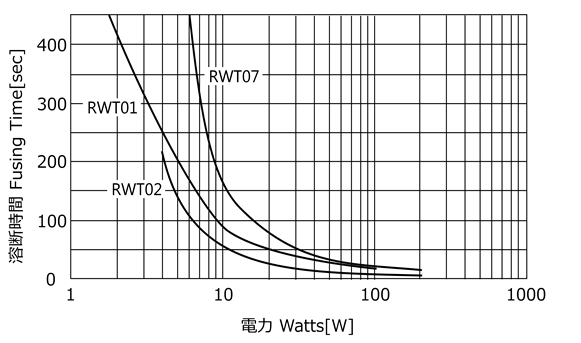

Fusing Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2014/07/スクリーンショット-2021-11-19-094803-rwt4.png)
