RVC Medium Voltage Thick Film Chip Resistors

特徴

● Voltage ratings 2x or more compared to standard chip resistors
● Values up to 100M
● Lower resistance value may be available.(Contact factory)
● Proportionally higher pulse power capability
● RoHS, Reach compliant and halogen - free

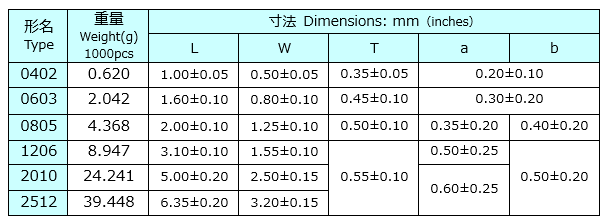

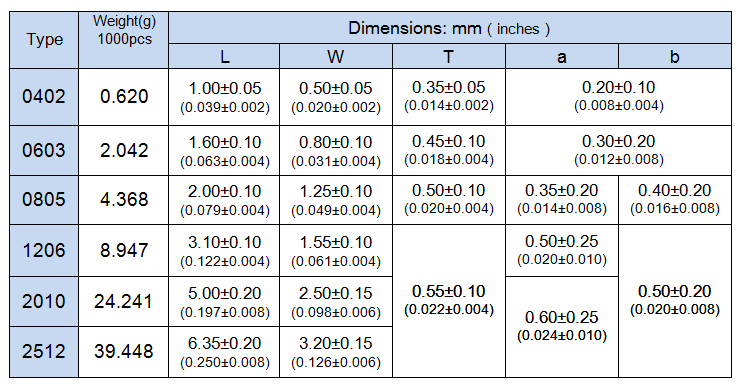

構造・尺寸

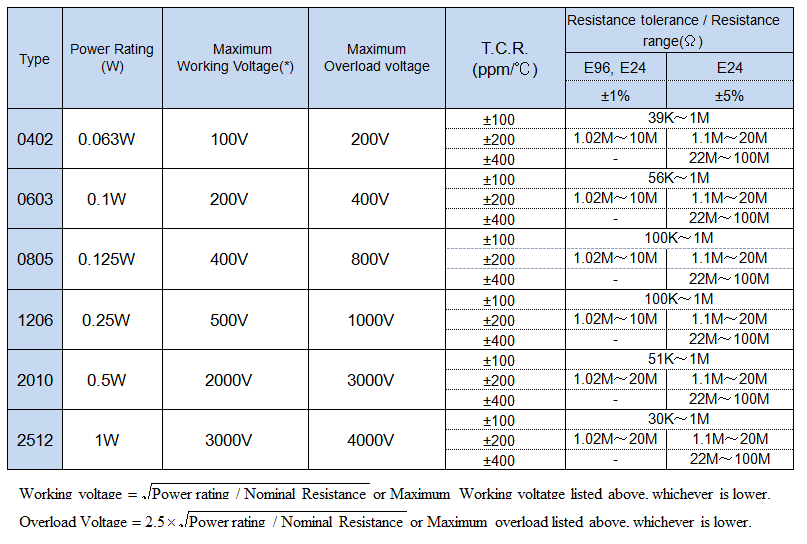

主要特性

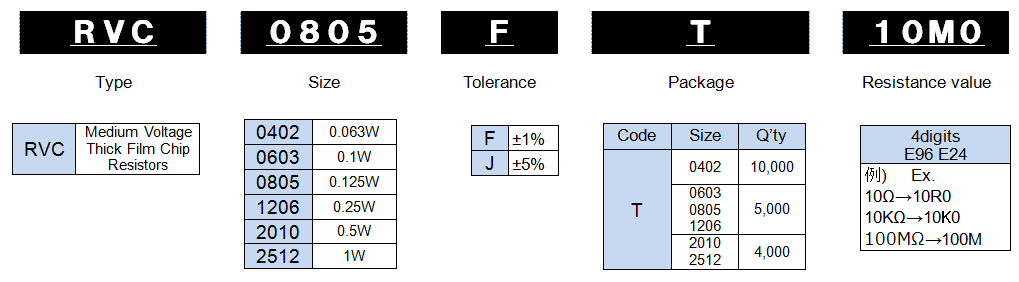

型名

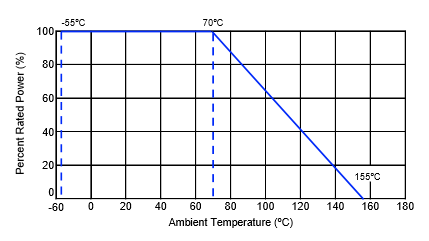

負載功率曲線

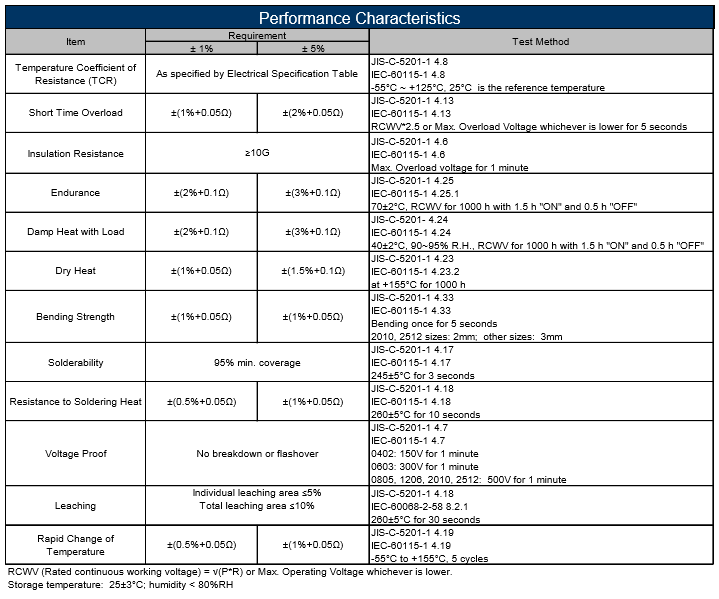

Characteristics
