product

RNCF Precision Thin Film Chip Resistor

用途

● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application

特徴

● Precision tolerances to ±0.01%
● TCR down to ±2ppm/℃
● Wide R-value range
● Lower values may be available.
● Contact factory for tighter tolerances.
● RoHS, REACH compliant, Halogen free

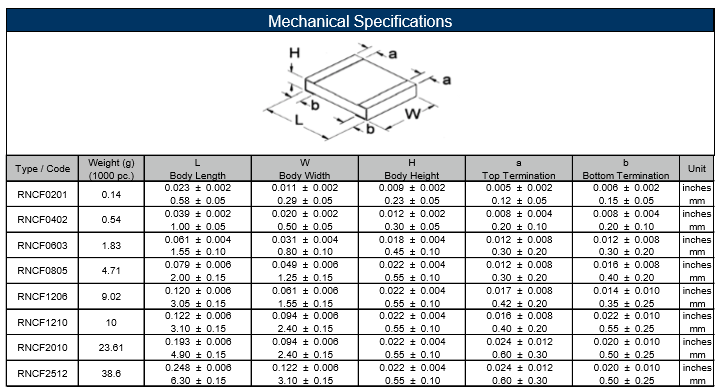

構造・尺寸

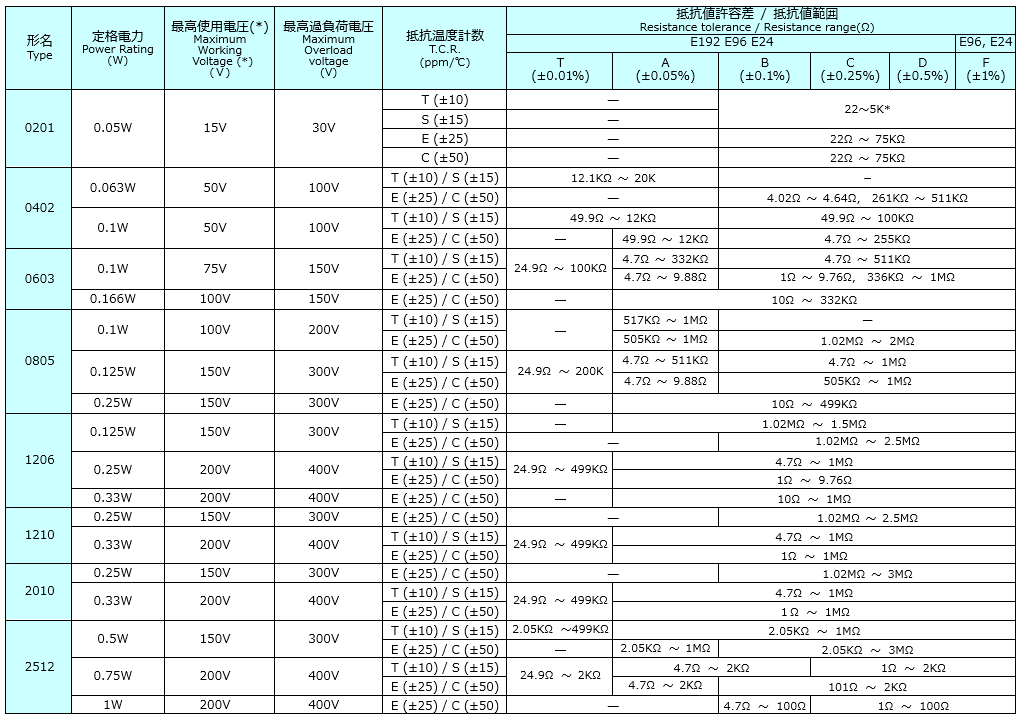

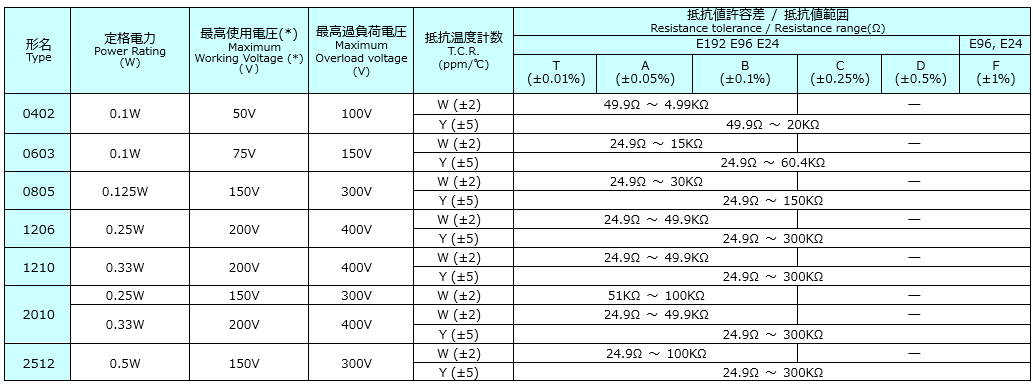

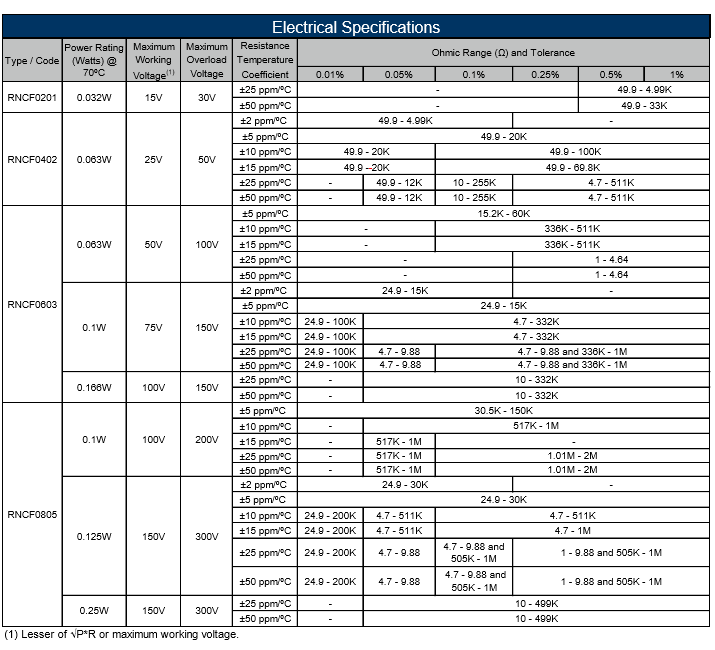

主要特性

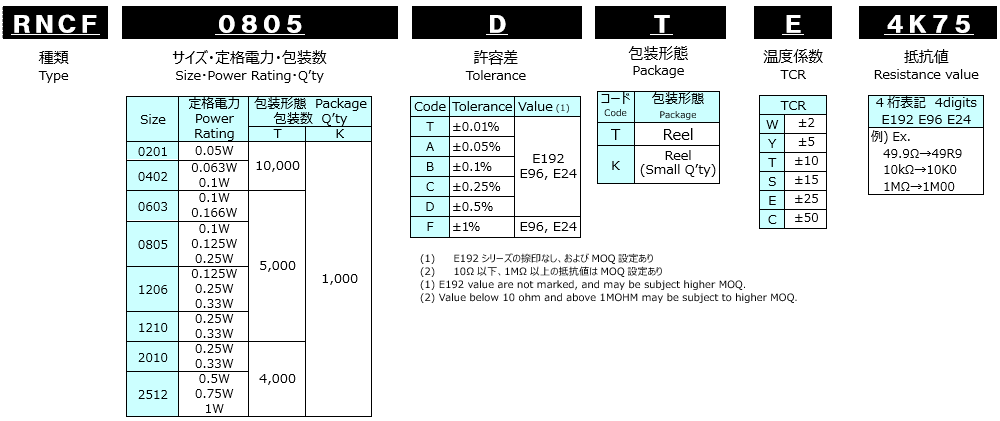

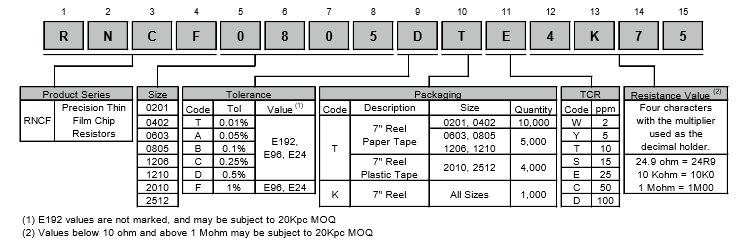

型名

負載功率曲線

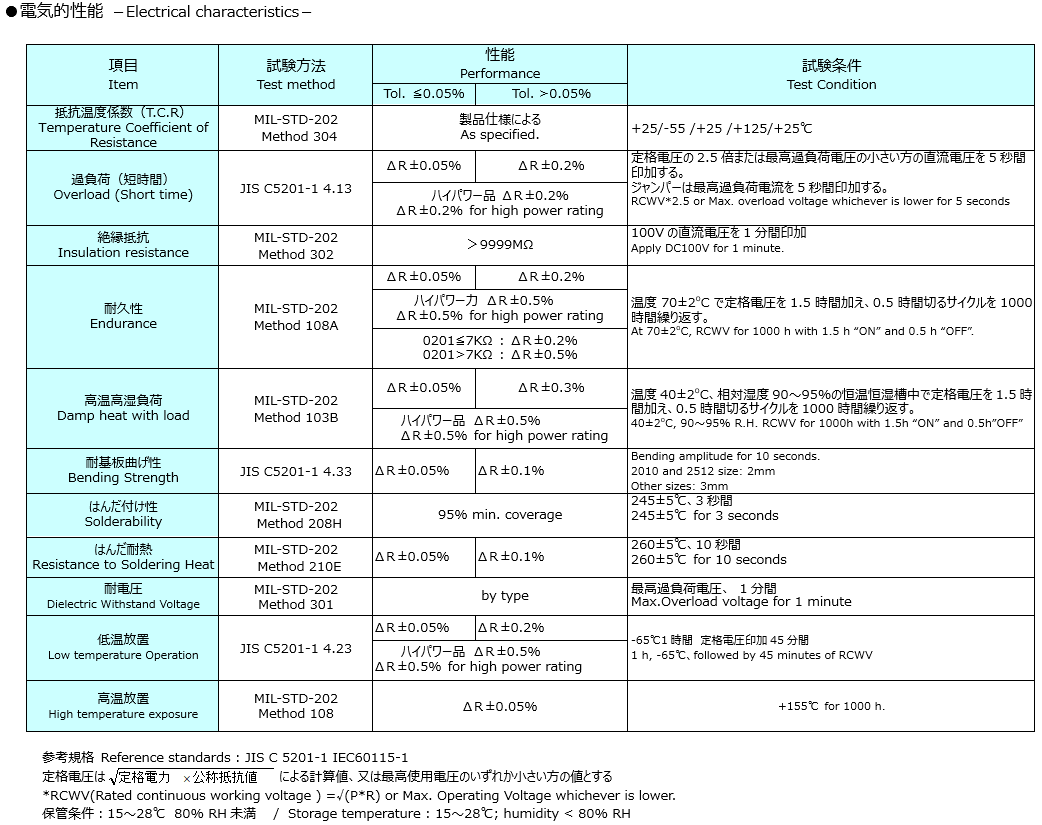

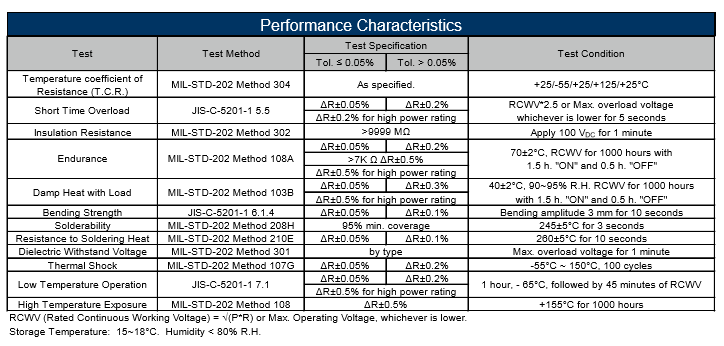

Characteristics
