product

RN/RNM Metal Film Fixed Resistors

用途

● Industrial equipment.
● Communication/Instrumentation equipment.

特徴

● High precision and high reliability
Metal film resistors.
● Wide variation of resistance tolerance
±5%~±0.1% and TCR±25ppm/℃~±100ppm/℃.
● Possible to produce custom spec
for RN14 type (Resistance value, TCR, etc.).
● RoHS compliant product.

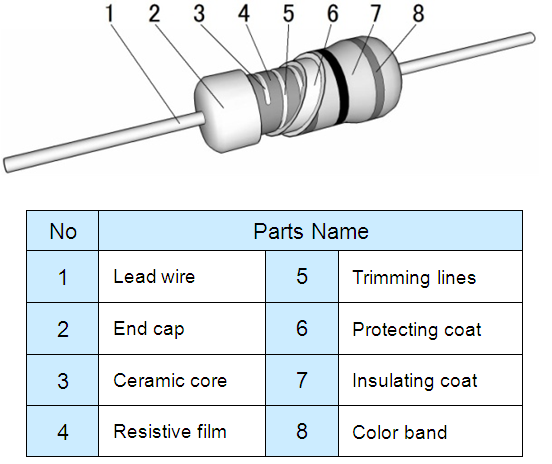

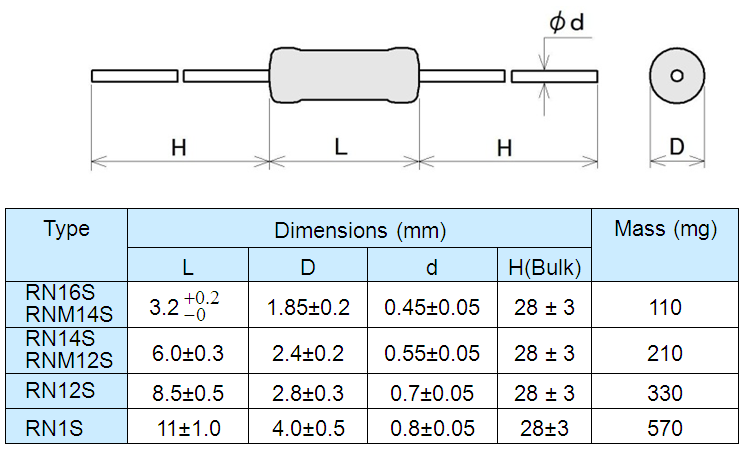

構造・尺寸

20150724 19



20150724 20

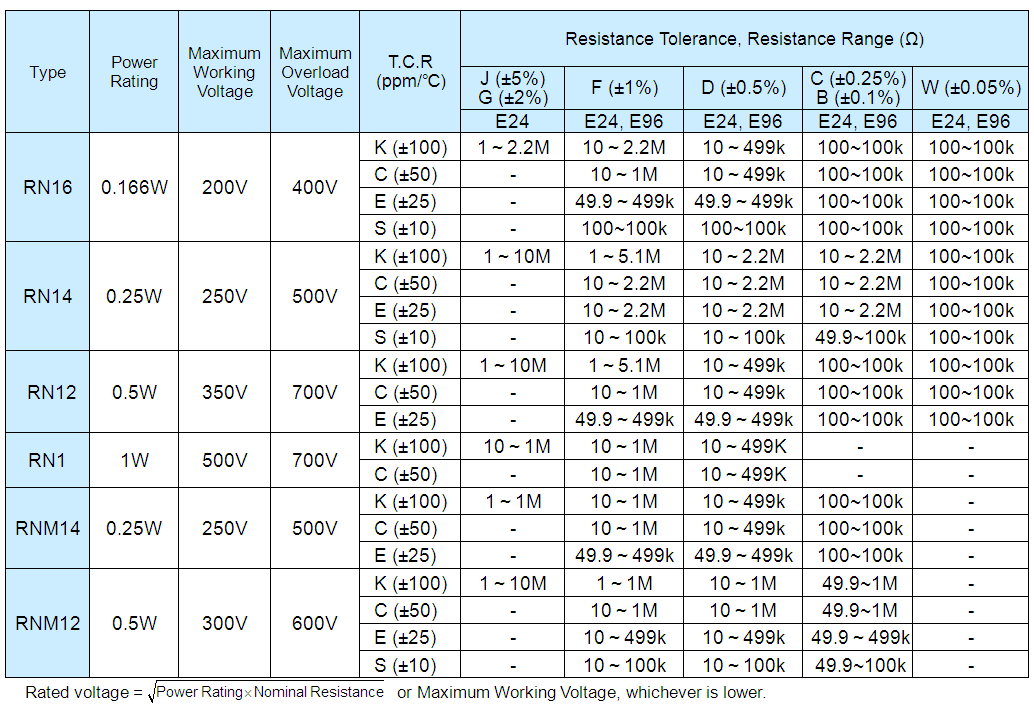

主要特性

20150724 24

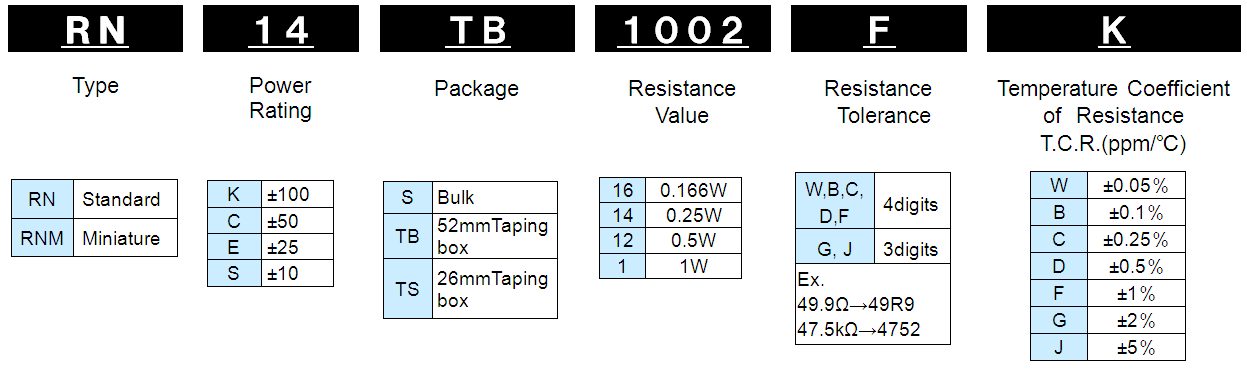

型名

20150724 21

負載功率曲線

20150724 22

表面温度上昇

20150724 23

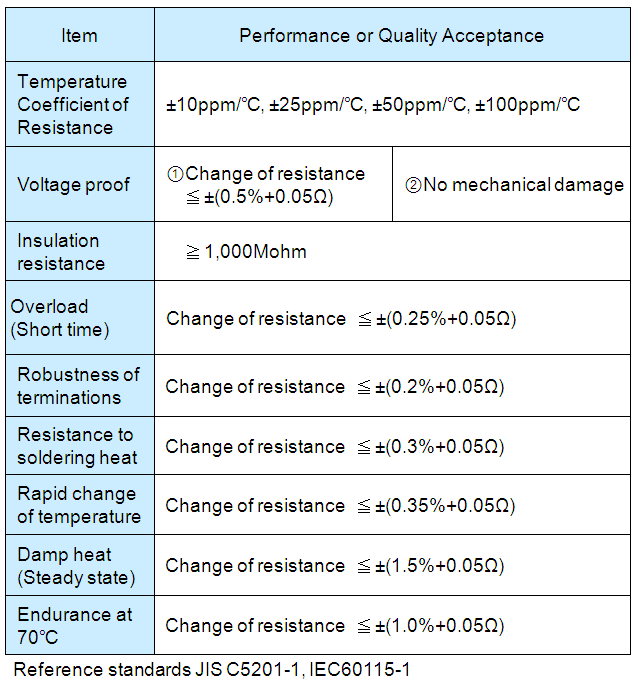

Characteristics

20150724 25
