HCS High Current Shunt Resistors

用途

● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter,
Battery pack, Charger
● PDA and cell phone
● Power management application
● Power module
● Frequency converters
● Current sensor for power hybrid sources
● High current handling for automotive engine controls and power management

特徴

● Available in up to 10W power rating.
● Resistance value from 0.2mΩ~5 mΩ.
● Current handling up to 224A in 5930 size.
● Excellent long term stability

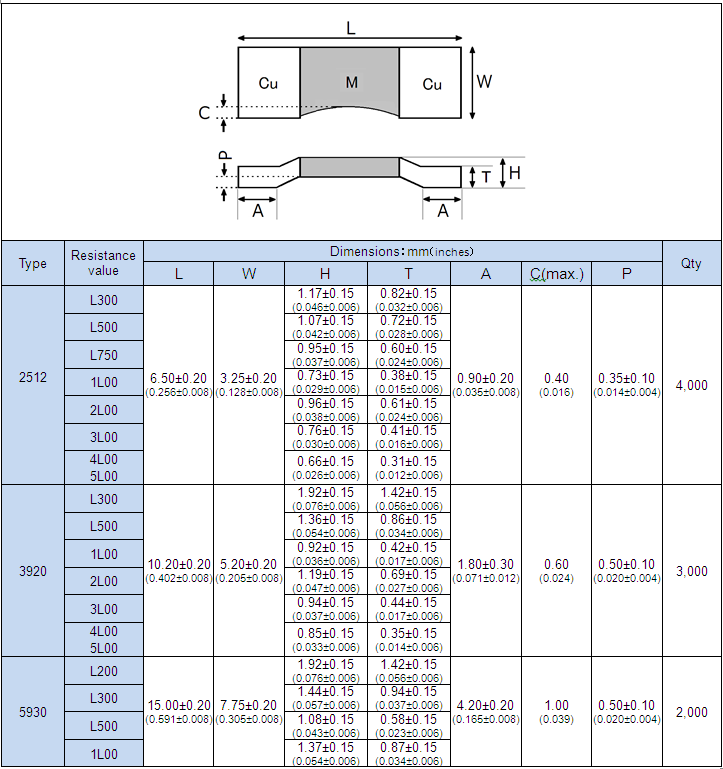

構造・尺寸

20150827 02

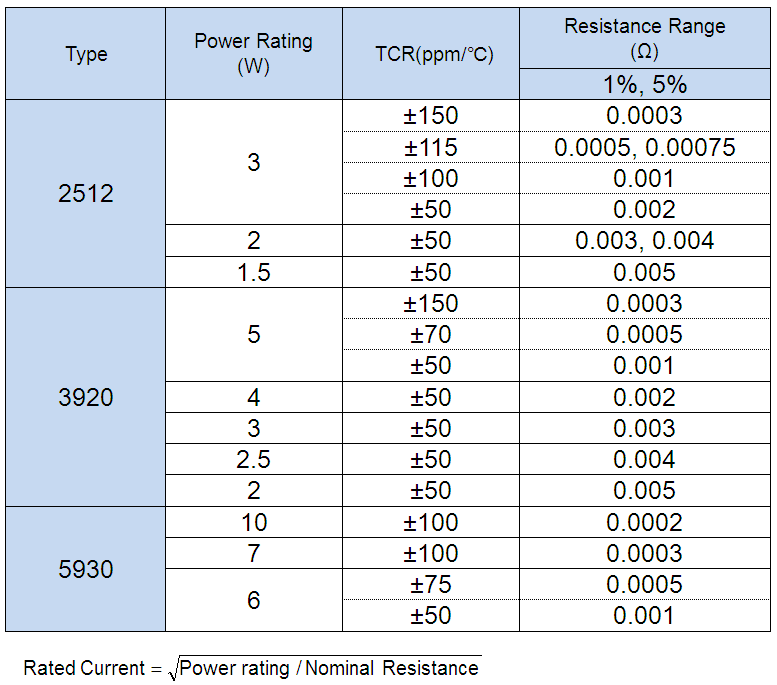

主要特性

20150827 03

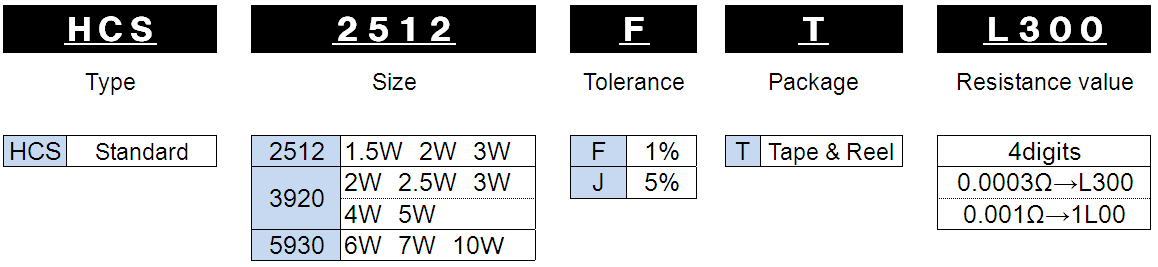

型名

20150827 04

負載功率曲線

20150827 05

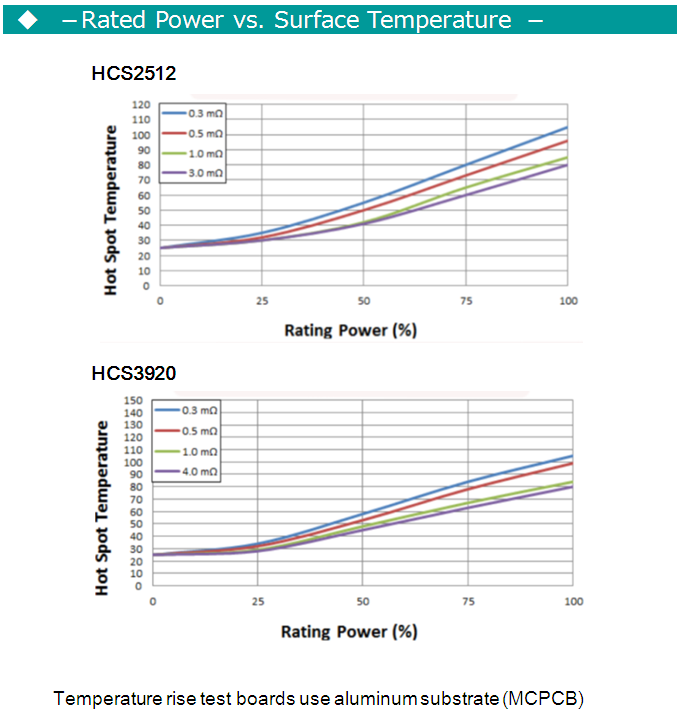

表面温度上昇

20150827 06





20150827 07

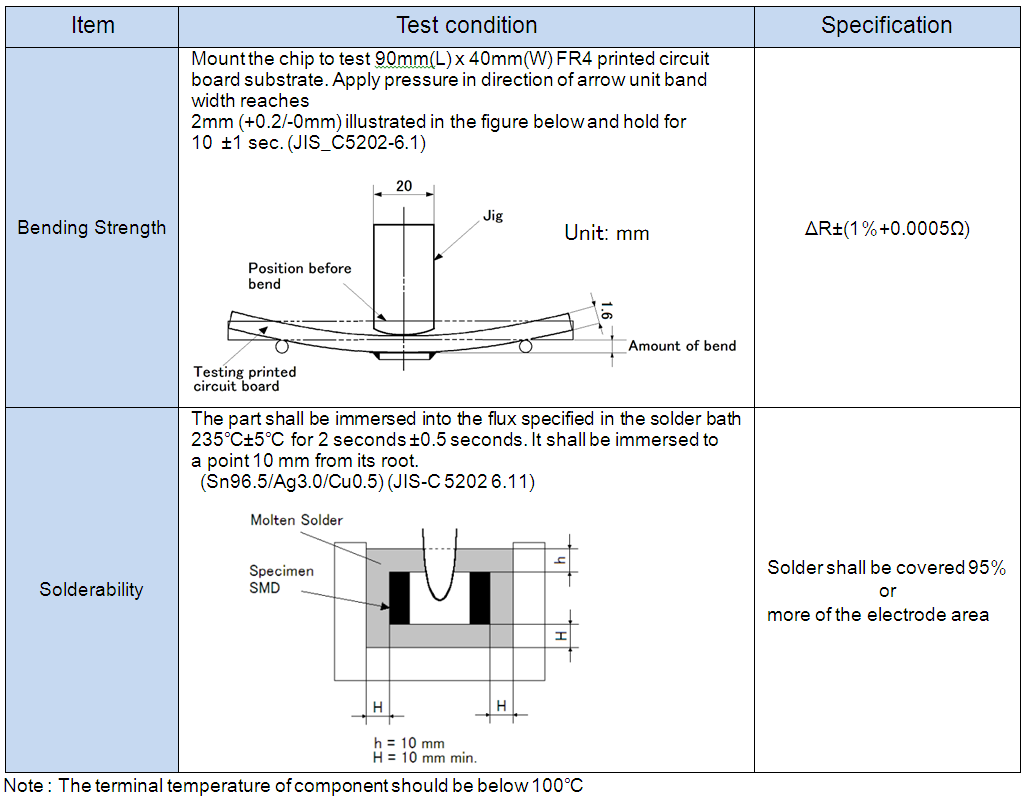

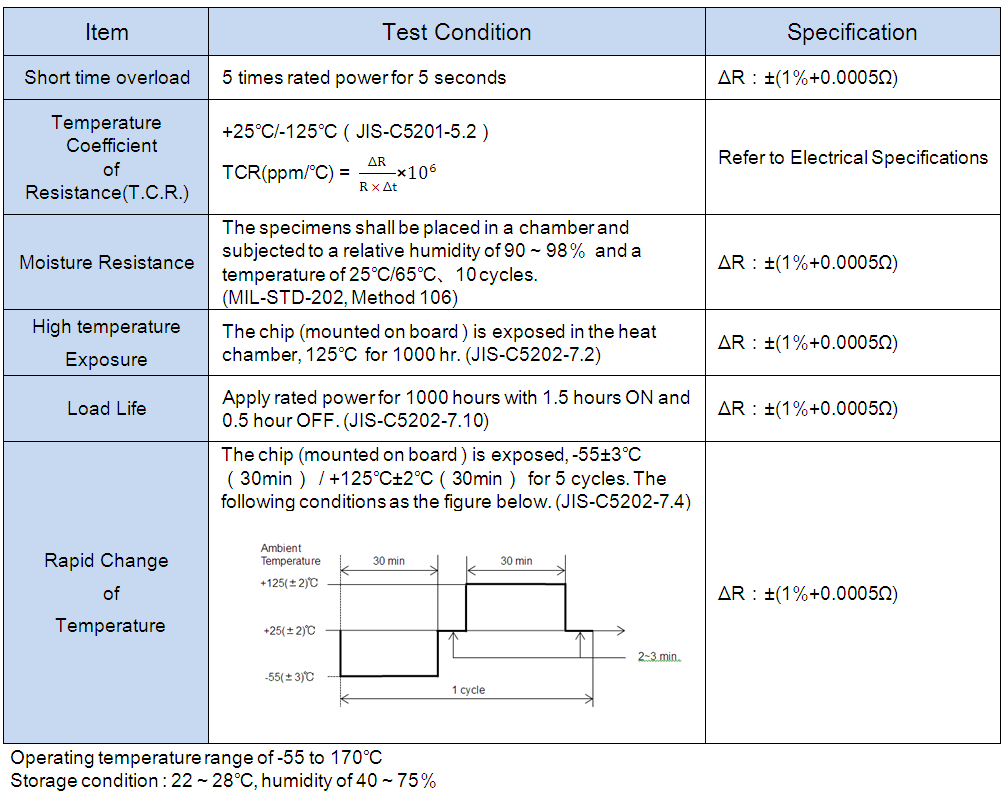

Characteristics

20150827 08

20150827 09
