CRS Surge Current Thick Film Chip Resistors
用途
● Power supply, vehicle installation, inverter, Snubber circuit.
特徴
● CRS series consist of 6 types from 0603 to 2512 inch.
● High reliability with triple layers of electrodes & metal graze thick film resistive element.
● Suitable for both flow & reflow soldering.
● Taping is available for automatic pick & place machines.

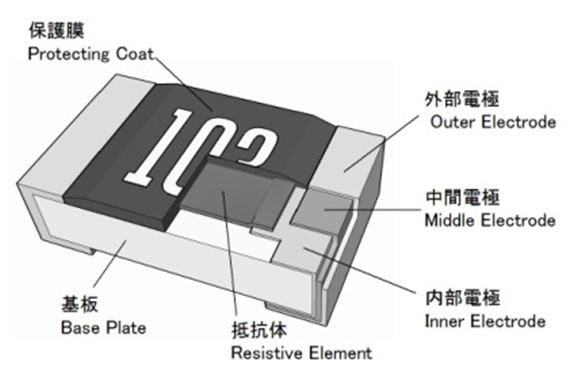

構造・尺寸
![20150828 44](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-44.png)
![](https://www.akaneohm.com/wp-content/uploads/2015/08/20220111-CRS-01.png)
主要特性
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CRS-20210617-002.png)
型名
![](https://www.akaneohm.com/wp-content/uploads/2014/07/CRS-20210617-003.png)
負載功率曲線
![20150828 49](https://www.akaneohm.com/wp-content/uploads/2015/08/20150828-49.png)
Characteristics
![](https://www.akaneohm.com/wp-content/uploads/2015/08/2021-06-16-002.png)
