APS High Current Shunt Resistors (NEW)
用途
● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter, Battery pack, Charger
● Power management application
● Power module
● Frequency converters
● Current sensor
● High current handling for automotive engine controls and power management
特徴
● Available in up to 15W power rating
● Resistance value from 0.1mΩ~5 mΩ
● Excellent long-term stability
● AEC-Q200 Qualified
● RoHS, REACH compliant, Halogen free

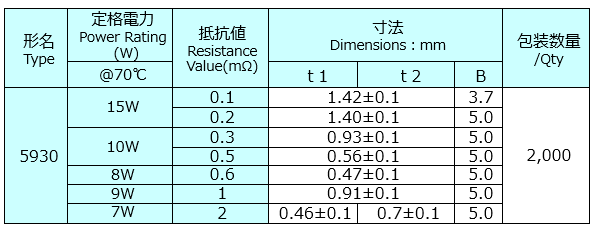

構造・尺寸

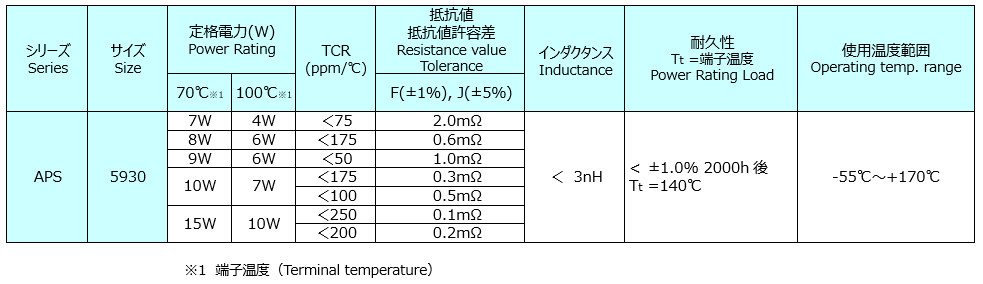

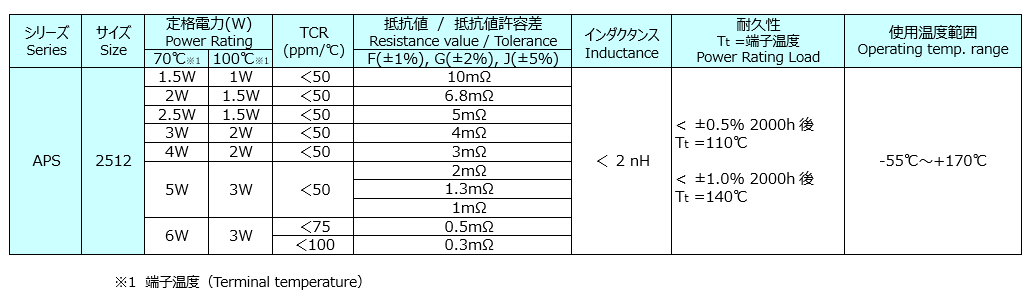

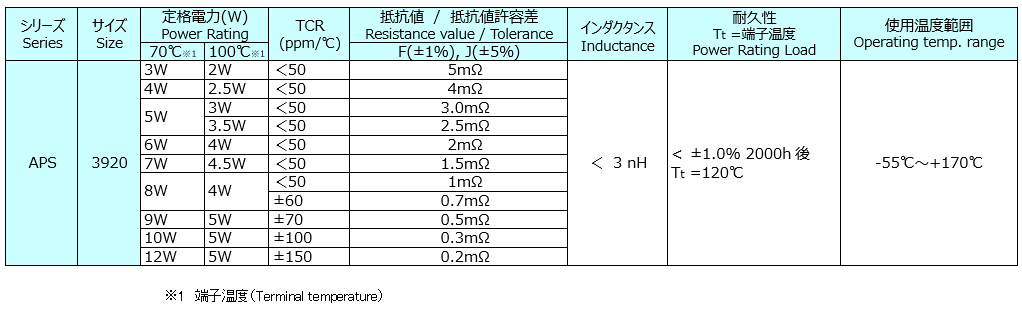

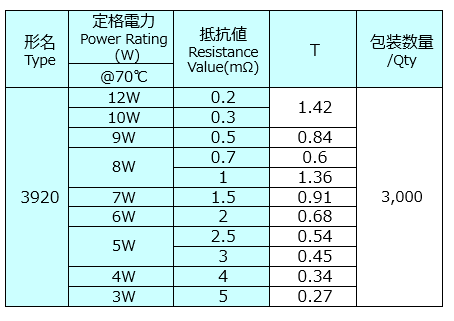

主要特性

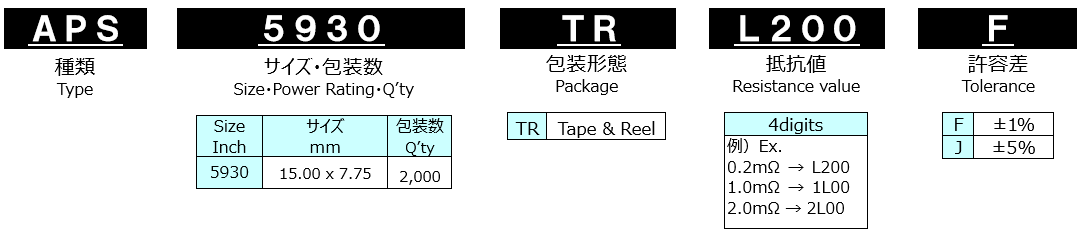

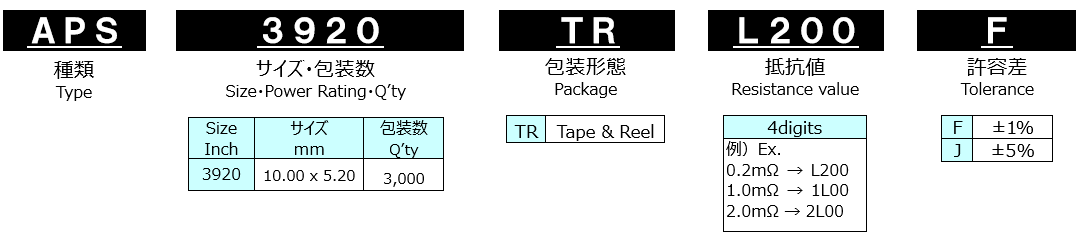

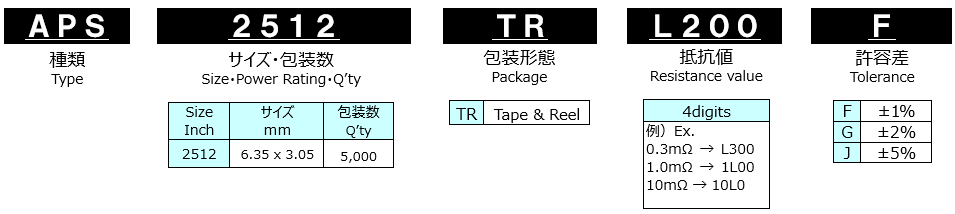

型名

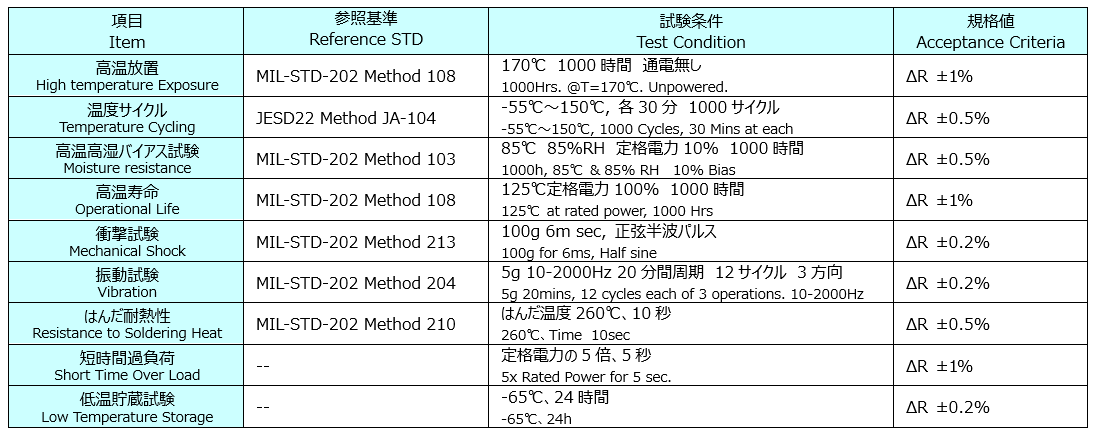

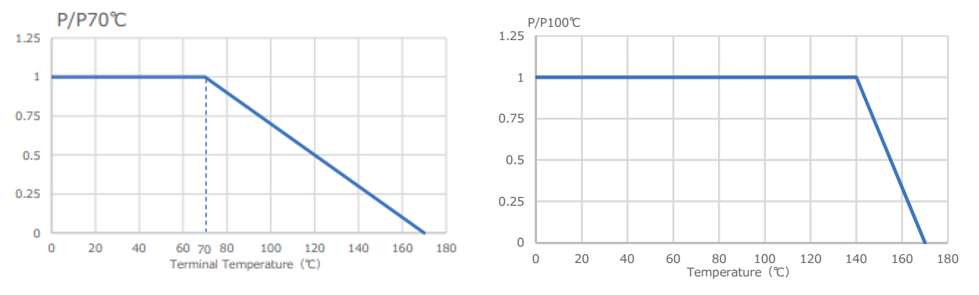

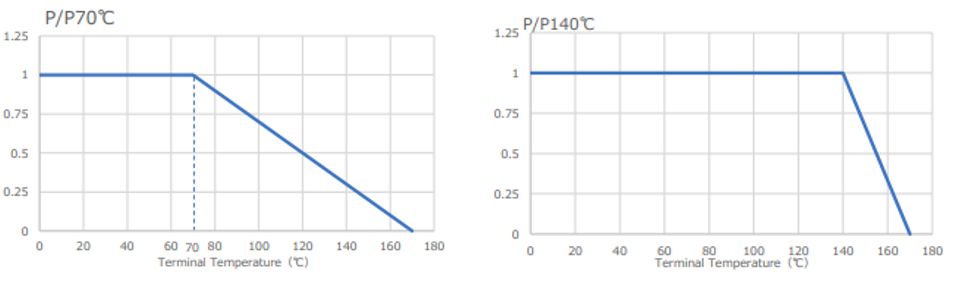

Characteristics
