HCS High Current Shunt Resistors

Application

● Switching power supply
● Voltage regulation module
● DC-DC converter, Adapter, Battery pack, Charger
● PDA and cell phone
● Power management application
● Power module
● Frequency converters
● Current sensor for power hybrid sources
● High current handling for automotive engine controls and power management

Features

● Available in up to 10W power rating
● Resistance value from 0.2mΩ~5 mΩ
● Current handling up to 224A in 5930 size
● Excellent long term stability
● AEC-Q200 Qualified
● RoHS, REACH compliant, Halogen free

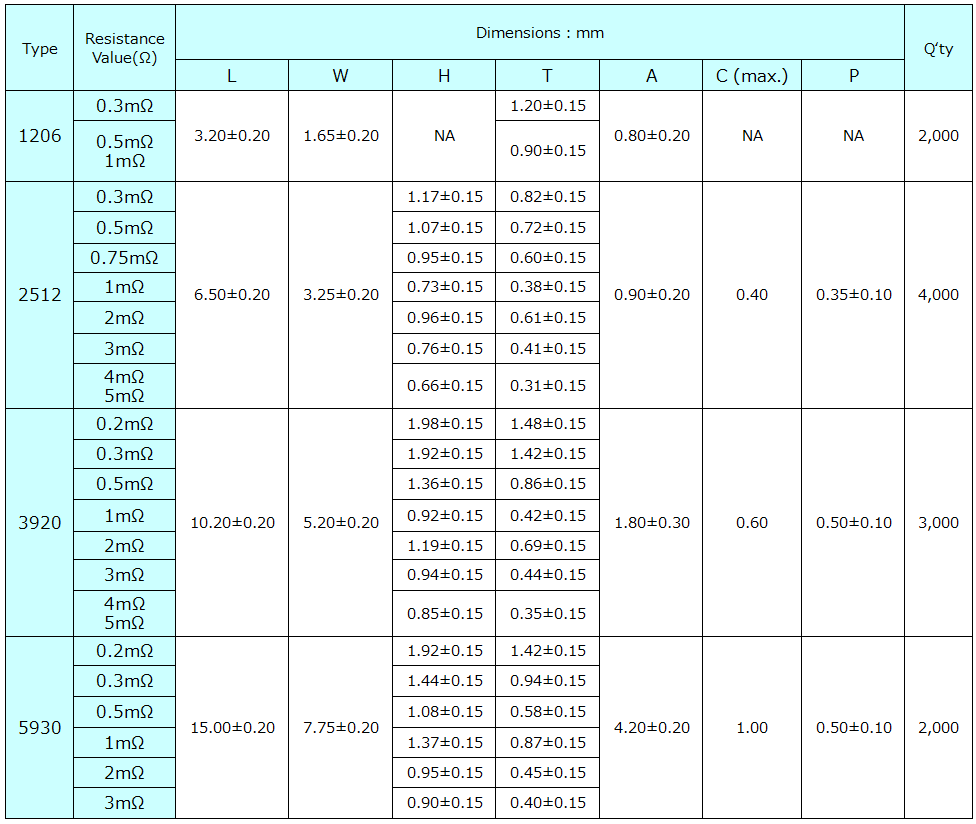

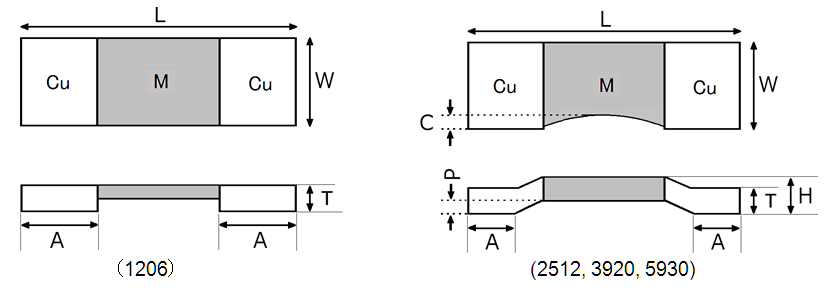

Construction・Dimensions

20160909-001

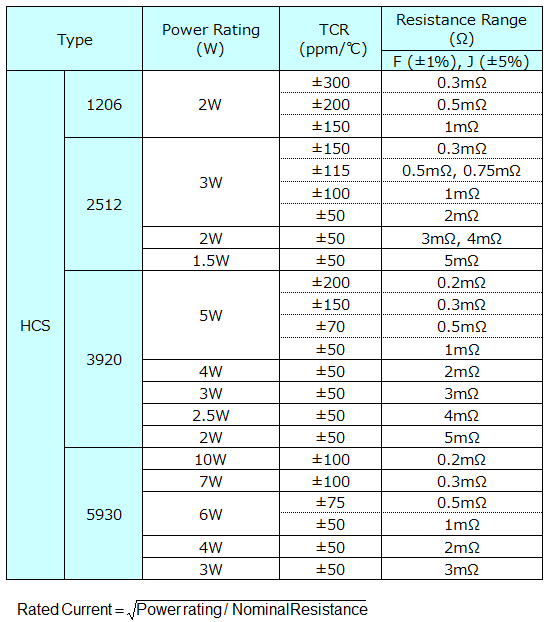

Specifications

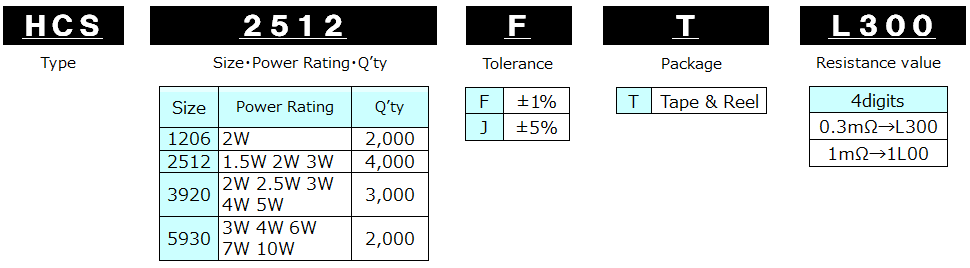

How to Code

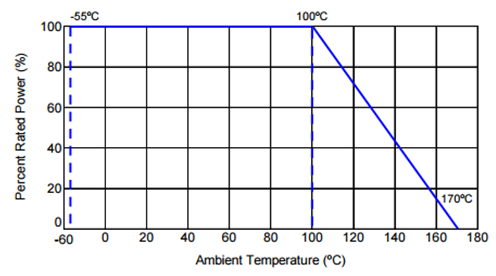

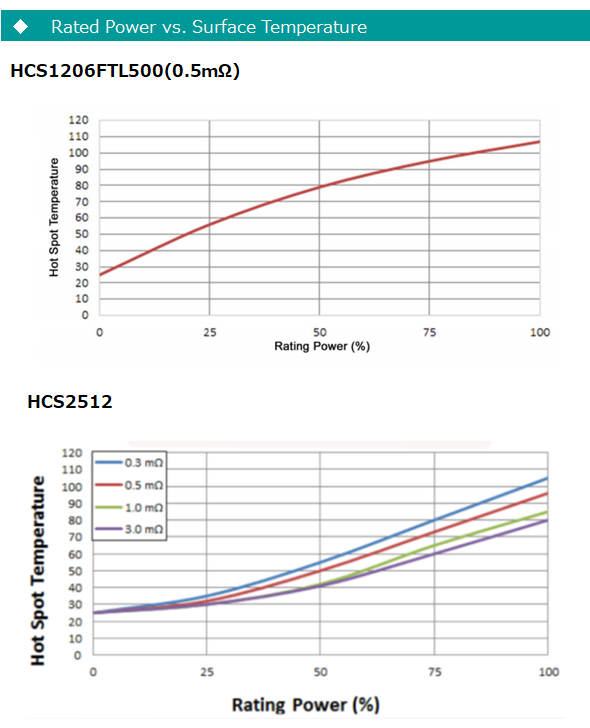

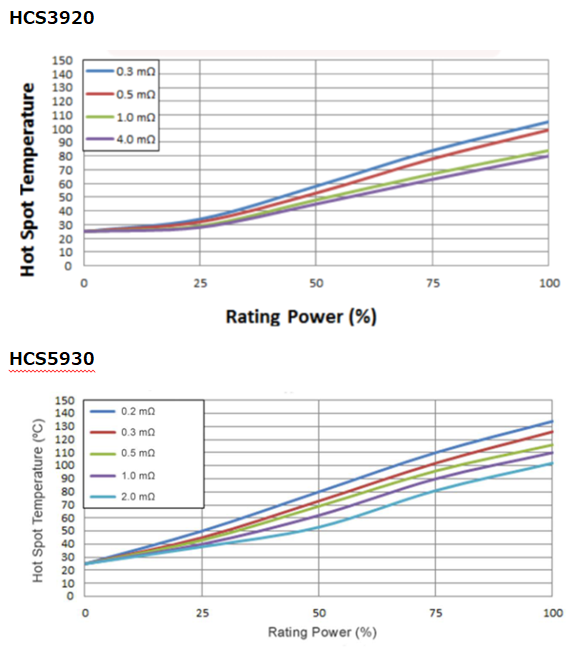

Power Derating Curve

20150827 05

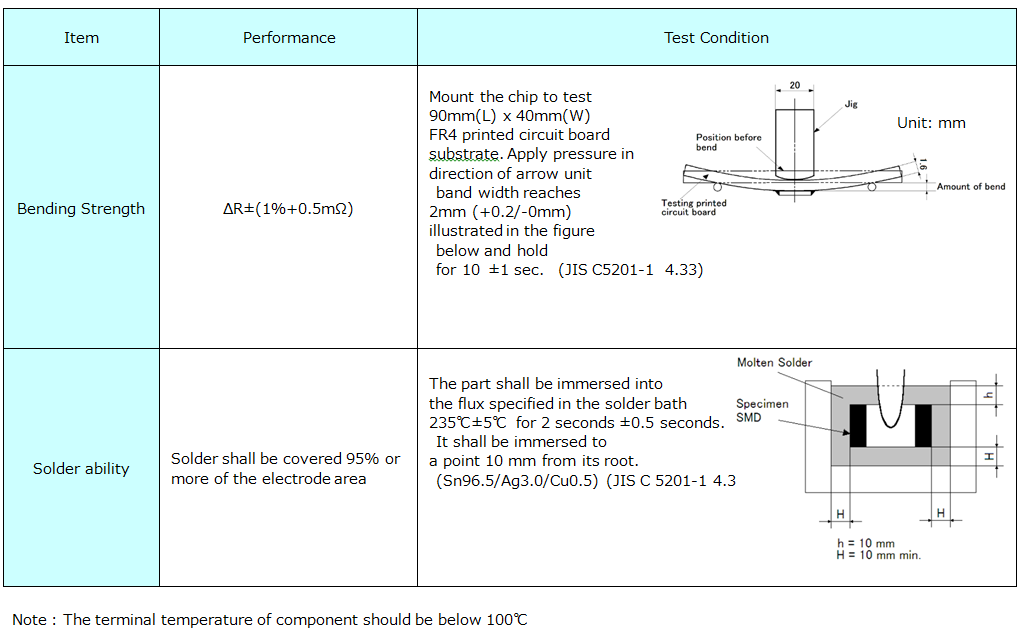

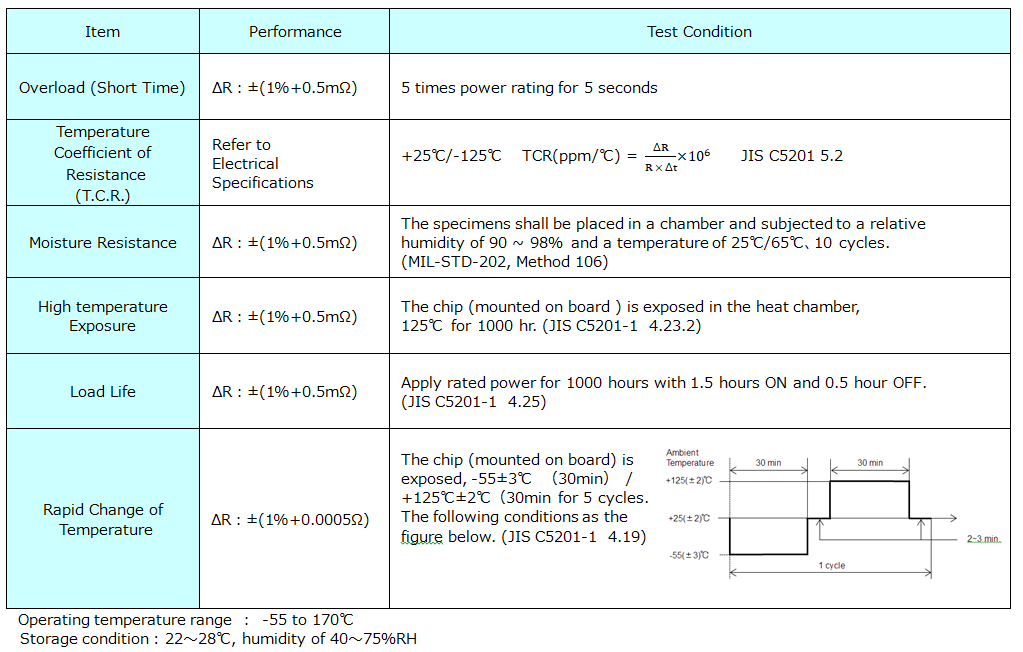

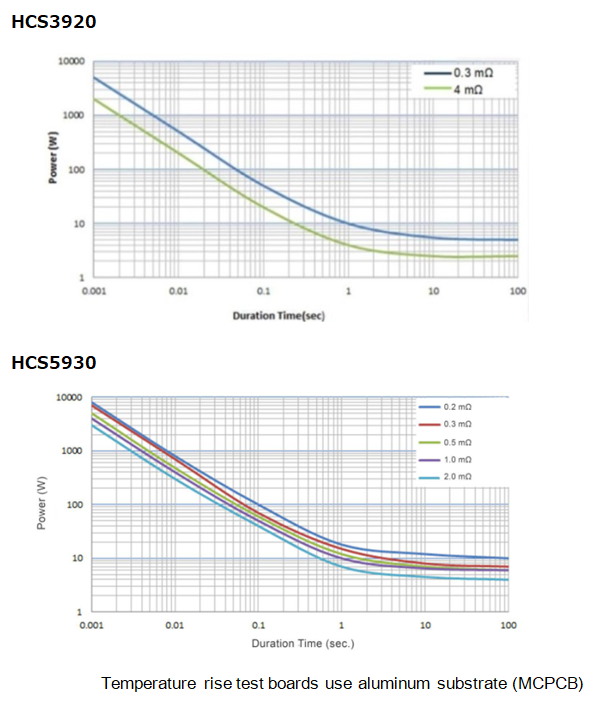

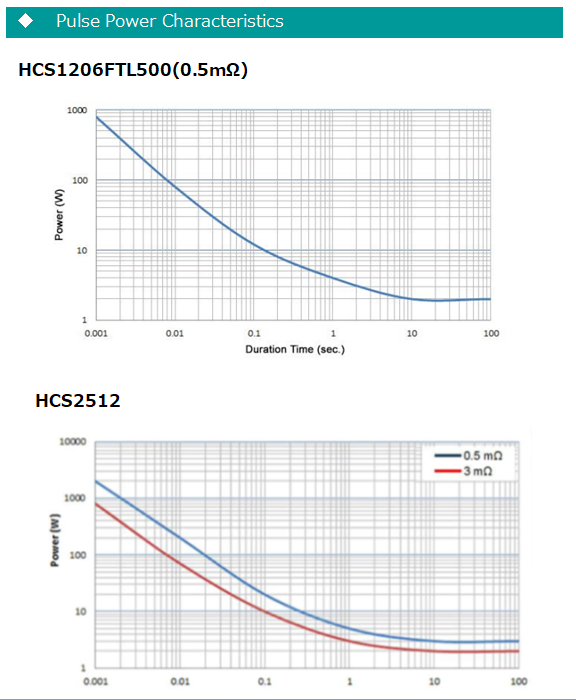

Characteristics

Caution
